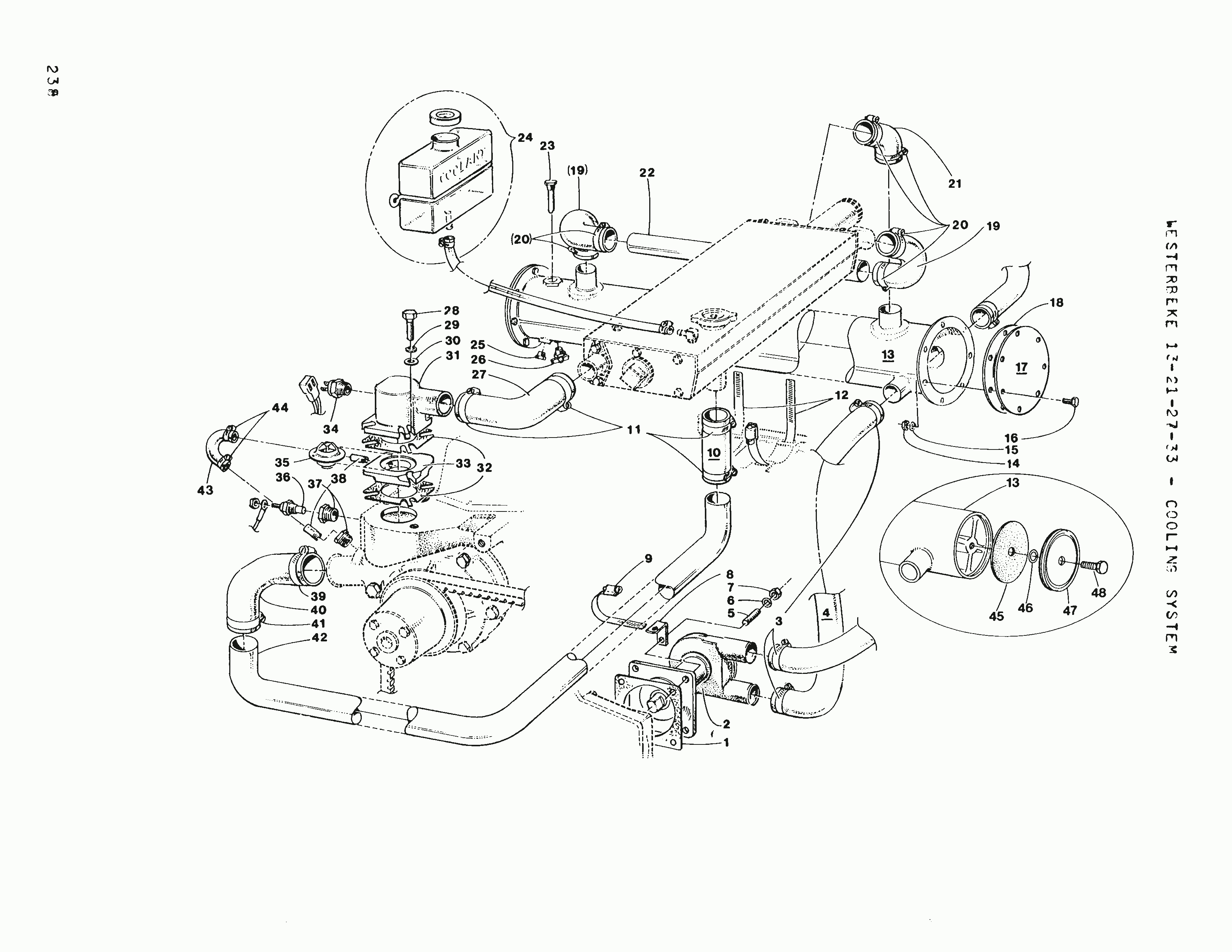

13-21-27-33 - COOLING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GASKET

Part #: 030326
$2.80
QTY:

Sold By: EA

2

On Diagram

PUMP

Part #: 024143

This part is replaced with part number 037431. Before you order this part please read these two documents: Parts Bulletin 2004-1 and Pump Details

Price not found
QTY:

Sold By: EA

3

On Diagram

CLAMP

Part #: 011386
$3.00
QTY:

Sold By: EA

4

On Diagram

HOSE 7/8

Part #: 030166
$65.50
QTY:

Sold By: EA

5

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

7

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

8

On Diagram

BRACKET

Part #: 024117
$5.00
QTY:

Sold By: EA

9

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

10-1

On Diagram

HOSE

Part #: 024334
$23.80
QTY:

Sold By: EA

10-2

On Diagram

HOSE 1-3/8 IN WIRE INSERTED

Part #: 024974
$2.00
QTY:

Sold By: IN

11

On Diagram

CLAMP

Part #: 021878
$3.40
QTY:

Sold By: EA

12-1

On Diagram

CLAMP

Part #: 011505
$3.10
QTY:

Sold By: EA

12-2

On Diagram

CLAMP

Part #: 033754
$23.90
QTY:

Sold By: EA

13

On Diagram

EXCHANGER

Part #: 024774
$1,002.30
QTY:

Sold By: EA

14

On Diagram

NUT 1/4-20 NC

Part #: 031750
$0.40
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

16

On Diagram

CAPSCREW 1/4NCx5/8

Part #: 031502
$2.20
QTY:

Sold By: EA

17

On Diagram

CAP

Part #: 031290

This part is no longer available.

$311.70
QTY:

Sold By: EA

18

On Diagram

GASKET

Part #: 031291
$5.40
QTY:

Sold By: EA

19-1

On Diagram

HOSE

Part #: 024305
$25.30
QTY:

Sold By: EA

19-2

On Diagram

HOSE

Part #: 024304
$27.60
QTY:

Sold By: EA

20

On Diagram

CLAMP

Part #: 021878
$3.40
QTY:

Sold By: EA

21

On Diagram

HOSE 1-3/8 IN WIRE INSERTED

Part #: 024974
$2.00
QTY:

Sold By: IN

22

On Diagram

TUBE

Part #: 032229
$92.80
QTY:

Sold By: EA

23

On Diagram

ZINC

Part #: 011885
$14.60
QTY:

Sold By: EA

24

On Diagram

TANK KIT

Part #: 024977
$68.60
QTY:

Sold By: KT

25

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

26

On Diagram

PETCOCK

Part #: 011471
$13.80
QTY:

Sold By: EA

27

On Diagram

HOSE

Part #: 024334
$23.80
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M 8x45 DIN 912

Part #: 031259
$1.70
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

30

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

31

On Diagram

HOUSING

Part #: 024258
$87.80
QTY:

Sold By: EA

32-1

On Diagram

GASKET

Part #: 024323
$2.70
QTY:

Sold By: EA

32-2

On Diagram

GASKET

Part #: 024323
$2.70
QTY:

Sold By: EA

33

On Diagram

SPACER

Part #: 024846
$124.90
QTY:

Sold By: EA

34-1

On Diagram

SWITCH

Part #: 030125

This part is no longer available. Use temperature switch kit part number 056519.

Price not found
QTY:

Sold By: EA

34-2

On Diagram

BUSHING

Part #: 022131
$5.80
QTY:

Sold By: EA

34-3

On Diagram

SWITCH

Part #: 030096

This part is replaced with part number 039550

Price not found
QTY:

Sold By: EA

35

On Diagram

THERMOSTAT 180F

Part #: 024688
$15.60
QTY:

Sold By: EA

36

On Diagram

SENDER

Part #: 023571

This part is replaced with part number 035109

Price not found
QTY:

Sold By: each

37

On Diagram

BUSHING

Part #: 024848
$75.10
QTY:

Sold By: EA

38-1

On Diagram

NIPPLE 1/8 NPT x 3/8 HOSE

Part #: 016690
$10.00
QTY:

Sold By: EA

38-2

On Diagram

CONNECTOR

Part #: 033236
$71.80
QTY:

Sold By: EA

39-1

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

39-2

On Diagram

CLAMP

Part #: 021878
$3.40
QTY:

Sold By: EA

40-1

On Diagram

HOSE

Part #: 024917
$12.90
QTY:

Sold By: EA

40-2

On Diagram

HOSE

Part #: 024305
$25.30
QTY:

Sold By: EA

41

On Diagram

CLAMP

Part #: 021878
$3.40
QTY:

Sold By: EA

42-1

On Diagram

TUBE

Part #: 030014

This part is no longer available.

$312.30
QTY:

Sold By: EA

42-2

On Diagram

TUBE

Part #: 024796

This part is no longer available.

$553.70
QTY:

Sold By: EA

43

On Diagram

HOSE

Part #: 024927

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$2.00
QTY:

Sold By: IN

44

On Diagram

CLAMP

Part #: 017298
$2.80
QTY:

Sold By: EA

45

On Diagram

GASKET

Part #: 022851
$3.40
QTY:

Sold By: EA

46

On Diagram

O-RING

Part #: 019321
$0.60
QTY:

Sold By: EA

47

On Diagram

CAP

Part #: 022850
$16.00
QTY:

Sold By: EA

48

On Diagram

CAPSCREW 3/8NCx3/4 BRASS OR SS

Part #: 022852
$4.30
QTY:

Sold By: EA
