The First Electronic Diesel Generators available NMEA 2000® Certified!

Committed to maintaining our position as industry leader, Westerbeke introduces D-NET™ diesel generators with digital electronics and the first NMEA 2000®-compliant databus communications.

Factory-fitted with a NMEA 2000® databus, Westerbeke's D-NET™ diesel generators provide boat builders and owners a much more efficient wiring option, since all certified NMEA 2000® components can connect to a single cable. This cable not only supplies power but integrates all onboard data communication through an array of certified controls, instruments, navigation systems and displays. D-NET™ generators reduce the need for running bundles of complex wiring throughout a boat, saving on cost and weight, while also simplifying and speeding installation of most electronic components.

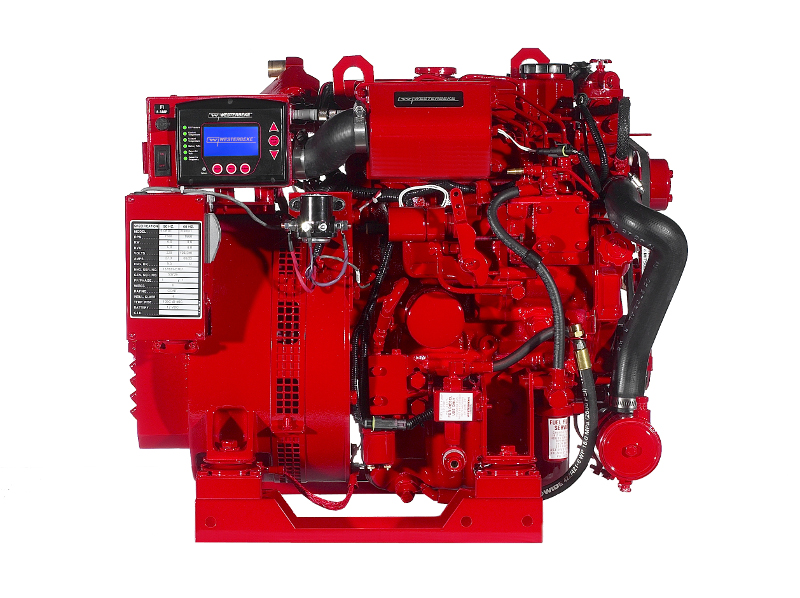

At the heart of our D-NET™ system are reliable, low-RPM, quiet and rugged Westerbeke diesel generators. Westerbeke's D-NET™ products range from 5.0 - 22.0 kW. All are offered with NMEA 2000® as their standard digital output bus.

These 3 & 4-cylinder marine diesel generators feature electronic governing to virtually eliminate "droop" when electrical loads are applied and employ a newly designed tuned air intake to enhance quiet operation. Additionally, the entire system can be mounted inside an optional stainless-steel base and framed enclosure with powder coated aluminum panels for the ultimate in "silent" marine generator power.

Dedication to Service

Westerbeke's D-NET™ marine generator performance is matched only by our customer service performance, powered by a worldwide Distributor and dealer network. Whether the issue is parts, warranty, or technical service, our distributors and dealers are dedicated to making sure that every customer is taken care of in the most efficient way possible. Wherever you are, odds are that friendly Westerbeke D-NET™ marine generator support is close by.

Express
 Parts Order
Owner
 Resources
Download
 Catalog!
Click here for older models.
Electronic Diesel Generators - Current Production Models
Model Hz kW RPM Engine
5.0 EDCA D-NET - 50 Hz 50 5.0 1500 3 Cylinder
5.5 EDCA D-NET 60 5.5 1800 3 Cylinder
5.7 EDTA D-NET - 50 Hz 50 5.7 1500 3 Cylinder
6.0 EDTA D-NET - 50 Hz 50 6.00 1500 3 Cylinder
7.5 EDTA D-NET - 50 Hz 50 7.50 1500 3 Cylinder
7.6 EDTA D-NET 60 7.6 1800 3 Cylinder
8.0 EDTA D-NET 60 8.00 1800 3 Cylinder
8.8 EDTA D-NET - 50 Hz 50 8.80 1500 3 Cylinder
10.0 EDTA D-NET 60 10.0 1800 3 Cylinder
10.3 EDTA D-NET - 50 Hz 50 10.30 1500 4 Cylinder
11.0 EDTA D-NET 60 11.00 1800 3 Cylinder
12.0 EDTA D-NET - 50 Hz 50 12.00 1500 4 Cylinder
12.5 EDTA D-NET 60 12.50 1800 4 Cylinder
15.0 EDTA D-NET 60 15.00 1800 4 Cylinder



Electronic Diesel Generators - Older Models
Model Hz kW RPM Engine
5.0 EDC D-NET - 50 Hz 50 5.00 1500 3 Cylinder
5.0 EDT D-NET - 50 Hz 50 5.00 1500 3 Cylinder
5.5 EDC D-NET 60 5.50 1800 3 Cylinder
5.7 EDT D-NET - 50 Hz 50 5.70 1500 3 Cylinder
6.0 EDT D-NET - 50 Hz 50 6.00 1500 3 Cylinder
6.5 EDT D-NET 60 6.50 1800 3 Cylinder
7.5 EDT D-NET - 50 Hz 50 7.50 1500 3 Cylinder
7.6 EDT D-NET 60 7.60 1800 3 Cylinder
8.0 EDT D-NET 60 8.00 1800 3 Cylinder
8.8 EDT D-NET - 50 Hz 50 8.80 1500 3 Cylinder
9.2 EDT D-NET - 50 Hz 50 9.20 1500 3 Cylinder
9.4 EDT D-NET - 50 Hz 50 9.40 1500 4 Cylinder
10.0 EDT D-NET 60 10.00 1800 3 Cylinder
10.4 EDT D-NET - 50 Hz 50 10.40 1500 3 Cylinder
11.0 EDT D-NET 60 11.00 1800 3 Cylinder
11.5 EDT D-NET 60 11.50 1800 3 Cylinder
12.0 EDT D-NET - 50 Hz 50 12.00 1500 4 Cylinder
12.5 EDT D-NET 60 12.50 1800 4 Cylinder
12.6 EDT D-NET 60 12.60 1800 3 Cylinder
13.5 EDE D-NET - 50 Hz 50 13.50 1500 3 Cylinder
15.0 EDT D-NET 60 15.00 1800 4 Cylinder
17.0 EDE D-NET - 50 Hz 50 17.00 1500 4 Cylinder
17.0 EDE D-NET - 60 Hz 60 17.00 1800 3 Cylinder
21.0 EDE D-NET - 50 Hz 50 21.00 1500 4 Cylinder
22.0 EDE D-NET 60 22.00 1800 4 Cylinder
23.5 EDE D-NET - 50 Hz 50 23.50 1500 4 Cylinder
23.5 EDEA D-NET - 50 Hz 50 23.50 1500 4 Cylinder
25.5 EDE D-NET 60 25.50 1800 4 Cylinder
26.0 EDE D-NET - 50 Hz 50 26.00 1500 4 Cylinder
26.0 EDEA D-NET - 50 Hz 50 26.00 1500 4 Cylinder
28.5 EDE D-NET 60 28.50 1800 4 Cylinder
28.5 EDEA D-NET 60 28.50 1800 4 Cylinder
33.0 EDE D-NET 60 33.00 1800 4 Cylinder
33.0 EDEA D-NET 60 33.00 1800 4 Cylinder
