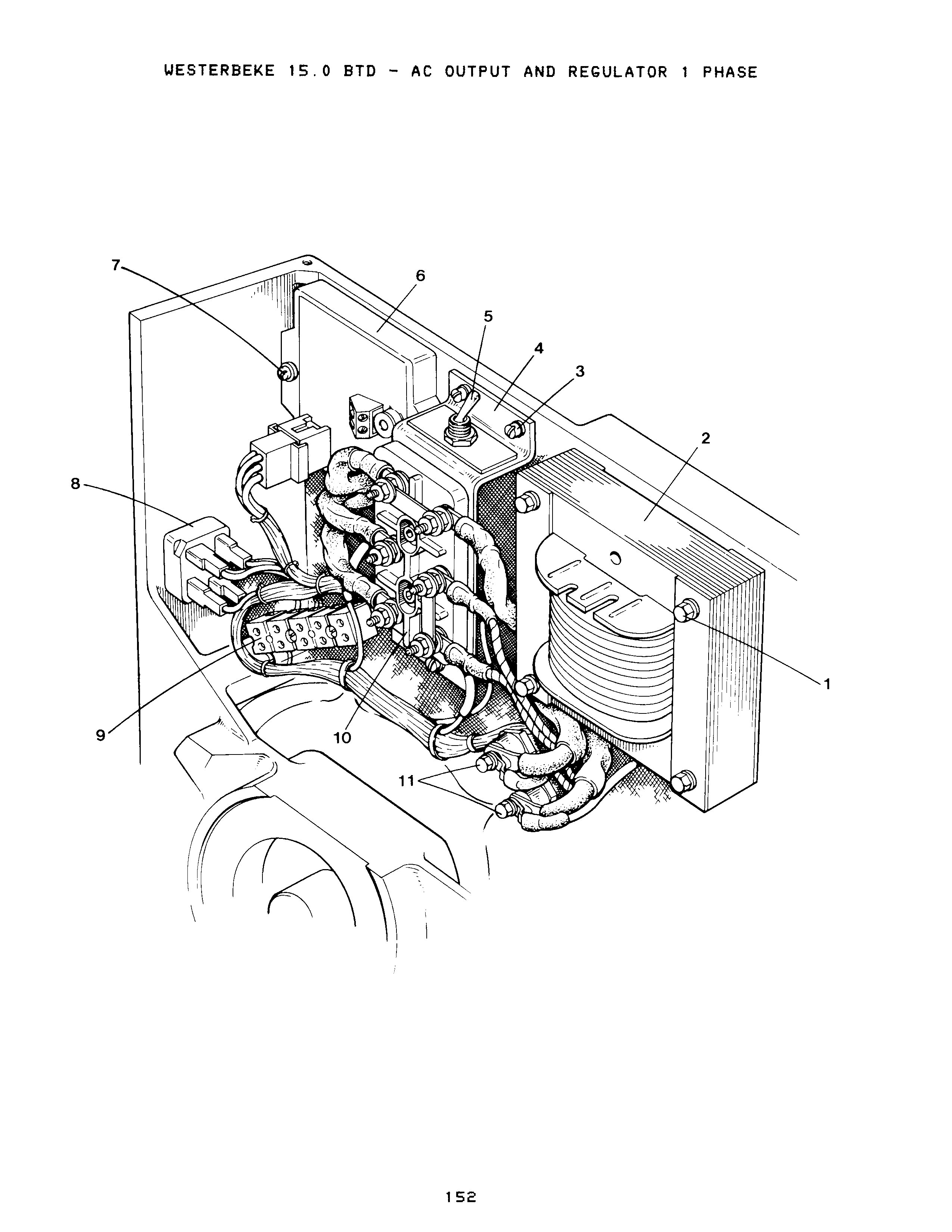

15.0 BTD - AC OUTPUT & REGULATOR 1 PH

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

CAPSCREW M 5x50 DIN 933

Part #: 031916

$0.90

QTY:

Sold By: EA

1-2

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914

$0.20

QTY:

Sold By: EA

1-3

On Diagram

WASHER M 5 DIN 125

Part #: 031781

$0.30

QTY:

Sold By: EA

2

On Diagram

TRANSFORMER

Part #: 037463

$1,765.80

QTY:

Sold By: EA

3-1

On Diagram

CAPSCREW 1/2NCx4-1/4

Part #: 031718

$9.00

QTY:

Sold By: EA

3-2

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914

$0.20

QTY:

Sold By: EA

4

On Diagram

BRACKET

Part #: 038345

$14.40

QTY:

Sold By: EA

5

On Diagram

SWITCH

Part #: 038346

$114.10

QTY:

Sold By: EA

6

On Diagram

REGULATOR

Part #: 034410

$2,241.40

QTY:

Sold By: EA

7-1

On Diagram

LOCKWASHER M 4 DIN 6797A

Part #: 031917

$0.20

QTY:

Sold By: EA

7-2

On Diagram

SCREW M 4 X 20 DIN 84A

Part #: 031934

$0.30

QTY:

Sold By: EA

8-1

On Diagram

RECTIFIER

Part #: 030809

This part is replaced with part number 043649

Price not found

QTY:

Sold By: EA

8-2

On Diagram

SCREW M 5 X 16 DIN 84A

Part #: 031931

$0.40

QTY:

Sold By: EA

8-3

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914

$0.20

QTY:

Sold By: EA

9

On Diagram

BLOCK

Part #: 038347

$131.90

QTY:

Sold By: EA

10-1

On Diagram

BLOCK

Part #: 038342

$158.20

QTY:

Sold By: EA

10-2

On Diagram

NUT M 6 BRASS

Part #: 038343

$0.60

QTY:

Sold By: EA

10-3

On Diagram

BAR

Part #: 038344

$4.20

QTY:

Sold By: EA

11

On Diagram

TERMINAL

Part #: 035980

$7.80

QTY:

Sold By: EA

12

On Diagram

CONNECTOR

Part #: 036737

$52.30

QTY:

Sold By: EA

13

On Diagram

LABEL

Part #: 036702

$4.50

QTY:

Sold By: EA

14-1

On Diagram

KIT

Part #: 038620

This part is no longer available.

$297.40

QTY:

Sold By: KT

14-2

On Diagram

KIT

Part #: 038619

This part is no longer available.

$254.60

QTY:

Sold By: KT
