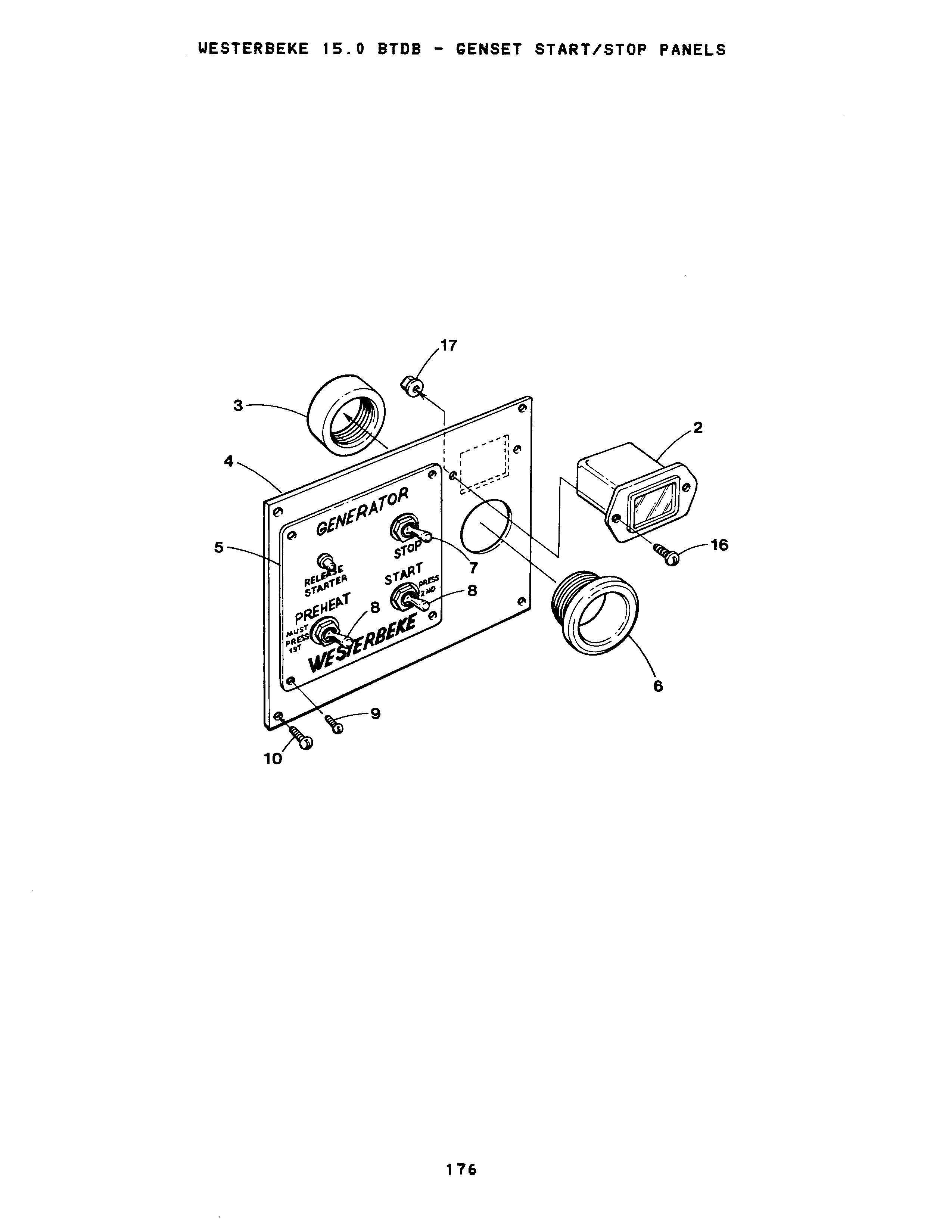

15.0 BTDB - GENSET START/STOP PANELS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

PANEL

Part #: 042448

$398.00

QTY:

Sold By: EA

1-2

On Diagram

PANEL

Part #: 042620

$469.00

QTY:

Sold By: EA

2

On Diagram

METER

Part #: 042388

$71.80

QTY:

Sold By: EA

3

On Diagram

BUSHING

Part #: 011812

$13.50

QTY:

Sold By: EA

4

On Diagram

PLATE

Part #: 034775

Price not found

QTY:

Sold By: each

5-1

On Diagram

PANEL

Part #: 024943

$158.70

QTY:

Sold By: EA

6

On Diagram

BUSHING

Part #: 011811

$25.80

QTY:

Sold By: EA

7

On Diagram

SWITCH

Part #: 024731

$40.30

QTY:

Sold By: EA

8

On Diagram

SWITCH

Part #: 024732

$46.50

QTY:

Sold By: EA

9

On Diagram

SCREW 6-32x1/4 SS BLACK FLAT

Part #: 039004

$0.40

QTY:

Sold By: EA

10

On Diagram

SCREW 8-32 X 3/8 TRUSS

Part #: 034421

$2.00

QTY:

Sold By: EA

11

On Diagram

LED

Part #: 032975

$10.00

QTY:

Sold By: EA

12-1

On Diagram

RESISTOR

Part #: 013723

$1.10

QTY:

Sold By: EA

12-2

On Diagram

RESISTOR 620 OHM

Part #: 042621

$0.40

QTY:

Sold By: EA

13

On Diagram

DIODE

Part #: 013724

$4.00

QTY:

Sold By: EA

14

On Diagram

HARNESS

Part #: 042447

$33.80

QTY:

Sold By: EA

15

On Diagram

DIAGRAM

Part #: 038220

Price not found

QTY:

Sold By: each

16

On Diagram

SCREW 6-32 X 3/8 SS

Part #: 031853

$0.20

QTY:

Sold By: EA

17

On Diagram

NUT 6-32 KEPS

Part #: 050234

$0.30

QTY:

Sold By: EA
