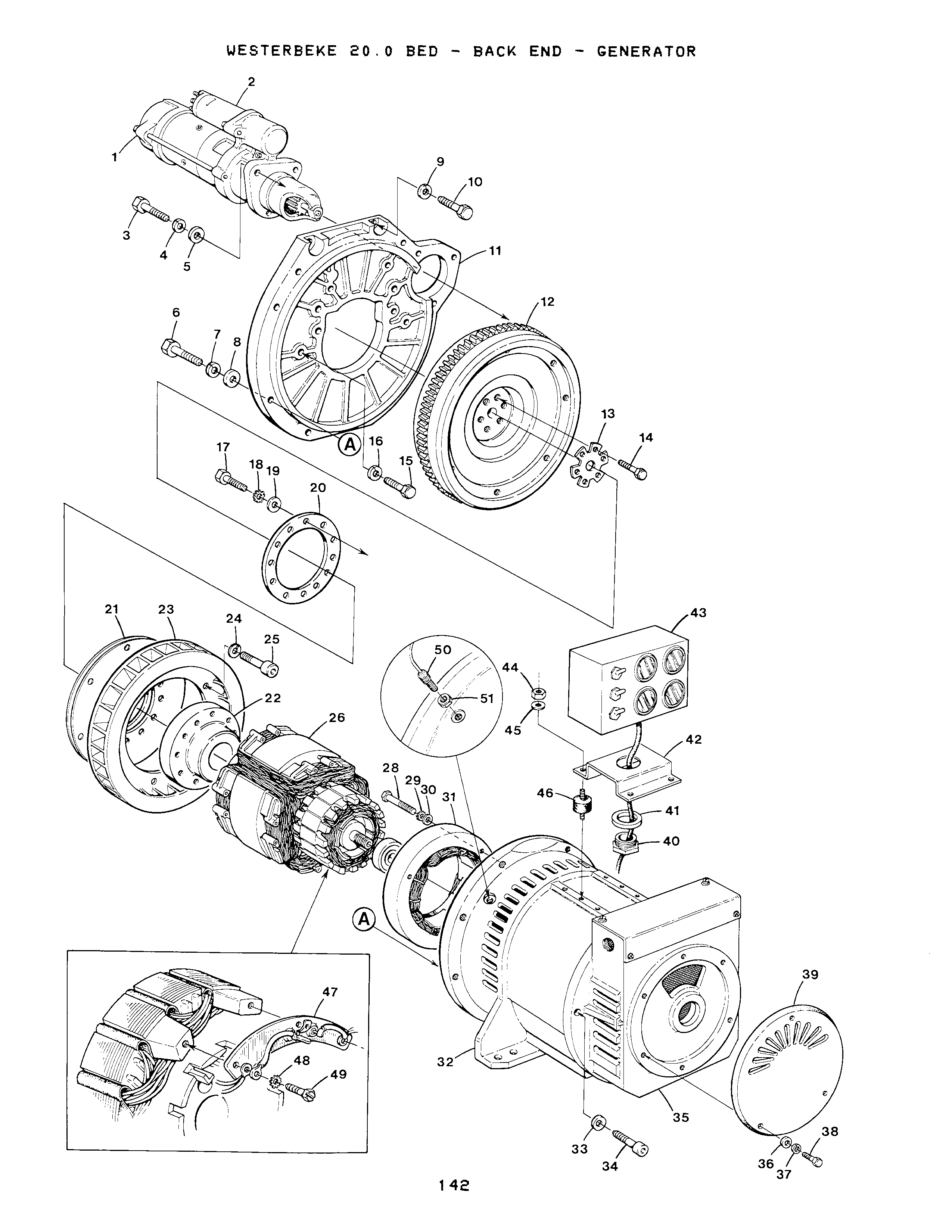

20.0 BED - BACK END - GENERATOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOTOR

Part #: 038384
$625.00
QTY:

Sold By: EA

2

On Diagram

SOLENOID

Part #: 039523
$112.50
QTY:

Sold By: EA

3

On Diagram

CAPSCREW M10x55 DIN 933

Part #: 013631
$2.30
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

5

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

6

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

8

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

9

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

10

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630
$0.50
QTY:

Sold By: EA

11

On Diagram

PLATE

Part #: 038427
$1,029.90
QTY:

Sold By: EA

12-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 038388
$1,835.90
QTY:

Sold By: EA

12-2

On Diagram

GEAR

Part #: 038392
$132.00
QTY:

Sold By: EA

13

On Diagram

TABWASHER

Part #: 031166
$67.60
QTY:

Sold By: EA

14

On Diagram

BOLT

Part #: 024411

This part is no longer available.

$7.30
QTY:

Sold By: EA

15

On Diagram

CAPSCREW 3/8NFx1-1/4

Part #: 031631
$0.70
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

17

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

19

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

20

On Diagram

PLATE

Part #: 039869
Price not found
QTY:

Sold By: EA

21

On Diagram

PLATE

Part #: 039785
$64.80
QTY:

Sold By: EA

22

On Diagram

HUB

Part #: 039668
$231.90
QTY:

Sold By: EA

23

On Diagram

FAN

Part #: 039637
$279.70
QTY:

Sold By: EA

24

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

25

On Diagram

CAPSCREW M10x25 DIN 912

Part #: 039318
$2.00
QTY:

Sold By: EA

26-1

On Diagram

ARMATURE BE 140 STACK 1 PHASE

Part #: 039636
$3,707.90
QTY:

Sold By: EA

26-2

On Diagram

ARMATURE BE 180 STACK 1 PHASE

Part #: 039784
$6,214.30
QTY:

Sold By: EA

27

On Diagram

BEARING

Part #: 039638
$181.90
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M 6x55 DIN 931

Part #: 030146
$1.20
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

30

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

31

On Diagram

STATOR

Part #: 039639
$2,496.10
QTY:

Sold By: EA

32-1

On Diagram

GENERATOR BE 1 Phase 140 STACK

Part #: 039630
$7,557.50
QTY:

Sold By: EA

32-2

On Diagram

STATOR BE 140 STACK 1 PHASE

Part #: 039665
$2,375.00
QTY:

Sold By: EA

32-3

On Diagram

STATOR ASSY INCL HSG BE 1 PH

Part #: 039642
$4,848.30
QTY:

Sold By: EA

32-4

On Diagram

GENERATOR BE 3 Phase 180 STACK

Part #: 039868
$8,236.20
QTY:

Sold By: EA

32-5

On Diagram

STATOR BE 180 STACK 3 PHASE

Part #: 039870
$3,936.20
QTY:

Sold By: EA

32-6

On Diagram

STATOR ASSY INCL HSG BE180 3PH

Part #: 039873
$6,160.00
QTY:

Sold By: EA

33

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

34

On Diagram

CAPSCREW M10x35 DIN 912

Part #: 039871
$1.10
QTY:

Sold By: EA

35

On Diagram

HOUSING - Generator End

Part #: 039669
$1,235.60
QTY:

Sold By: EA

36

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

37

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

38

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

39

On Diagram

COVER

Part #: 039074
$76.30
QTY:

Sold By: EA

40

On Diagram

NIPPLE

Part #: 036464
$20.70
QTY:

Sold By: EA

41

On Diagram

RING

Part #: 036492
$8.70
QTY:

Sold By: EA

42

On Diagram

BRACKET

Part #: 036730
$56.30
QTY:

Sold By: EA

44

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

45

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

46

On Diagram

ISOLATOR

Part #: 036652
$13.70
QTY:

Sold By: EA

47

On Diagram

DIODE ASSEMBLY

Part #: 039666
$141.30
QTY:

Sold By: EA

48

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

49

On Diagram

SCREW M 5 X 16 DIN 84A

Part #: 031931
$0.40
QTY:

Sold By: EA

50

On Diagram

SENSOR

Part #: 039172
$93.70
QTY:

Sold By: EA
