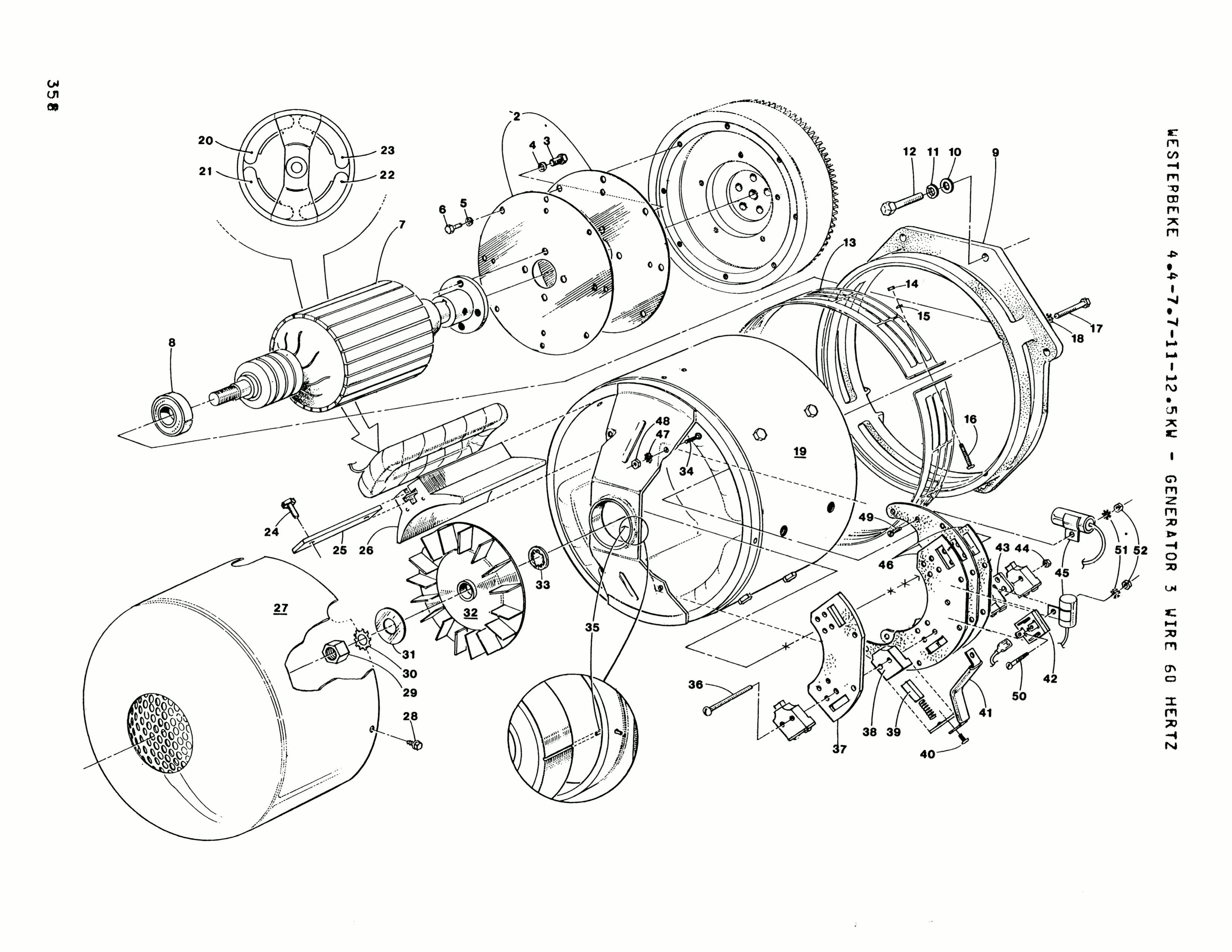

4.4-7.7-11-12.5KW - GEN 3 WIRE 60 HZ

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

GENERATOR

Part #: 024759

This part is no longer available.

Price not found
QTY:

Sold By: EA

1-2

On Diagram

GENERATOR

Part #: 024760

This part is replaced with part number 033396

Price not found
QTY:

Sold By: each

1-3

On Diagram

GENERATOR

Part #: 024761

This part is replaced with part number 030864

Price not found
QTY:

Sold By: each

2

On Diagram

PLATE

Part #: 030115

This part is no longer available.

$122.20
QTY:

Sold By: EA

3

On Diagram

CAPSCREW 7/16NCx3/4

Part #: 031653
$1.50
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

5

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

6

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

7-1

On Diagram

ARMATURE

Part #: 030826

This part is no longer available.

Price not found
QTY:

Sold By: EA

7-2

On Diagram

ARMATURE

Part #: 030825
Price not found
QTY:

Sold By: EA

7-3

On Diagram

ARMATURE

Part #: 030824

This part is no longer available.

Price not found
QTY:

Sold By: EA

7-4

On Diagram

ARMATURE

Part #: 032526

This part is no longer available.

Price not found
QTY:

Sold By: each

8

On Diagram

BEARING

Part #: 030822

This part is no longer available.

Price not found
QTY:

Sold By: EA

9

On Diagram

ADAPTER

Part #: 024620

This part is no longer available.

$675.90
QTY:

Sold By: EA

10

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

12

On Diagram

CAPSCREW 3/8NCx1-1/2

Part #: 031607
$0.70
QTY:

Sold By: EA

13

On Diagram

GUARD

Part #: 024788

This part is no longer available.

Price not found
QTY:

Sold By: EA

14

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

16

On Diagram

SCREW 10-32 X 1 SS

Part #: 031876
$0.70
QTY:

Sold By: EA

17

On Diagram

CAPSCREW 5/16NCx2-3/4

Part #: 031562
$1.40
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

19-1

On Diagram

HOUSING

Part #: 030834
Price not found
QTY:

Sold By: EA

19-2

On Diagram

HOUSING

Part #: 030821
Price not found
QTY:

Sold By: EA

19-3

On Diagram

FIELD COIL ASSEMBLY-12.5KW

Part #: 030810
$3,915.30
QTY:

Sold By: EA

20-1

On Diagram

FIELD COIL

Part #: 030835
$451.90
QTY:

Sold By: EA

20-2

On Diagram

FIELD COIL

Part #: 030815
$398.80
QTY:

Sold By: EA

20-3

On Diagram

COIL

Part #: 030830
$802.00
QTY:

Sold By: EA

21-1

On Diagram

FIELD COIL

Part #: 030836
$451.90
QTY:

Sold By: EA

21-2

On Diagram

FIELD COIL

Part #: 030816
$398.80
QTY:

Sold By: EA

21-3

On Diagram

COIL

Part #: 030831
Price not found
QTY:

Sold By: EA

22-1

On Diagram

FIELD COIL

Part #: 030837
$477.30
QTY:

Sold By: EA

22-2

On Diagram

FIELD COIL

Part #: 030817
$398.80
QTY:

Sold By: EA

22-3

On Diagram

COIL

Part #: 030832
$802.00
QTY:

Sold By: EA

23-1

On Diagram

FIELD COIL

Part #: 030838
$451.90
QTY:

Sold By: EA

23-2

On Diagram

FIELD COIL

Part #: 030818
$398.80
QTY:

Sold By: EA

23-3

On Diagram

COIL

Part #: 030833
Price not found
QTY:

Sold By: EA

26-1

On Diagram

SHOE

Part #: 030802

This part is no longer available.

$137.10
QTY:

Sold By: EA

26-2

On Diagram

SHOE

Part #: 030819
$216.70
QTY:

Sold By: EA

26-3

On Diagram

SHOE

Part #: 030807
$283.60
QTY:

Sold By: EA

27-1

On Diagram

COVER

Part #: 030813
$106.00
QTY:

Sold By: EA

27-2

On Diagram

COVER

Part #: 030803
$106.00
QTY:

Sold By: EA

29

On Diagram

NUT

Part #: 030841
$6.80
QTY:

Sold By: EA

31

On Diagram

WASHER

Part #: 030798
$2.70
QTY:

Sold By: EA

32

On Diagram

FAN

Part #: 030799

This part is no longer available.

$89.10
QTY:

Sold By: EA

33

On Diagram

LOCKWASHER

Part #: 030805
$6.40
QTY:

Sold By: EA

35

On Diagram

PIN

Part #: 030823

This part is no longer available.

Price not found
QTY:

Sold By: EA

38-1

On Diagram

HOLDER

Part #: 030800
$25.50
QTY:

Sold By: EA

38-2

On Diagram

HOLDER

Part #: 030800
$25.50
QTY:

Sold By: EA

38-3

On Diagram

HOLDER

Part #: 030801
$25.50
QTY:

Sold By: EA

38-4

On Diagram

HOLDER

Part #: 030801
$25.50
QTY:

Sold By: EA

39-1

On Diagram

BRUSH

Part #: 030814
$20.00
QTY:

Sold By: EA

39-2

On Diagram

BRUSH

Part #: 030808
$25.50
QTY:

Sold By: EA

39-3

On Diagram

BRUSH

Part #: 030804
$31.90
QTY:

Sold By: EA

39-4

On Diagram

BRUSH

Part #: 030804
$31.90
QTY:

Sold By: EA

42

On Diagram

RECTIFIER

Part #: 030809

This part is replaced with part number 043649

Price not found
QTY:

Sold By: EA

45-1

On Diagram

CAPACITOR

Part #: 030806
$95.20
QTY:

Sold By: EA

45-2

On Diagram

CAPACITOR

Part #: 030806
$95.20
QTY:

Sold By: EA

46-1

On Diagram

HOLDER

Part #: 030839
$315.70
QTY:

Sold By: EA

46-2

On Diagram

HOLDER

Part #: 030820
$305.50
QTY:

Sold By: EA

46-3

On Diagram

HOLDER

Part #: 030811

This part is no longer available.

$265.80
QTY:

Sold By: EA

46-4

On Diagram

HOLDER

Part #: 030812
$265.80
QTY:

Sold By: EA
