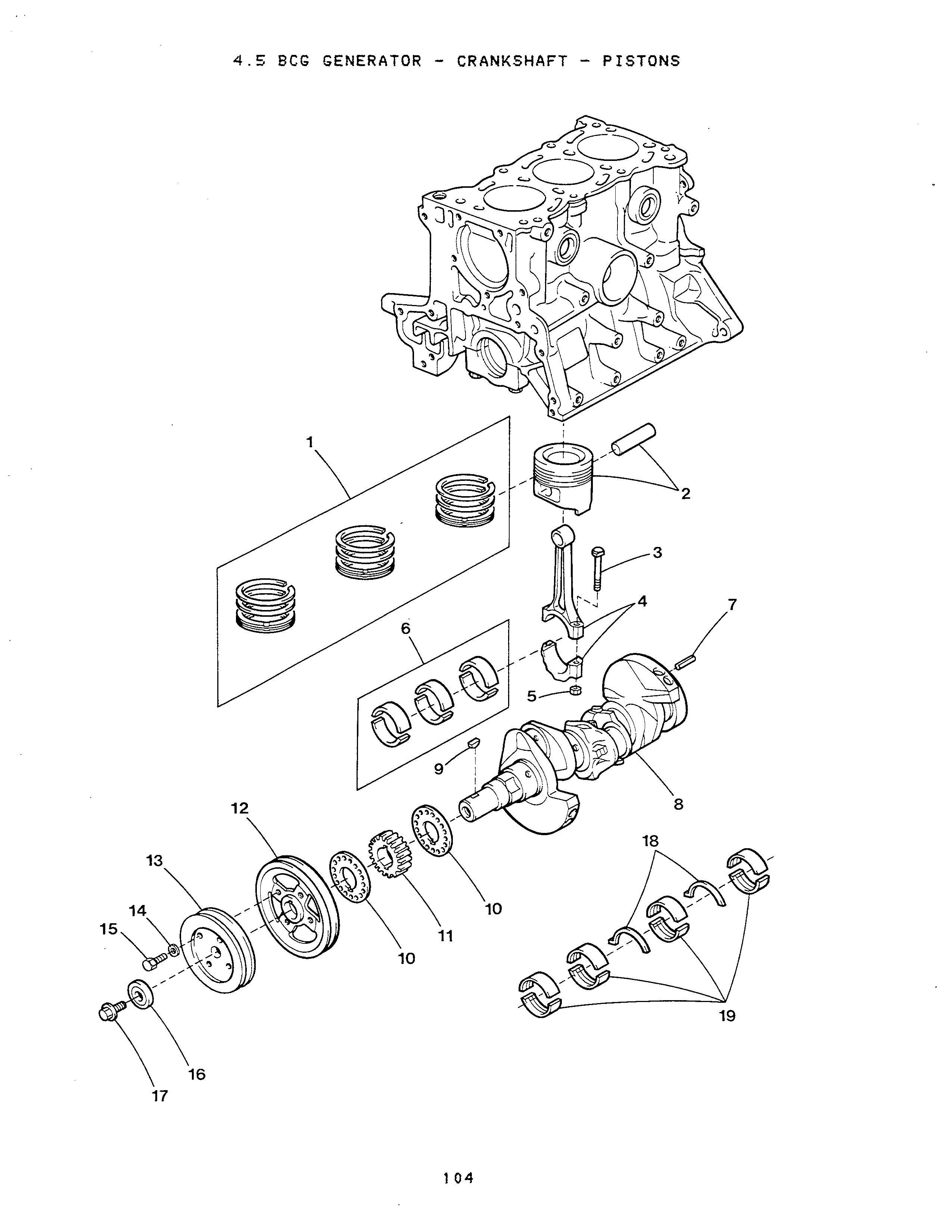

4.5 BCG - CRANKSHAFT - PISTONS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

RING SET

Part #: 037879
Price not found
QTY:

Sold By: ST

1-2

On Diagram

RING SET 0.25

Part #: 037880
$208.20
QTY:

Sold By: ST

1-3

On Diagram

RING SET 0.50

Part #: 037881
$208.20
QTY:

Sold By: ST

1-4

On Diagram

RING SET 0.75

Part #: 037882
$208.20
QTY:

Sold By: ST

1-5

On Diagram

RING SET 1.00

Part #: 037883

This part is no longer available.

$301.10
QTY:

Sold By: ST

2-1

On Diagram

PISTON

Part #: 037884

This part is no longer available.

Price not found
QTY:

Sold By: EA

2-2

On Diagram

PISTON 0.25

Part #: 037885
$121.50
QTY:

Sold By: EA

2-3

On Diagram

PISTON 0.50

Part #: 037886
$121.50
QTY:

Sold By: EA

2-4

On Diagram

PISTON

Part #: 037887
Price not found
QTY:

Sold By: EA

2-5

On Diagram

PISTON 1.00

Part #: 037888

This part is no longer available.

$121.50
QTY:

Sold By: EA

2-6

On Diagram

PISTON STD EB FROM OS09029

Part #: 041627
$150.40
QTY:

Sold By: EA

3-1

On Diagram

BOLT

Part #: 035541
$17.60
QTY:

Sold By: EA

3-2

On Diagram

BOLT

Part #: 041629
$29.00
QTY:

Sold By: EA

4-1

On Diagram

ROD

Part #: 037889

This part is no longer available.

Price not found
QTY:

Sold By: EA

4-2

On Diagram

ROD

Part #: 041628

This part is no longer available.

$393.30
QTY:

Sold By: EA

5

On Diagram

NUT

Part #: 036213
$4.60
QTY:

Sold By: EA

6-1

On Diagram

BEARING

Part #: 037890

This part is no longer available.

$117.30
QTY:

Sold By: ST

6-2

On Diagram

BEARING SET

Part #: 037891
$153.30
QTY:

Sold By: ST

6-3

On Diagram

BEARING SET

Part #: 037892

This part is no longer available.

$153.30
QTY:

Sold By: ST

6-4

On Diagram

BEARING SET

Part #: 041626
$159.10
QTY:

Sold By: ST

7

On Diagram

PIN

Part #: 036214

This part is no longer available.

$3.80
QTY:

Sold By: EA

8-1

On Diagram

CRANKSHAFT

Part #: 037893

This part is replaced with part numbers 041630 & 041640

Price not found
QTY:

Sold By: EA

8-2

On Diagram

CRANKSHAFT EB FROM OS09029

Part #: 041630
$1,288.00
QTY:

Sold By: EA

9

On Diagram

KEY

Part #: 035632
$5.20
QTY:

Sold By: EA

10

On Diagram

FLANGE

Part #: 037895
$29.50
QTY:

Sold By: EA

11-1

On Diagram

PULLEY

Part #: 037899
$167.80
QTY:

Sold By: EA

11-2

On Diagram

PULLEY

Part #: 041635
$101.50
QTY:

Sold By: EA

12-1

On Diagram

PULLEY

Part #: 037894

This part is no longer available.

$190.90
QTY:

Sold By: EA

12-2

On Diagram

PULLEY

Part #: 041631
$120.00
QTY:

Sold By: EA

13

On Diagram

PULLEY

Part #: 037937
$130.80
QTY:

Sold By: EA

14

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

15

On Diagram

CAPSCREW M 8x14 JIS 6 W/LW

Part #: 035791
$2.20
QTY:

Sold By: EA

16

On Diagram

WASHER

Part #: 035623
$4.20
QTY:

Sold By: EA

17

On Diagram

BOLT

Part #: 035784
$5.20
QTY:

Sold By: EA

18-1

On Diagram

THRUSTWASHER SET STD

Part #: 037860
$69.40
QTY:

Sold By: ST

18-2

On Diagram

THRUSTWASHER SET 0.125

Part #: 037861
$69.40
QTY:

Sold By: ST

18-3

On Diagram

THRUSTWASHER SET 0.25

Part #: 037862
$69.40
QTY:

Sold By: ST

19-1

On Diagram

BEARING

Part #: 037875

This part is no longer available.

Price not found
QTY:

Sold By: ST

19-2

On Diagram

BEARING SET

Part #: 037876
$124.00
QTY:

Sold By: ST

19-3

On Diagram

BEARING SET

Part #: 037877
$205.30
QTY:

Sold By: ST
