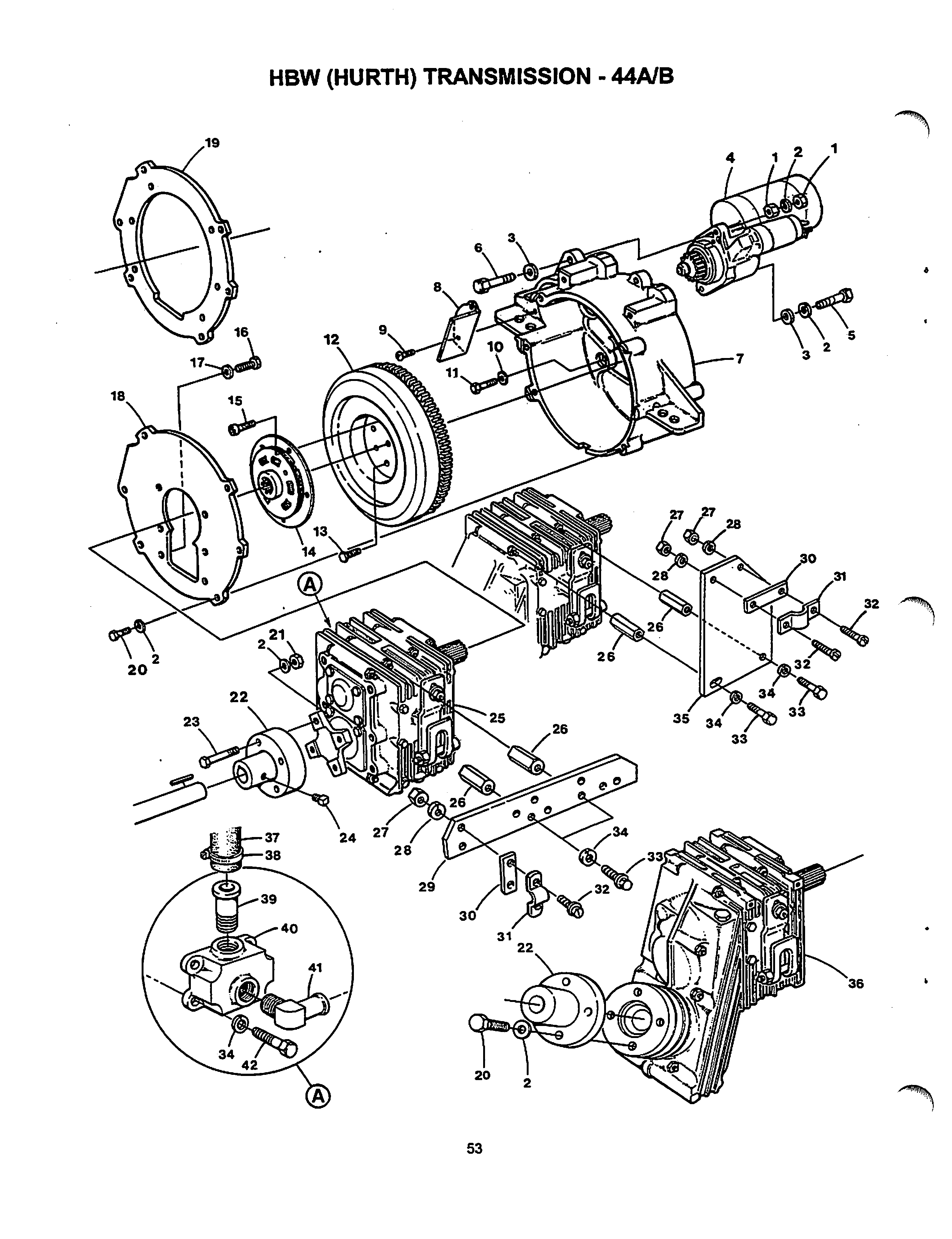

44A/B - BACK END - HBW TRANSMISSIONS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

4

On Diagram

MOTOR

Part #: 030593
$1,892.70
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

6

On Diagram

CAPSCREW M10x60 DIN 912 FULLY

Part #: 034833
$3.00
QTY:

Sold By: EA

7

On Diagram

HOUSING

Part #: 043097
$898.30
QTY:

Sold By: EA

8

On Diagram

COVER

Part #: 039830
$15.40
QTY:

Sold By: EA

9

On Diagram

SCREW M 5x12 HEX WASHER MACHIN

Part #: 039578
$2.20
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M12x1.25x30 DIN 961

Part #: 031834
$3.00
QTY:

Sold By: EA

12

On Diagram

FLYWHEEL ASSEMBLY

Part #: 041768
$609.50
QTY:

Sold By: EA

13

On Diagram

BOLT

Part #: 033279
$7.80
QTY:

Sold By: EA

14

On Diagram

DAMPER

Part #: 019398
$1,219.30
QTY:

Sold By: EA

15

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

16-1

On Diagram

CAPSCREW M 8x18 DIN 933

Part #: 020650
$0.70
QTY:

Sold By: EA

16-2

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

17-1

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

17-2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

18-1

On Diagram

ADAPTER

Part #: 039762
$203.50
QTY:

Sold By: EA

18-2

On Diagram

ADAPTER

Part #: 040008
$227.10
QTY:

Sold By: EA

19

On Diagram

ADAPTER

Part #: 040407
$246.80
QTY:

Sold By: EA

20

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

21

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

22-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

22-2

On Diagram

COUPLING 0.875

Part #: 023707
$365.60
QTY:

Sold By: EA

22-3

On Diagram

COUPLING 1.000

Part #: 023708
$475.70
QTY:

Sold By: EA

22-4

On Diagram

COUPLING 1.125

Part #: 023709
$631.00
QTY:

Sold By: EA

22-5

On Diagram

COUPLING 1.250

Part #: 023710
$631.00
QTY:

Sold By: EA

22-6

On Diagram

COUPLING 1.375

Part #: 023711

This part is no longer available.

$338.70
QTY:

Sold By: EA

22-7

On Diagram

COUPLING 1.500

Part #: 023712
$631.00
QTY:

Sold By: EA

23

On Diagram

CAPSCREW M10x1.25x30 DIN 961

Part #: 031228
$2.10
QTY:

Sold By: EA

24-1

On Diagram

SETSCREW

Part #: 023450
$4.10
QTY:

Sold By: EA

24-2

On Diagram

SETSCREW

Part #: 023651

This part is no longer available.

Price not found
QTY:

Sold By: EA

24-3

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

25-1

On Diagram

HBW GEAR

Part #: 030140

This part is no longer available.

Price not found
QTY:

Sold By: EA

25-2

On Diagram

HBW GEAR

Part #: 024630

This part is no longer available.

Price not found
QTY:

Sold By: EA

25-3

On Diagram

TRANSMISSION 2.1:1 ZF12M

Part #: 046212

This part is no longer available.

$2,022.90
QTY:

Sold By: EA

25-4

On Diagram

TRANSMISSION 2.6:1 ZF12M

Part #: 030049

This part is no longer available.

$2,022.90
QTY:

Sold By: EA

25-5

On Diagram

TRANSMISSION 1.9:1 ZF15MA

Part #: 043402

This part is no longer available.

$2,348.60
QTY:

Sold By: EA

25-6

On Diagram

TRANSMISSION 2.6:1 ZF15MA

Part #: 039586

This part is no longer available.

$2,348.60
QTY:

Sold By: EA

26

On Diagram

NUT

Part #: 030756
$19.60
QTY:

Sold By: EA

27

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

29

On Diagram

BRACKET

Part #: 032161
$32.10
QTY:

Sold By: EA

30

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA

31

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

32

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

33

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

35

On Diagram

BRACKET

Part #: 030181
$27.50
QTY:

Sold By: EA

36-1

On Diagram

HBW GEAR

Part #: 031249

This part is no longer available.

Price not found
QTY:

Sold By: EA

36-2

On Diagram

TRANSMISSION 2:1 ZF15MIV

Part #: 030048
$3,516.00
QTY:

Sold By: EA

37

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70
QTY:

Sold By: IN

38

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

39

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622
$134.80
QTY:

Sold By: EA

40

On Diagram

COOLER

Part #: 040036
$68.80
QTY:

Sold By: EA

41

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

42

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA
