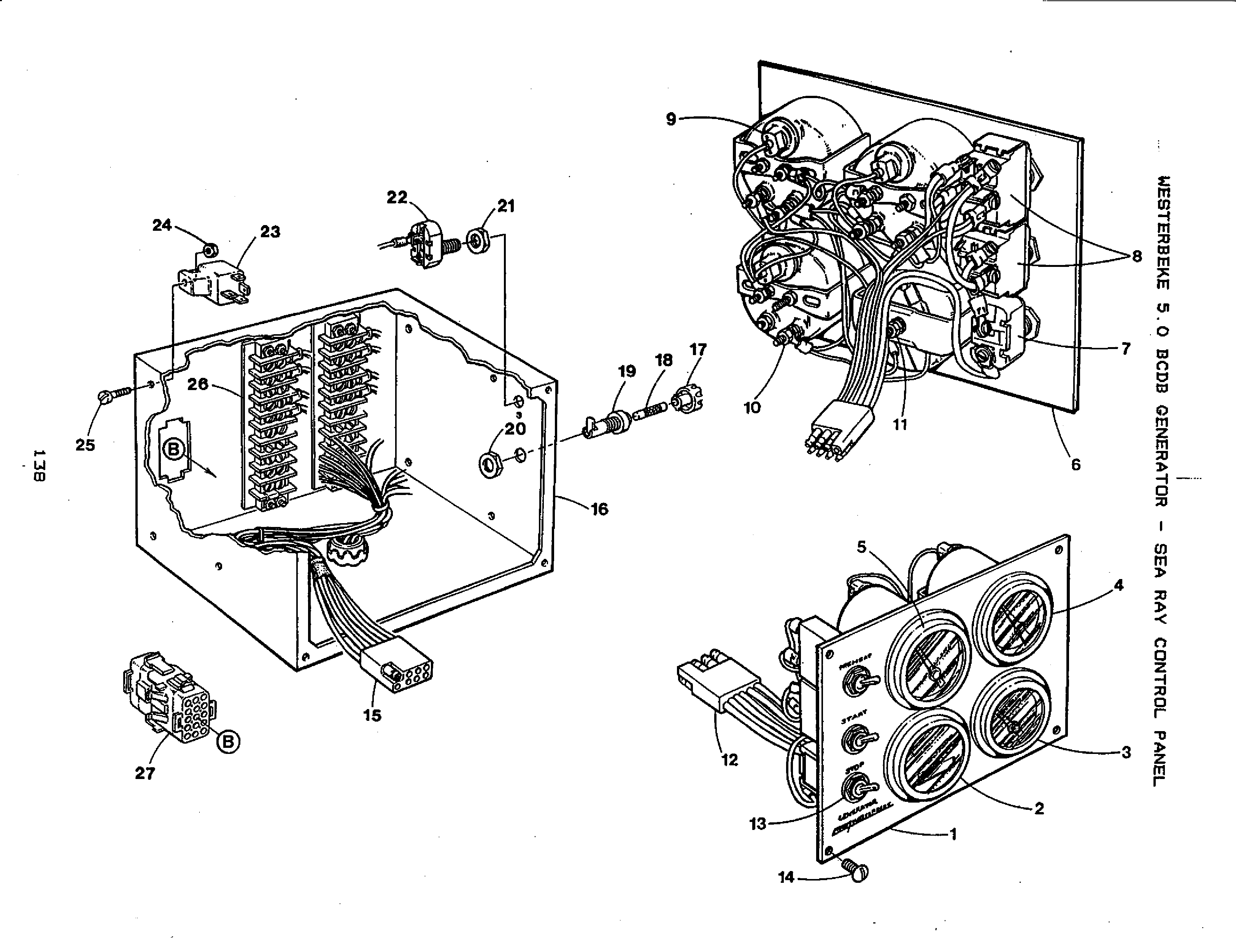

5.0 BCDB - SEA RAY CONTROL PANEL

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PANEL

Part #: 036539

$562.70

QTY:

Sold By: EA

2

On Diagram

METER

Part #: 036192

$146.30

QTY:

Sold By: EA

3

On Diagram

METER

Part #: 037605

$106.30

QTY:

Sold By: EA

4

On Diagram

METER

Part #: 037603

$92.60

QTY:

Sold By: EA

5

On Diagram

METER

Part #: 037601

$72.20

QTY:

Sold By: EA

6

On Diagram

PANEL

Part #: 034485

$36.70

QTY:

Sold By: EA

7

On Diagram

SWITCH

Part #: 024731

$27.30

QTY:

Sold By: EA

8

On Diagram

SWITCH

Part #: 024732

$46.50

QTY:

Sold By: EA

9-1

On Diagram

LAMP

Part #: 042893

$3.10

QTY:

Sold By: EA

9-2

On Diagram

WIRE

Part #: 035825

$5.80

QTY:

Sold By: EA

10-1

On Diagram

NUT 10-32 BRASS

Part #: 031900

$0.30

QTY:

Sold By: EA

10-2

On Diagram

LOCKWASHER 10 MED BRONZE

Part #: 031902

$0.20

QTY:

Sold By: EA

11

On Diagram

NUT 10-24 KEPS SS

Part #: 031904

$1.60

QTY:

Sold By: EA

12

On Diagram

HARNESS

Part #: 036538

$54.40

QTY:

Sold By: EA

13

On Diagram

LOCKRING

Part #: 031999

$1.60

QTY:

Sold By: EA

14

On Diagram

SCREW 8-32 X 3/8 TRUSS

Part #: 034421

$2.00

QTY:

Sold By: EA

15-1

On Diagram

HARNESS

Part #: 043841

$203.80

QTY:

Sold By: EA

15-2

On Diagram

HOLDER

Part #: 043747

$10.70

QTY:

Sold By: EA

16-1

On Diagram

PANEL

Part #: 043795

$704.90

QTY:

Sold By: EA

16-2

On Diagram

BOX

Part #: 043840

$83.20

QTY:

Sold By: EA

16-3

On Diagram

COVER

Part #: 040195

This part is no longer available.

$1.00

QTY:

Sold By: each

18

On Diagram

FUSE 8 AMP

Part #: 033769

$1.60

QTY:

Sold By: EA

19

On Diagram

HOLDER

Part #: 043747

$10.70

QTY:

Sold By: EA

21-1

On Diagram

NUT 15/32-32 HEX

Part #: 038042

$0.70

QTY:

Sold By: EA

21-2

On Diagram

LOCKRING

Part #: 031999

$1.60

QTY:

Sold By: EA

22-1

On Diagram

SWITCH

Part #: 033259

$16.90

QTY:

Sold By: EA

22-2

On Diagram

LABEL

Part #: 033251

$3.40

QTY:

Sold By: EA

23

On Diagram

RELAY 12VDC 40A

Part #: 037833

$31.60

QTY:

Sold By: EA

24

On Diagram

NUT 10-32 KEPS

Part #: 200125

$0.30

QTY:

Sold By: EA

25

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872

$0.40

QTY:

Sold By: EA

26-1

On Diagram

BLOCK

Part #: 039928

$33.90

QTY:

Sold By: EA

26-2

On Diagram

MARKER

Part #: 039929

$3.50

QTY:

Sold By: EA

26-3

On Diagram

PLATE

Part #: 015222

$1.50

QTY:

Sold By: EA

26-4

On Diagram

SCREW 6-32 X 5/8 SS

Part #: 031855

$0.30

QTY:

Sold By: EA

26-5

On Diagram

SCREW 6-32x7/8 SS BINDING HEAD

Part #: 031857

$0.50

QTY:

Sold By: EA

26-6

On Diagram

NUT 6-32 KEPS

Part #: 050234

$0.30

QTY:

Sold By: EA

27

On Diagram

CONNECTOR

Part #: 043746

$49.20

QTY:

Sold By: EA

28

On Diagram

CONNECTOR

Part #: 043818

$25.80

QTY:

Sold By: EA

29

On Diagram

DIODE

Part #: 041081

$5.10

QTY:

Sold By: EA
