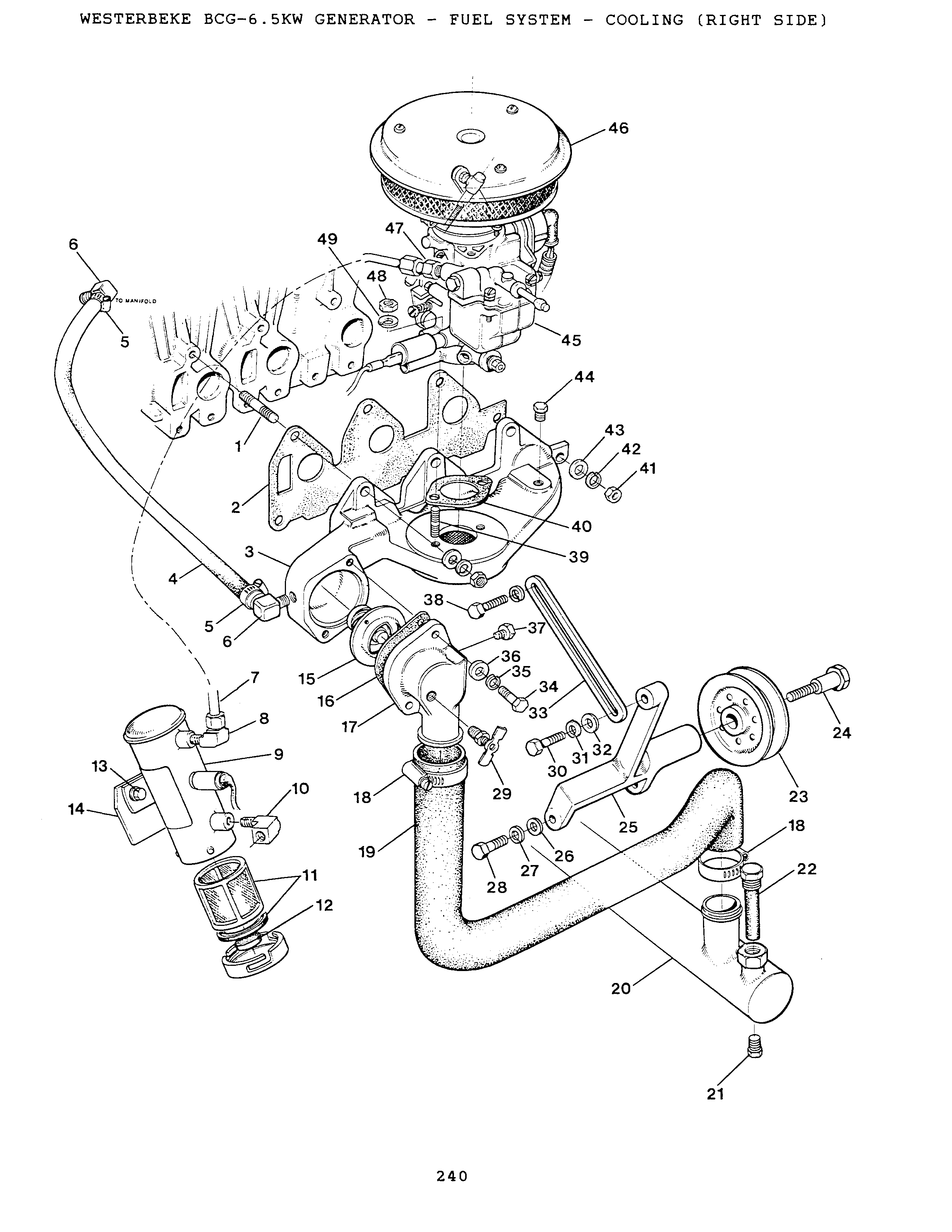

6.0 BCG - FUEL SYSTEM - COOLING (RIGHT SIDE)

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

2

On Diagram

GASKET

Part #: 035152
$16.20
QTY:

Sold By: EA

3

On Diagram

MANIFOLD

Part #: 034860

This part is no longer available.

$266.00
QTY:

Sold By: EA

4

On Diagram

HOSE

Part #: 035434
$12.40
QTY:

Sold By: EA

5

On Diagram

CLAMP

Part #: 024906
$2.00
QTY:

Sold By: EA

6

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$24.80
QTY:

Sold By: EA

7

On Diagram

TUBE

Part #: 035771
$33.20
QTY:

Sold By: EA

8-1

On Diagram

ELBOW

Part #: 013329
$4.50
QTY:

Sold By: EA

8-2

On Diagram

NUT

Part #: 016676
$2.80
QTY:

Sold By: EA

8-3

On Diagram

FERRULE 1/4OD TUBE

Part #: 011597
$1.20
QTY:

Sold By: EA

9

On Diagram

PUMP

Part #: 033630
$489.90
QTY:

Sold By: EA

10

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340
$9.80
QTY:

Sold By: EA

11

On Diagram

FILTER

Part #: 032920
Price not found
QTY:

Sold By: each

12

On Diagram

MAGNET

Part #: 033792
$9.60
QTY:

Sold By: EA

13-1

On Diagram

CAPSCREW 1/4NCx3/4

Part #: 031503
$0.40
QTY:

Sold By: EA

13-2

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

13-3

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

14

On Diagram

BRACKET

Part #: 035288

This part is no longer available.

Price not found
QTY:

Sold By: each

15

On Diagram

THERMOSTAT 140F

Part #: 035736
$19.90
QTY:

Sold By: EA

16

On Diagram

GASKET

Part #: 034196
$2.50
QTY:

Sold By: EA

17

On Diagram

HOUSING

Part #: 034416
$94.30
QTY:

Sold By: EA

18

On Diagram

CLAMP

Part #: 021878
$3.40
QTY:

Sold By: EA

19

On Diagram

HOSE

Part #: 035098
$73.60
QTY:

Sold By: EA

20

On Diagram

EXCHANGER

Part #: 035298

This part is replaced with part number 036891

Price not found
QTY:

Sold By: each

21

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

22

On Diagram

ZINC

Part #: 011885
$14.60
QTY:

Sold By: EA

23

On Diagram

PULLEY

Part #: 035263

This part is replaced with part number 037774

Price not found
QTY:

Sold By: each

24

On Diagram

SCREW

Part #: 035262
$11.40
QTY:

Sold By: EA

25

On Diagram

BRACKET

Part #: 035258
$359.10
QTY:

Sold By: EA

26

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M10x1.25x50 DIN 960

Part #: 024956
$3.20
QTY:

Sold By: EA

29

On Diagram

PETCOCK

Part #: 011471
$13.80
QTY:

Sold By: EA

30

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

32

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

33

On Diagram

STRAP

Part #: 035338
$31.40
QTY:

Sold By: EA

34

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

35

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

36

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

37

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

38

On Diagram

CAPSCREW M 8x16 JIS 6 W/LW

Part #: 035792
$12.60
QTY:

Sold By: EA

39

On Diagram

STUD

Part #: 035337
$1.20
QTY:

Sold By: EA

40

On Diagram

GASKET

Part #: 035293
$4.00
QTY:

Sold By: EA

41

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

42

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

43

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

44

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

45

On Diagram

CARBURETOR

Part #: 035342

This part is replaced with part number 035343

Price not found
QTY:

Sold By: EA

46

On Diagram

ARRESTOR

Part #: 035289
$335.90
QTY:

Sold By: EA

47-1

On Diagram

CONNECTOR

Part #: 019449
$4.50
QTY:

Sold By: EA

47-2

On Diagram

NUT

Part #: 016676
$2.80
QTY:

Sold By: EA

47-3

On Diagram

FERRULE 1/4OD TUBE

Part #: 011597
$1.20
QTY:

Sold By: EA

48

On Diagram

NUT 1/4-20 NC

Part #: 031750
$0.40
QTY:

Sold By: EA

49

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA
