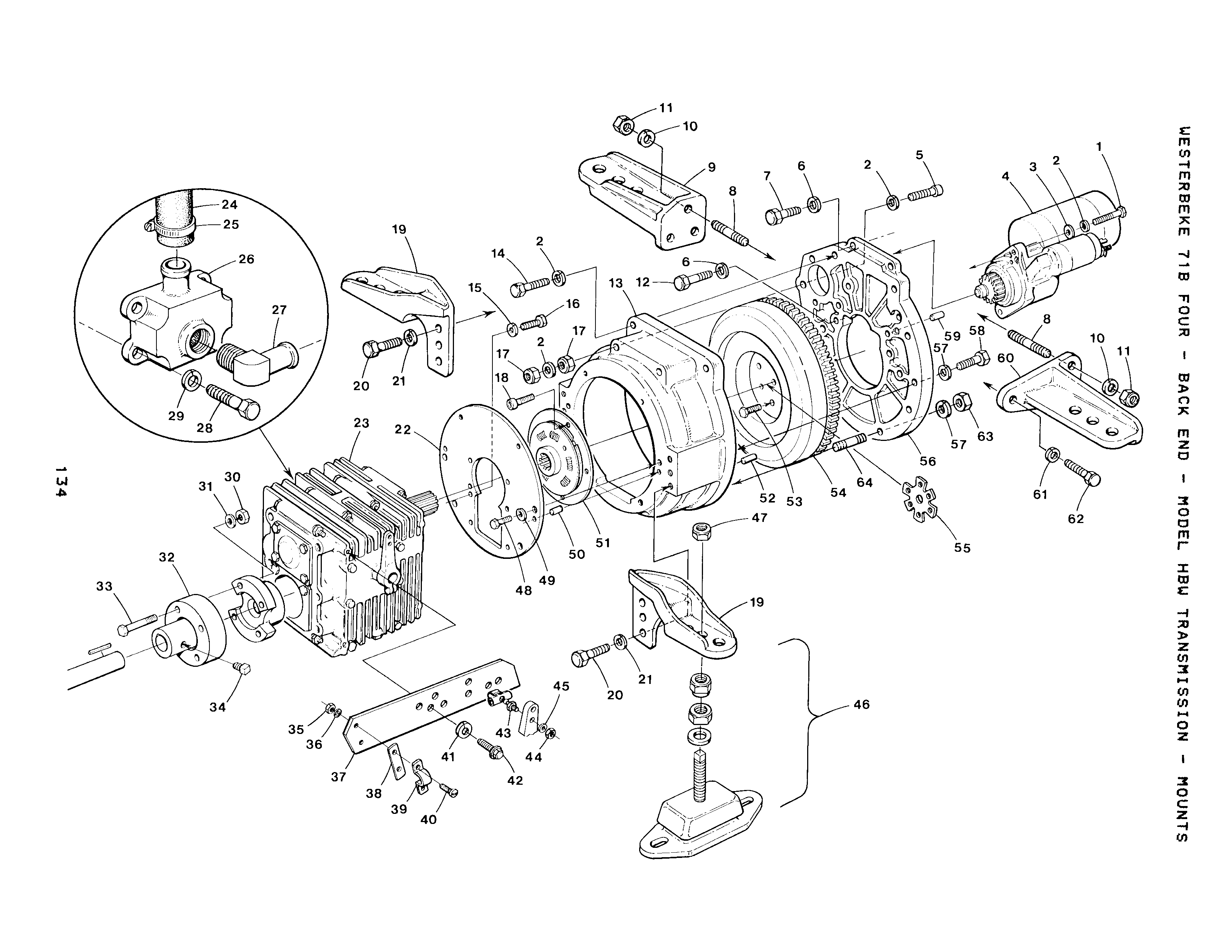

71B - BACK END - HBW TRANSMISSION - MOUNTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAPSCREW

Part #: 024589
Price not found
QTY:

Sold By: each

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

4

On Diagram

MOTOR

Part #: 030593
$1,892.70
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x65 DIN 912 FULLY

Part #: 035307
$5.10
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

7

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630
$0.50
QTY:

Sold By: EA

9

On Diagram

MOUNT

Part #: 023954

This part is no longer available.

$378.20
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER 7/16 MED

Part #: 031770
$0.20
QTY:

Sold By: EA

12

On Diagram

NUT 7/16-20 NF

Part #: 031772

This part is no longer available.

$0.60
QTY:

Sold By: EA

13

On Diagram

HOUSING

Part #: 038294

This part is no longer available.

$737.00
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M10x35 DIN 933

Part #: 031926
$2.00
QTY:

Sold By: EA

15

On Diagram

WASHER M10 DIN 137B

Part #: 031790
$0.30
QTY:

Sold By: EA

16

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

17

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

18

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

19

On Diagram

MOUNT

Part #: 038578
$381.80
QTY:

Sold By: EA

20

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

22

On Diagram

ADAPTER

Part #: 038442

This part is no longer available.

$218.90
QTY:

Sold By: EA

23-1

On Diagram

GEAR

Part #: 032564

This part is no longer available.

Price not found
QTY:

Sold By: EA

23-2

On Diagram

TRANSMISSION 1.9:1 ZF25M

Part #: 032565

This part is no longer available.

$2,645.80
QTY:

Sold By: EA

23-3

On Diagram

TRANSMISSION 2.7:1 ZF25M

Part #: 032566
$2,645.80
QTY:

Sold By: EA

24

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70
QTY:

Sold By: IN

25

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

26

On Diagram

COOLER

Part #: 036648

This part is replaced with part numbers 040036 & 036622

Price not found
QTY:

Sold By: EA

27

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

30

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

31

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

32-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

32-2

On Diagram

COUPLING 0.875

Part #: 023707
$365.60
QTY:

Sold By: EA

32-3

On Diagram

COUPLING 1.000

Part #: 023708
$475.70
QTY:

Sold By: EA

32-4

On Diagram

COUPLING 1.125

Part #: 023709
$631.00
QTY:

Sold By: EA

32-5

On Diagram

COUPLING 1.250

Part #: 023710
$631.00
QTY:

Sold By: EA

32-6

On Diagram

COUPLING 1.375

Part #: 023711

This part is no longer available.

$338.70
QTY:

Sold By: EA

32-7

On Diagram

COUPLING 1.500

Part #: 023712
$631.00
QTY:

Sold By: EA

33

On Diagram

CAPSCREW M10x1.25x30 DIN 961

Part #: 031228
$2.10
QTY:

Sold By: EA

34-1

On Diagram

SETSCREW

Part #: 023651

This part is no longer available.

Price not found
QTY:

Sold By: EA

34-2

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

35

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

36

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

37

On Diagram

BRACKET

Part #: 032161
$32.10
QTY:

Sold By: EA

38

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA

39

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

40

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

41

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

42

On Diagram

CAPSCREW M 8x18 DIN 933

Part #: 020650
$0.70
QTY:

Sold By: EA

43

On Diagram

BALLJOINT

Part #: 033482
$15.00
QTY:

Sold By: EA

44

On Diagram

NUT 1/4-28 NF

Part #: 031754
$0.20
QTY:

Sold By: EA

45

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

46

On Diagram

ISOLATOR

Part #: 036334
$256.80
QTY:

Sold By: EA

47

On Diagram

NUT M16 DIN 985 LOCKING

Part #: 036338
$2.20
QTY:

Sold By: EA

48

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

49

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

50

On Diagram

DOWEL

Part #: 013919
$1.10
QTY:

Sold By: EA

51

On Diagram

DAMPER

Part #: 011618
$705.20
QTY:

Sold By: EA

52

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

53

On Diagram

BOLT

Part #: 024411

This part is no longer available.

$7.30
QTY:

Sold By: EA

54-1

On Diagram

FLYWHEEL

Part #: 038008

This part is no longer available.

Price not found
QTY:

Sold By: EA

54-2

On Diagram

GEAR

Part #: 037735

This part is no longer available.

$188.50
QTY:

Sold By: EA

55

On Diagram

TABWASHER

Part #: 031166
$67.60
QTY:

Sold By: EA

56

On Diagram

PLATE

Part #: 038006
$379.20
QTY:

Sold By: EA

57

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

58

On Diagram

CAPSCREW M10x40 DIN 933

Part #: 034590
$1.70
QTY:

Sold By: EA

59

On Diagram

ADAPTER

Part #: 019309
$305.60
QTY:

Sold By: EA

60

On Diagram

MOUNT

Part #: 038858

This part is no longer available.

$471.80
QTY:

Sold By: EA

61

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

62

On Diagram

CAPSCREW

Part #: 031732
Price not found
QTY:

Sold By: each

63

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

64

On Diagram

STUD M10x30 DIN 939

Part #: 037821
$7.10
QTY:

Sold By: EA
