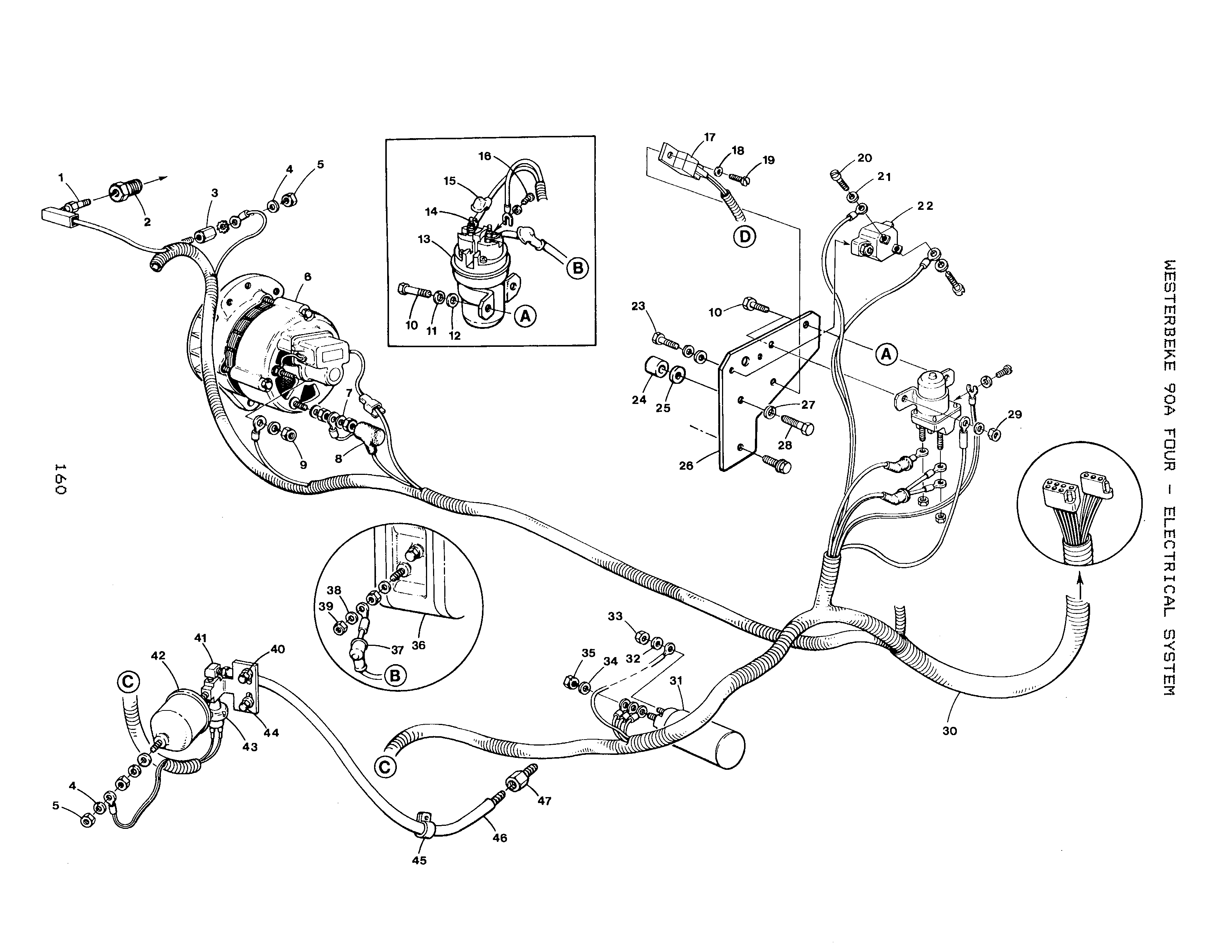

90A - ELECTRICAL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

SWITCH

Part #: 030125

This part is no longer available. Use temperature switch kit part number 056519.

Price not found
QTY:

Sold By: EA

2

On Diagram

BUSHING

Part #: 037453
$19.70
QTY:

Sold By: EA

3

On Diagram

SENDER

Part #: 035109
$69.60
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

5

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

6

On Diagram

ALTERNATOR 12VDC

Part #: 039790
$459.90
QTY:

Sold By: EA

7

On Diagram

NUT 1/4-20 NC KEPS

Part #: 200120
$0.50
QTY:

Sold By: EA

8

On Diagram

BOOT

Part #: 031086
$1.40
QTY:

Sold By: EA

9

On Diagram

NUT 10-24 KEPS SS

Part #: 031904
$1.60
QTY:

Sold By: EA

10

On Diagram

CAPSCREW M 6x25 DIN 933

Part #: 020628
$0.50
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

12

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

13

On Diagram

SOLENOID

Part #: 040369

This part is no longer available.

$487.10
QTY:

Sold By: EA

14-1

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

14-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

15

On Diagram

BOOT

Part #: 034472
$2.10
QTY:

Sold By: EA

17

On Diagram

RELAY 12VDC 40A

Part #: 037833
$31.60
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

19

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

20

On Diagram

SCREW 8-32 X 1/4 SS

Part #: 031861
$0.30
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

22

On Diagram

BREAKER

Part #: 024683
$109.20
QTY:

Sold By: EA

23

On Diagram

SCREW 8-32x7/8 SS HEX WASHR HD

Part #: 043480
$0.70
QTY:

Sold By: EA

24

On Diagram

SPACER

Part #: 021885
$5.20
QTY:

Sold By: EA

25

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

26

On Diagram

BRACKET

Part #: 032270
$35.60
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M10x1.25x30 JIS

Part #: 031083
$3.50
QTY:

Sold By: EA

29

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

30

On Diagram

HARNESS

Part #: 041455
$249.70
QTY:

Sold By: EA

31

On Diagram

SPACER

Part #: 038523
$16.90
QTY:

Sold By: EA

32

On Diagram

LOCKWASHER M 5 DIN 127

Part #: 031780
$0.20
QTY:

Sold By: EA

33

On Diagram

NUT M 5 DIN 934

Part #: 018241
$1.20
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER M10 DIN 127B BRONZE

Part #: 034575
$1.40
QTY:

Sold By: EA

35

On Diagram

NUT M10 DIN 439 BRASS

Part #: 032438
$2.20
QTY:

Sold By: EA

36

On Diagram

HEATER

Part #: 040368
$549.30
QTY:

Sold By: EA

37

On Diagram

BOOT

Part #: 303107
$2.10
QTY:

Sold By: EA

38

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

39

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

40

On Diagram

CAPSCREW M10x1.25x30 DIN 961

Part #: 031228
$2.10
QTY:

Sold By: EA

40-2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

40-3

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

41

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340
$9.80
QTY:

Sold By: EA

42

On Diagram

SENDER

Part #: 024132
$148.50
QTY:

Sold By: EA

43

On Diagram

SWITCH

Part #: 037323
$31.20
QTY:

Sold By: EA

44

On Diagram

BRACKET

Part #: 032480
$83.70
QTY:

Sold By: EA

45

On Diagram

CLAMP

Part #: 013736
$1.70
QTY:

Sold By: EA

46

On Diagram

HOSE

Part #: 039608
$83.50
QTY:

Sold By: EA

47

On Diagram

ADAPTER 1/8 BSPT TO 1/8 NPT

Part #: 024844
$32.30
QTY:

Sold By: EA
