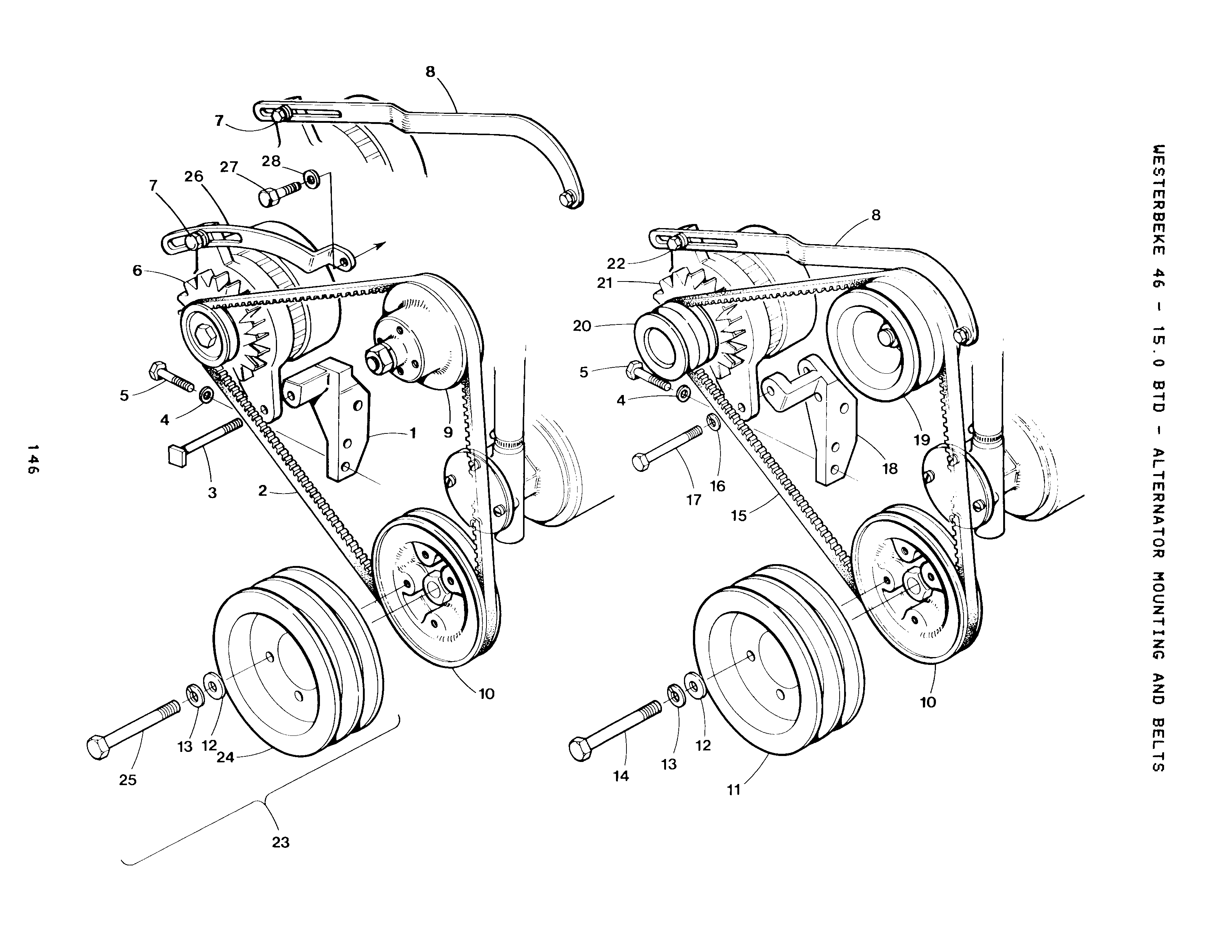

ALTERNATOR MOUNTING AND BELTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

BRACKET

Part #: 033914

This part is no longer available.

$207.40
QTY:

Sold By: EA

2

On Diagram

BELT

Part #: 030475
$25.10
QTY:

Sold By: EA

3

On Diagram

BOLT

Part #: 032015
$570.90
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M12x30 DIN 933

Part #: 033958
$1.40
QTY:

Sold By: EA

6

On Diagram

ALTERNATOR

Part #: 030594

This part is not available. See Parts Bulletin 2004-3 (revised 3/28/14) for replacement information.

Price not found
QTY:

Sold By: EA

7-1

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

7-2

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

7-3

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

8

On Diagram

STRAP

Part #: 034425
$103.90
QTY:

Sold By: EA

9

On Diagram

PULLEY

Part #: 034392
$377.90
QTY:

Sold By: EA

10-1

On Diagram

PULLEY

Part #: 034352
$772.00
QTY:

Sold By: EA

10-2

On Diagram

PULLEY

Part #: 037756
Price not found
QTY:

Sold By: each

11

On Diagram

PULLEY

Part #: 034870
Price not found
QTY:

Sold By: EA

12

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M 8x35 DIN 931

Part #: 031462
$0.80
QTY:

Sold By: EA

15

On Diagram

BELT

Part #: 035020
$32.50
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

17

On Diagram

CAPSCREW 3/8NCx3-1/2

Part #: 031615
$1.30
QTY:

Sold By: EA

18

On Diagram

BRACKET

Part #: 034864

This part is no longer available.

Price not found
QTY:

Sold By: EA

19

On Diagram

PULLEY

Part #: 034868

This part is no longer available.

$413.20
QTY:

Sold By: EA

20

On Diagram

PULLEY

Part #: 034876
$254.90
QTY:

Sold By: EA

21-1

On Diagram

ALTERNATOR 12VDC 90A

Part #: 030735

This part is no longer available.

$737.90
QTY:

Sold By: EA

21-2

On Diagram

ALTERNATOR

Part #: 034409

This part is replaced with part numbers 042835 & 300746

Price not found
QTY:

Sold By: EA

22-1

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

22-2

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

22-3

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

23

On Diagram

PULLEY KIT 6x2xA W46

Part #: 034813
$357.00
QTY:

Sold By: KT

24

On Diagram

PULLEY 6x2xA

Part #: 034755
$217.70
QTY:

Sold By: EA

25

On Diagram

CAPSCREW M 8x40 DIN 931

Part #: 018811
$1.10
QTY:

Sold By: EA

26

On Diagram

STRAP

Part #: 037761
$214.20
QTY:

Sold By: EA

27

On Diagram
$4.60
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA
