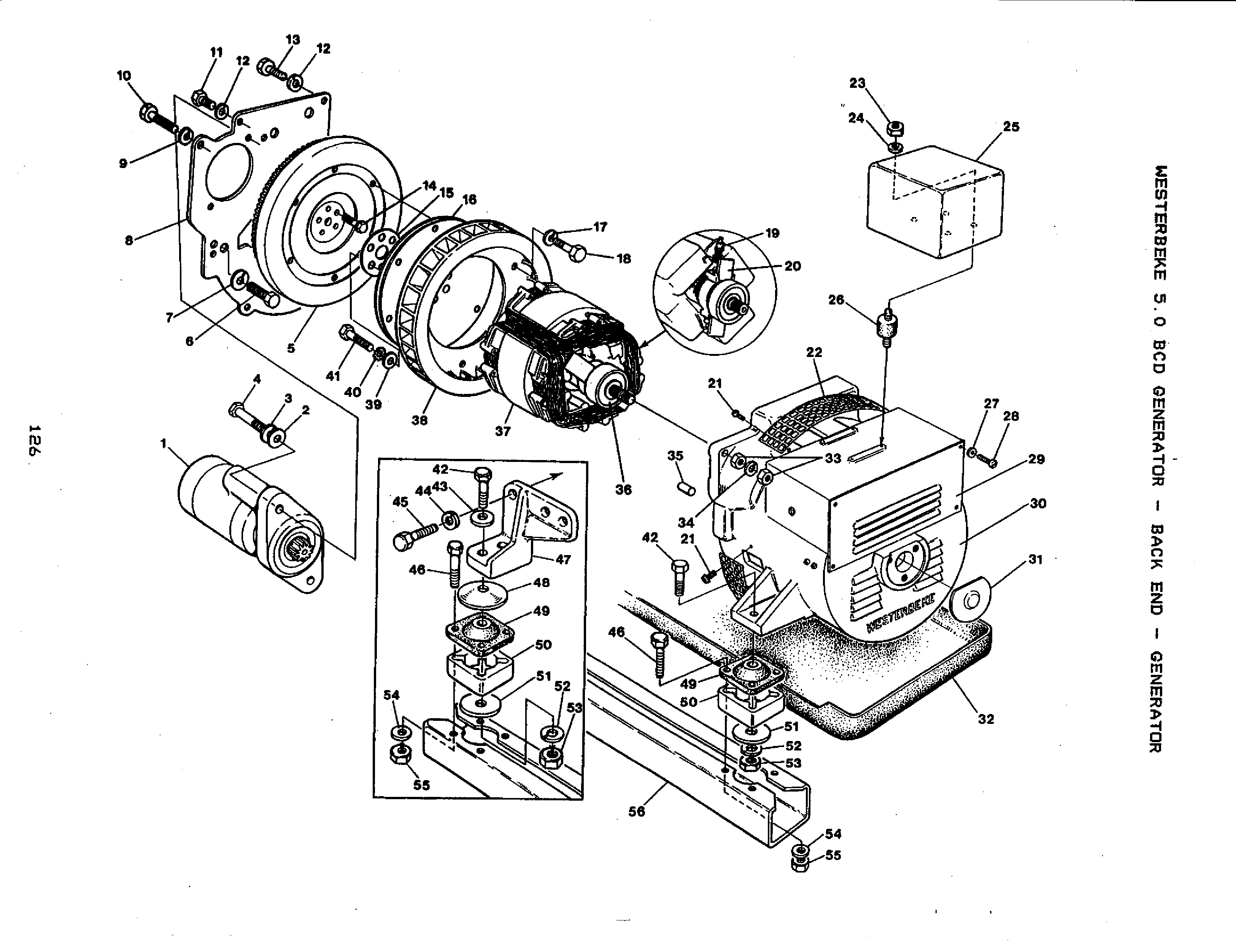

BACK END - GENERATOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

2

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

5-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 038202
$452.40
QTY:

Sold By: EA

5-2

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

6

On Diagram

CAPSCREW M10x1.25x25 DIN 961

Part #: 024952
$2.20
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

8

On Diagram

PLATE

Part #: 036050
$264.60
QTY:

Sold By: EA

9

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

10

On Diagram

CAPSCREW M10x60 DIN 912 FULLY

Part #: 034833
$3.00
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

13

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

14

On Diagram

BOLT

Part #: 036924
$7.80
QTY:

Sold By: EA

15

On Diagram

PLATE

Part #: 035928
Price not found
QTY:

Sold By: EA

16

On Diagram

PLATE

Part #: 035927
$92.30
QTY:

Sold By: EA

17

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

18

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

20

On Diagram

DIODE SET

Part #: 035971

This is a set of 2 diodes.

$246.10
QTY:

Sold By: ST

21

On Diagram

SCREW M 5 X 10 DIN 85A

Part #: 031933
$0.40
QTY:

Sold By: EA

22

On Diagram

GUARD

Part #: 035974
$44.00
QTY:

Sold By: EA

23

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

24

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

26

On Diagram

ISOLATOR

Part #: 038236
$17.90
QTY:

Sold By: EA

27

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

28

On Diagram

SCREW M 5 X 10 DIN 84A

Part #: 031918
$1.70
QTY:

Sold By: EA

29-1

On Diagram

COVER

Part #: 035984
$105.50
QTY:

Sold By: EA

29-2

On Diagram

COVER

Part #: 035975
$87.90
QTY:

Sold By: EA

30-10

On Diagram

STATOR

Part #: 037721

This part is replaced with part number 041218

Price not found
QTY:

Sold By: EA

30-1

On Diagram

GENERATOR

Part #: 037429

This part is no longer available. See Parts Bulletin 2015-5.

$1.00
QTY:

Sold By: EA

30-11

On Diagram

STATOR

Part #: 041216

This part is no longer available.

Price not found
QTY:

Sold By: EA

30-12

On Diagram

STATOR BC-4.5KW FR S/N 31024

Part #: 043098

This part is no longer available

$1,944.80
QTY:

Sold By: EA

30-13

On Diagram

STATOR BC-6.5KW

Part #: 037722

This part is no longer available.

$3,227.20
QTY:

Sold By: KT

30-14

On Diagram

STATOR BC-6.5KW FROM S/N 31019

Part #: 043099

This part is no longer available.

$3,512.90
QTY:

Sold By: EA

30-2

On Diagram

GENERATOR 4.5KW BC 1 Phase FROM S/N 31024

Part #: 043092

This part is no longer available. See Parts Bulletin 2015-5.

$2,981.30
QTY:

Sold By: EA

30-3

On Diagram

GENERATOR

Part #: 037438

This part is no longer available.

Price not found
QTY:

Sold By: EA

30-4

On Diagram

GENERATOR 6.5KW BC FROM S/N 31018 1 Phase

Part #: 043095
$3,977.80
QTY:

Sold By: EA

30-5

On Diagram

HOUSING

Part #: 035983

This part is replaced with part number 041218

Price not found
QTY:

Sold By: EA

30-6

On Diagram

HOUSING

Part #: 041218

This part is no longer available.

Price not found
QTY:

Sold By: EA

30-7

On Diagram

STATOR ASSY INCL HSG BC 4.5

Part #: 043101
$2,536.90
QTY:

Sold By: EA

30-8

On Diagram

STATOR ASSY INCL HOUSING BC6.5

Part #: 035973

This part is no longer available.

$3,008.80
QTY:

Sold By: EA

30-9

On Diagram

STATOR ASSY INCL HSG BC 6.5

Part #: 043102
$3,450.00
QTY:

Sold By: EA

31

On Diagram

COVER

Part #: 034182
$43.30
QTY:

Sold By: EA

32

On Diagram

DRIPTRAY

Part #: 038088
$139.00
QTY:

Sold By: EA

33

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

34

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

35

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

36

On Diagram

BEARING

Part #: 035972
$60.80
QTY:

Sold By: EA

37-1

On Diagram

ARMATURE BC 4.5KW 1PH

Part #: 035982
$2,755.10
QTY:

Sold By: EA

37-2

On Diagram

ARMATURE BC 6.5KW 1PH

Part #: 035970
$2,967.30
QTY:

Sold By: EA

38

On Diagram

FAN

Part #: 035969
$149.80
QTY:

Sold By: EA

39

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

40

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

41

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

42

On Diagram

CAPSCREW 1/2NCx2-3/4

Part #: 031712
$1.70
QTY:

Sold By: EA

43

On Diagram

WASHER

Part #: 031777
$0.80
QTY:

Sold By: EA

44

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

45

On Diagram

CAPSCREW M10x1.25x30 DIN 961

Part #: 031228
$2.10
QTY:

Sold By: EA

46

On Diagram

CAPSCREW 5/16NCx1-1/4

Part #: 031556
$0.50
QTY:

Sold By: EA

47-1

On Diagram

MOUNT

Part #: 038112
$78.00
QTY:

Sold By: EA

47-2

On Diagram

MOUNT

Part #: 038113
$78.00
QTY:

Sold By: EA

48

On Diagram

SHIELD

Part #: 033530
$6.30
QTY:

Sold By: EA

49

On Diagram

ISOLATOR

Part #: 024776
$55.10
QTY:

Sold By: EA

50

On Diagram

SPACER

Part #: 035273
$12.30
QTY:

Sold By: EA

51

On Diagram

WASHER

Part #: 024674
$2.20
QTY:

Sold By: EA

52

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

53

On Diagram

NUT 1/2-13 NC

Part #: 031774
$0.40
QTY:

Sold By: EA

54

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

55

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

56-1

On Diagram

RAIL ASSEMBLY

Part #: 038148
$357.90
QTY:

Sold By: EA

56-2

On Diagram

RAIL ASSEMBLY

Part #: 038149
$374.30
QTY:

Sold By: EA

57

On Diagram

STRAP

Part #: 034593
$16.50
QTY:

Sold By: EA
