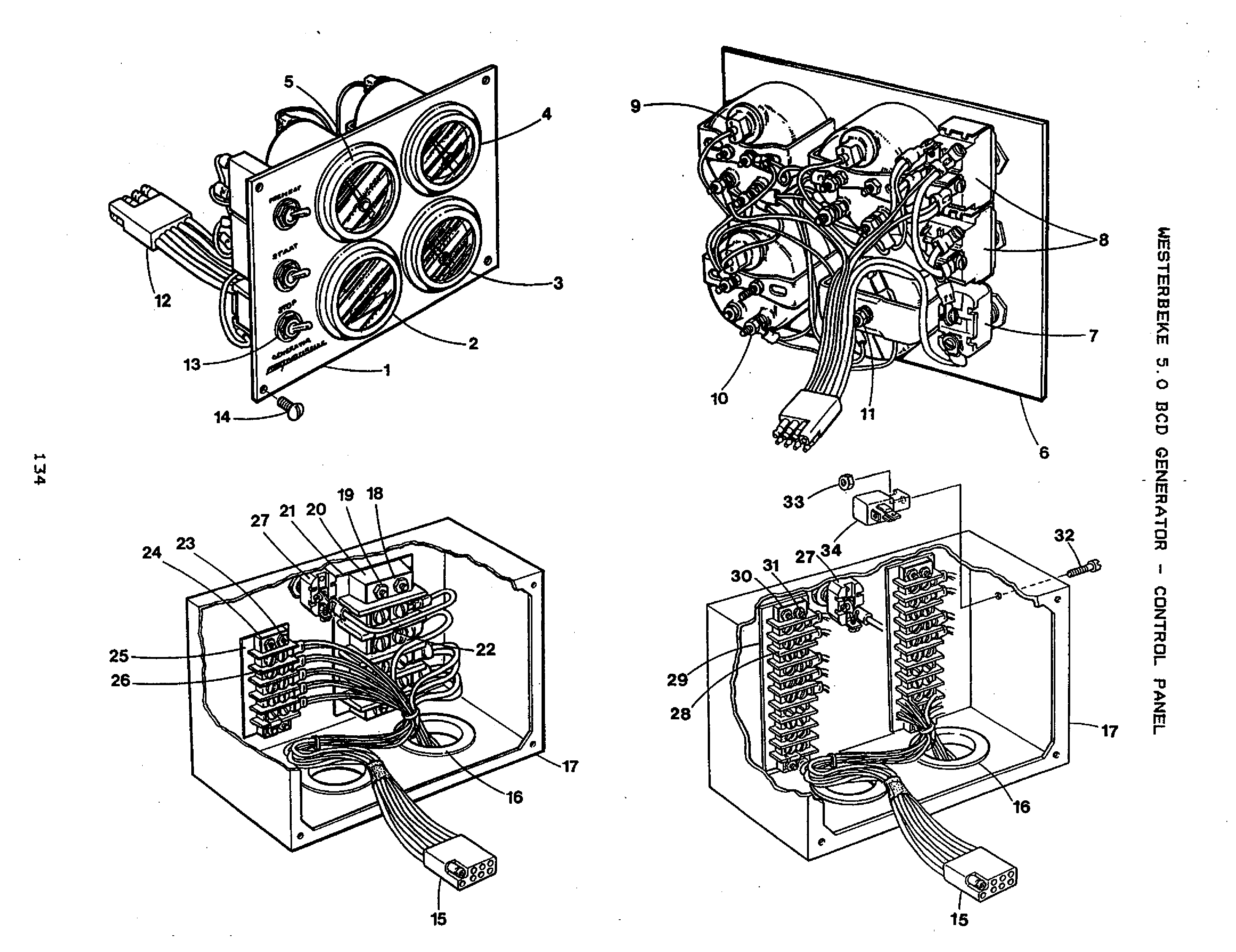

CONTROL PANEL

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PANEL

Part #: 036539
$566.60
QTY:

Sold By: EA

2

On Diagram

METER

Part #: 036192
$146.30
QTY:

Sold By: EA

3

On Diagram

METER

Part #: 037605
$148.80
QTY:

Sold By: EA

4

On Diagram

METER

Part #: 037603
$129.90
QTY:

Sold By: EA

5

On Diagram

METER

Part #: 037601
$81.10
QTY:

Sold By: EA

6-1

On Diagram

PANEL

Part #: 034485
$36.70
QTY:

Sold By: EA

6-2

On Diagram

COVER

Part #: 034999
$18.80
QTY:

Sold By: EA

7

On Diagram

SWITCH

Part #: 024731
$40.30
QTY:

Sold By: EA

8

On Diagram

SWITCH

Part #: 024732
$46.50
QTY:

Sold By: EA

9-1

On Diagram

LAMP

Part #: 042893
$199.80
QTY:

Sold By: EA

9-2

On Diagram

WIRE

Part #: 035825
$12.20
QTY:

Sold By: EA

10-1

On Diagram

NUT 10-32 BRASS

Part #: 031900
$0.30
QTY:

Sold By: EA

10-2

On Diagram

LOCKWASHER 10 MED BRONZE

Part #: 031902
$0.20
QTY:

Sold By: EA

11

On Diagram

NUT 10-24 KEPS SS

Part #: 031904
$1.60
QTY:

Sold By: EA

12

On Diagram

HARNESS

Part #: 036538
$54.40
QTY:

Sold By: EA

13

On Diagram

LOCKRING

Part #: 031999
$1.60
QTY:

Sold By: EA

14

On Diagram

SCREW 8-32 X 3/8 TRUSS

Part #: 034421
$2.00
QTY:

Sold By: EA

15-1

On Diagram

HARNESS

Part #: 038123
$112.50
QTY:

Sold By: EA

15-2

On Diagram

HARNESS

Part #: 036232

This part is no longer available.

$22.80
QTY:

Sold By: EA

16

On Diagram

BUSHING

Part #: 023939
$0.80
QTY:

Sold By: EA

17-1

On Diagram

PANEL

Part #: 038178

BEFORE YOU ORDER - If your 5.0 BCDB genset was manufactured after February 1999 (date code D902) use panel box and harness part number 043795. CLICK HERE to see the manufacturing date code guide.

$467.20
QTY:

Sold By: EA

17-2

On Diagram

BOX

Part #: 034243
$50.60
QTY:

Sold By: EA

18

On Diagram

PLATE

Part #: 013856
$1.30
QTY:

Sold By: EA

19-1

On Diagram

SCREW 8-32 X 7/8 SS

Part #: 031866
$0.50
QTY:

Sold By: EA

19-2

On Diagram

NUT 8-32 SS

Part #: 031842
$0.20
QTY:

Sold By: EA

19-3

On Diagram

WASHER

Part #: 031843
$0.20
QTY:

Sold By: EA

19-4

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

20

On Diagram

BLOCK

Part #: 013320

This part is no longer available.

$30.30
QTY:

Sold By: EA

21

On Diagram

MARKER

Part #: 013363
$2.40
QTY:

Sold By: EA

22

On Diagram

JUMPER

Part #: 013938
$0.90
QTY:

Sold By: EA

23-1

On Diagram

SCREW 6-32 X 5/8 SS

Part #: 031855
$0.60
QTY:

Sold By: EA

23-2

On Diagram

NUT 6-32 KEPS

Part #: 050234
$0.30
QTY:

Sold By: EA

23-3

On Diagram

WASHER

Part #: 031838
$0.20
QTY:

Sold By: EA

24

On Diagram

PLATE

Part #: 015222
$1.50
QTY:

Sold By: EA

24-4

On Diagram

NUT 15/32-32 HEX

Part #: 038042
$0.70
QTY:

Sold By: EA

25

On Diagram

MARKER

Part #: 019122
$2.50
QTY:

Sold By: EA

26

On Diagram

BLOCK

Part #: 019121
$36.00
QTY:

Sold By: EA

27-1

On Diagram

SWITCH

Part #: 033259
$22.40
QTY:

Sold By: EA

27-2

On Diagram

BOOT

Part #: 033258
$19.40
QTY:

Sold By: EA

27-3

On Diagram

LABEL

Part #: 033251
$4.50
QTY:

Sold By: EA

28

On Diagram

BLOCK

Part #: 039928
$36.20
QTY:

Sold By: EA

29

On Diagram

MARKER

Part #: 039929
$5.00
QTY:

Sold By: EA

30

On Diagram

PLATE

Part #: 015222
$1.50
QTY:

Sold By: EA

31-1

On Diagram

SCREW 6-32 X 5/8 SS

Part #: 031855
$0.60
QTY:

Sold By: EA

31-2

On Diagram

SCREW 6-32x7/8 SS BINDING HEAD

Part #: 031857
$0.50
QTY:

Sold By: EA

31-3

On Diagram

NUT 6-32 KEPS

Part #: 050234
$0.30
QTY:

Sold By: EA

31-4

On Diagram

JUMPER

Part #: 015223
$1.50
QTY:

Sold By: EA

32-1

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

32-2

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

33-1

On Diagram

RELAY 12VDC 40A

Part #: 037833
$31.60
QTY:

Sold By: EA

33-2

On Diagram

RELAY 12VDC 40A

Part #: 037833
$31.60
QTY:

Sold By: EA

34-1

On Diagram

NUT 10-32 KEPS

Part #: 200125
$0.30
QTY:

Sold By: EA

34-2

On Diagram

NUT 10-32 KEPS

Part #: 200125
$0.30
QTY:

Sold By: EA

35

On Diagram

DIODE

Part #: 041081
$5.10
QTY:

Sold By: EA

36

On Diagram

DECAL

Part #: 024968
$8.50
QTY:

Sold By: EA
