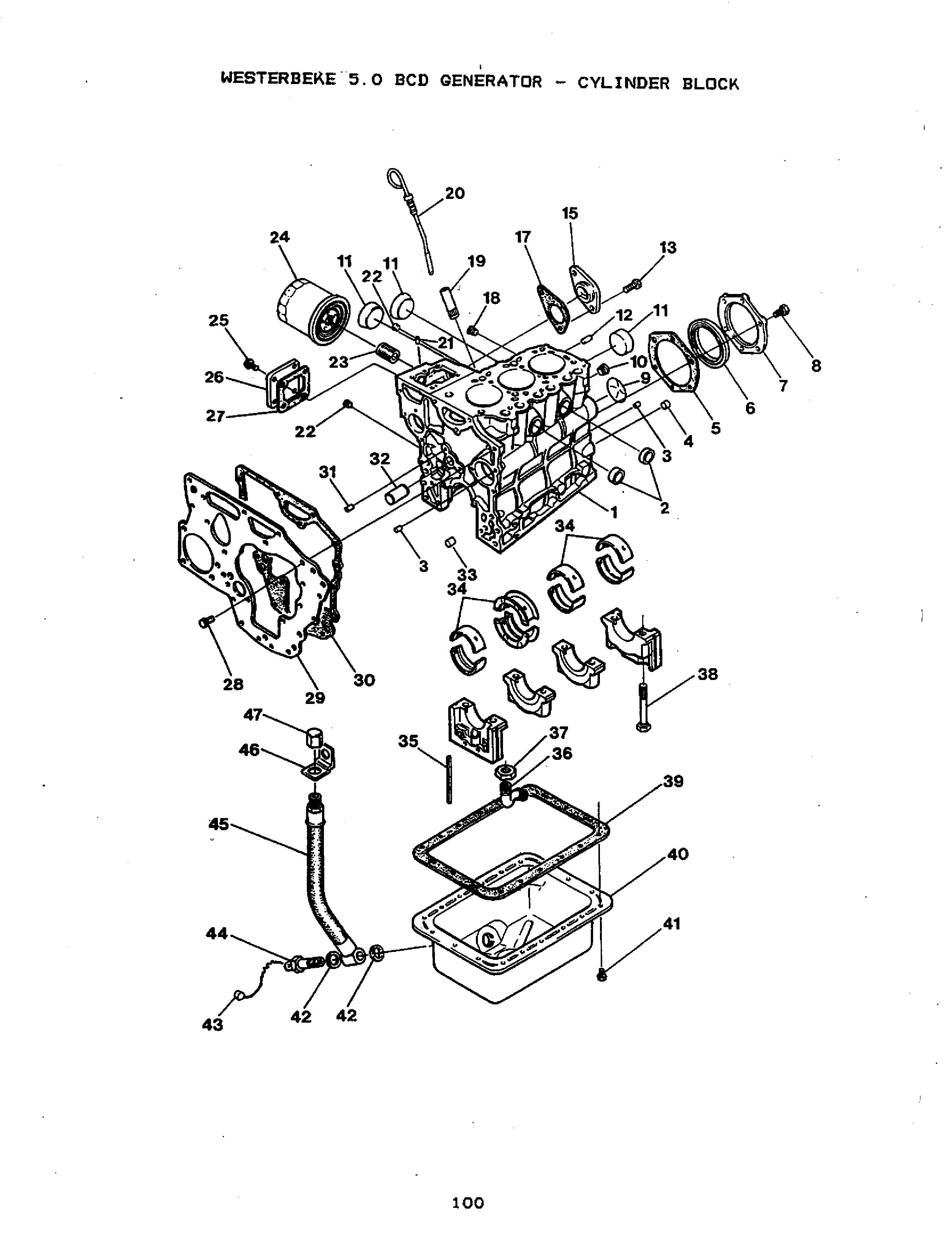

CYLINDER BLOCK

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

BLOCK

Part #: 038499

This part is replaced with part number 042400

Price not found
QTY:

Sold By: EA

1-2

On Diagram

BLOCK

Part #: 038499

This part is replaced with part number 042400

Price not found
QTY:

Sold By: EA

1-3

On Diagram

BLOCK

Part #: 042400

This part is replaced with part number 039953

Price not found
QTY:

Sold By: EA

2

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

3

On Diagram

DOWEL

Part #: 033212
Price not found
QTY:

Sold By: EA

4

On Diagram

DOWEL

Part #: 030708
$3.90
QTY:

Sold By: EA

5

On Diagram

GASKET

Part #: 036963
$13.90
QTY:

Sold By: EA

6

On Diagram

SEAL

Part #: 036917
$49.70
QTY:

Sold By: EA

7

On Diagram

FLANGE

Part #: 036945
$79.10
QTY:

Sold By: EA

8

On Diagram

CAPSCREW M 6x20 DIN 933

Part #: 018804
$0.70
QTY:

Sold By: EA

9

On Diagram

PLUG

Part #: 036940
$4.90
QTY:

Sold By: EA

10

On Diagram

PLUG 1/4-19 BSPT

Part #: 030712
$4.30
QTY:

Sold By: EA

11

On Diagram

PLUG

Part #: 033657
$5.90
QTY:

Sold By: EA

12

On Diagram

DOWEL 8MM x 18MM DIN 6325

Part #: 030272
$3.20
QTY:

Sold By: EA

13

On Diagram

CAPSCREW M 8x16 DIN 933

Part #: 016789
$0.70
QTY:

Sold By: EA

15

On Diagram

COVER

Part #: 038679

This part is no longer available.

$23.80
QTY:

Sold By: EA

17

On Diagram

GASKET

Part #: 036987
$4.80
QTY:

Sold By: EA

18

On Diagram

PLUG 1/4-19 BSPT

Part #: 030712
$4.30
QTY:

Sold By: EA

19

On Diagram

TUBE

Part #: 037073

This part is no longer available. Use part number 046909.

$10.80
QTY:

Sold By: EA

20

On Diagram

DIPSTICK

Part #: 037072
$38.90
QTY:

Sold By: EA

21

On Diagram

DOWEL

Part #: 036943
$16.70
QTY:

Sold By: EA

22

On Diagram

PLUG 1/16-27

Part #: 030239
$10.00
QTY:

Sold By: EA

23

On Diagram

NIPPLE

Part #: 030214
$30.30
QTY:

Sold By: EA

24

On Diagram

FILTER

Part #: 036918
$16.40
QTY:

Sold By: EA

25-1

On Diagram

CAPSCREW M 6x14 DIN 933

Part #: 031810
$0.50
QTY:

Sold By: EA

25-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

26

On Diagram

COVER

Part #: 037045
$35.90
QTY:

Sold By: EA

27

On Diagram

GASKET

Part #: 036981
$4.80
QTY:

Sold By: EA

28-1

On Diagram

CAPSCREW M 6x14 DIN 933

Part #: 031810
$0.50
QTY:

Sold By: EA

28-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

29

On Diagram

PLATE

Part #: 036997
$162.90
QTY:

Sold By: EA

30

On Diagram

GASKET

Part #: 037004
$38.00
QTY:

Sold By: EA

31

On Diagram

DOWEL

Part #: 030707
$4.60
QTY:

Sold By: EA

32

On Diagram

SHAFT

Part #: 037005
$51.00
QTY:

Sold By: EA

33

On Diagram

DOWEL

Part #: 037114
$5.40
QTY:

Sold By: EA

34-1

On Diagram

BEARING SET

Part #: 037018
$146.00
QTY:

Sold By: ST

34-2

On Diagram

BEARING SET

Part #: 037062
$150.80
QTY:

Sold By: ST

34-3

On Diagram

BEARING SET

Part #: 037063
$150.80
QTY:

Sold By: ST

35

On Diagram

SEAL

Part #: 036962
$11.80
QTY:

Sold By: EA

36

On Diagram

STRAINER

Part #: 037068
$57.60
QTY:

Sold By: EA

37

On Diagram

NUT M14 X 1.5 DIN 936

Part #: 031809
$1.60
QTY:

Sold By: EA

38

On Diagram

BOLT

Part #: 036916
$7.70
QTY:

Sold By: EA

39

On Diagram

GASKET

Part #: 036988
$35.60
QTY:

Sold By: EA

40

On Diagram

SUMP

Part #: 037095
$341.20
QTY:

Sold By: EA

41-1

On Diagram

CAPSCREW M 6x12 DIN 933

Part #: 031825
$0.60
QTY:

Sold By: EA

41-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

42

On Diagram

WASHER

Part #: 036493
$1.50
QTY:

Sold By: EA

43

On Diagram

SEAL

Part #: 037393
$1.30
QTY:

Sold By: EA

44

On Diagram

BOLT

Part #: 036819
$32.50
QTY:

Sold By: EA

45

On Diagram

HOSE

Part #: 030846
$90.40
QTY:

Sold By: EA

46

On Diagram

BRACKET

Part #: 024922
$8.90
QTY:

Sold By: EA

47

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905
$4.50
QTY:

Sold By: EA
