Westerbeke Logo

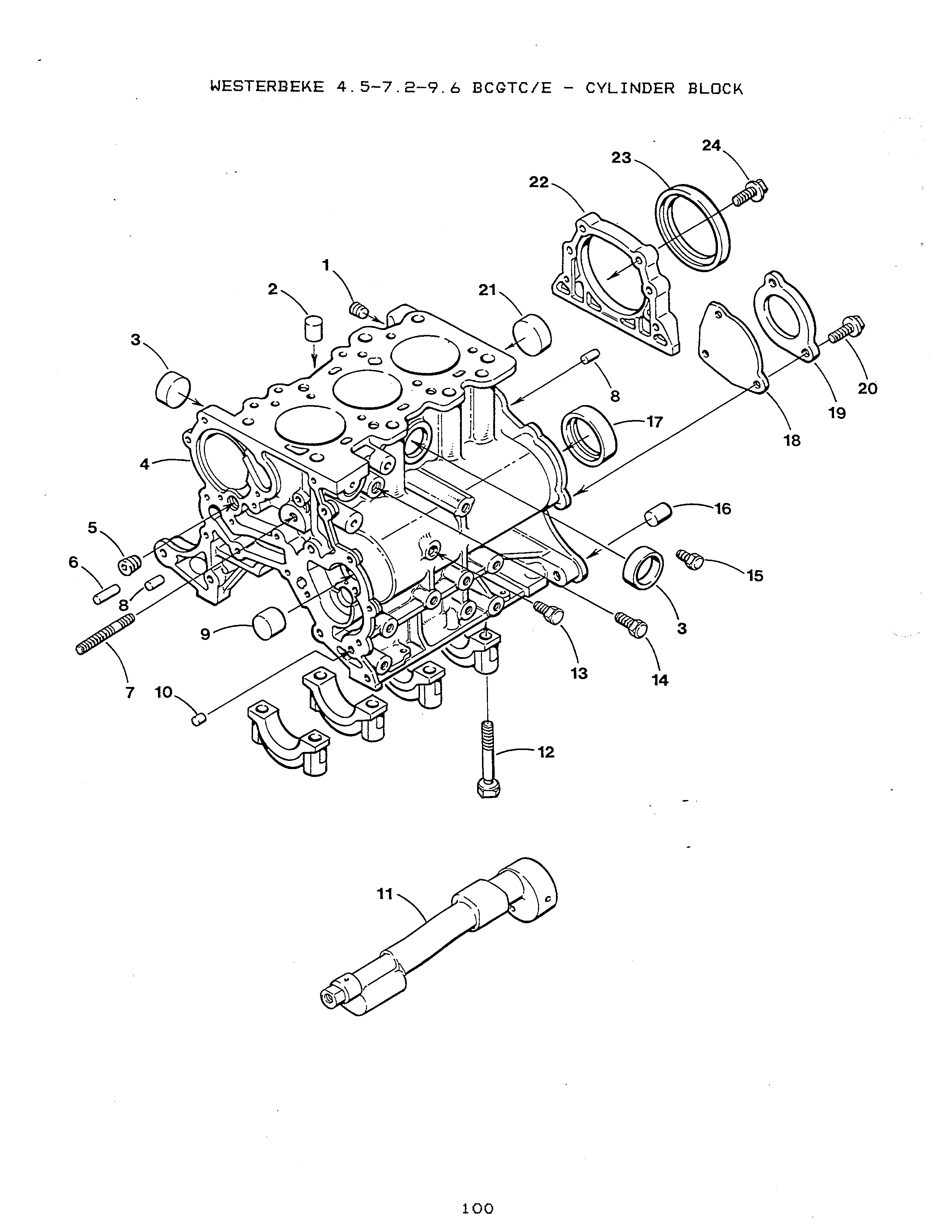

CYLINDER BLOCK

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PLUG 1/8-28 BSPT DIN 906

Part #: 030711
$4.40
QTY:

Sold By: EA

2

On Diagram

DOWEL

Part #: 043070
$5.70
QTY:

Sold By: EA

3

On Diagram

PLUG

Part #: 024374
$4.70
QTY:

Sold By: EA

4

On Diagram

ENGINE

Part #: 043651

This part is no longer available.

$3,365.40
QTY:

Sold By: EA

5

On Diagram

PLUG 1/4-19 BSPT

Part #: 030712
$4.30
QTY:

Sold By: EA

6

On Diagram

DOWEL

Part #: 042981
$5.20
QTY:

Sold By: EA

7

On Diagram

STUD M 8x45 DIN 939

Part #: 031282
$7.00
QTY:

Sold By: EA

8

On Diagram

DOWEL 6MM x 14MM DIN 6325

Part #: 041417

This part is no longer available.

$0.70
QTY:

Sold By: EA

9

On Diagram

BEARING

Part #: 043002
$42.00
QTY:

Sold By: EA

10

On Diagram

DOWEL

Part #: 033212
Price not found
QTY:

Sold By: EA

11

On Diagram

SHAFT

Part #: 043047

This part is no longer available.

$360.00
QTY:

Sold By: EA

12

On Diagram

BOLT

Part #: 036916
$7.70
QTY:

Sold By: EA

13

On Diagram

PLUG 1/8-28 BSPT DIN 906

Part #: 030711
$4.40
QTY:

Sold By: EA

14

On Diagram

PLUG 1/4 NPT

Part #: 013341
$4.10
QTY:

Sold By: EA

15

On Diagram

PLUG 1/16 BSPT

Part #: 042945
$8.60
QTY:

Sold By: EA

16

On Diagram

DOWEL

Part #: 043070
$5.70
QTY:

Sold By: EA

17

On Diagram

BEARING

Part #: 043003
$50.80
QTY:

Sold By: EA

18

On Diagram

GASKET

Part #: 043027
$6.70
QTY:

Sold By: EA

19

On Diagram

COVER

Part #: 042970
$10.30
QTY:

Sold By: EA

20

On Diagram
$1.80
QTY:

Sold By: EA

21

On Diagram

PLUG

Part #: 024349
$8.50
QTY:

Sold By: EA

22

On Diagram

FLANGE

Part #: 042976
$45.00
QTY:

Sold By: EA

23

On Diagram

SEAL

Part #: 043046
$58.90
QTY:

Sold By: EA

24

On Diagram
$1.80
QTY:

Sold By: EA
