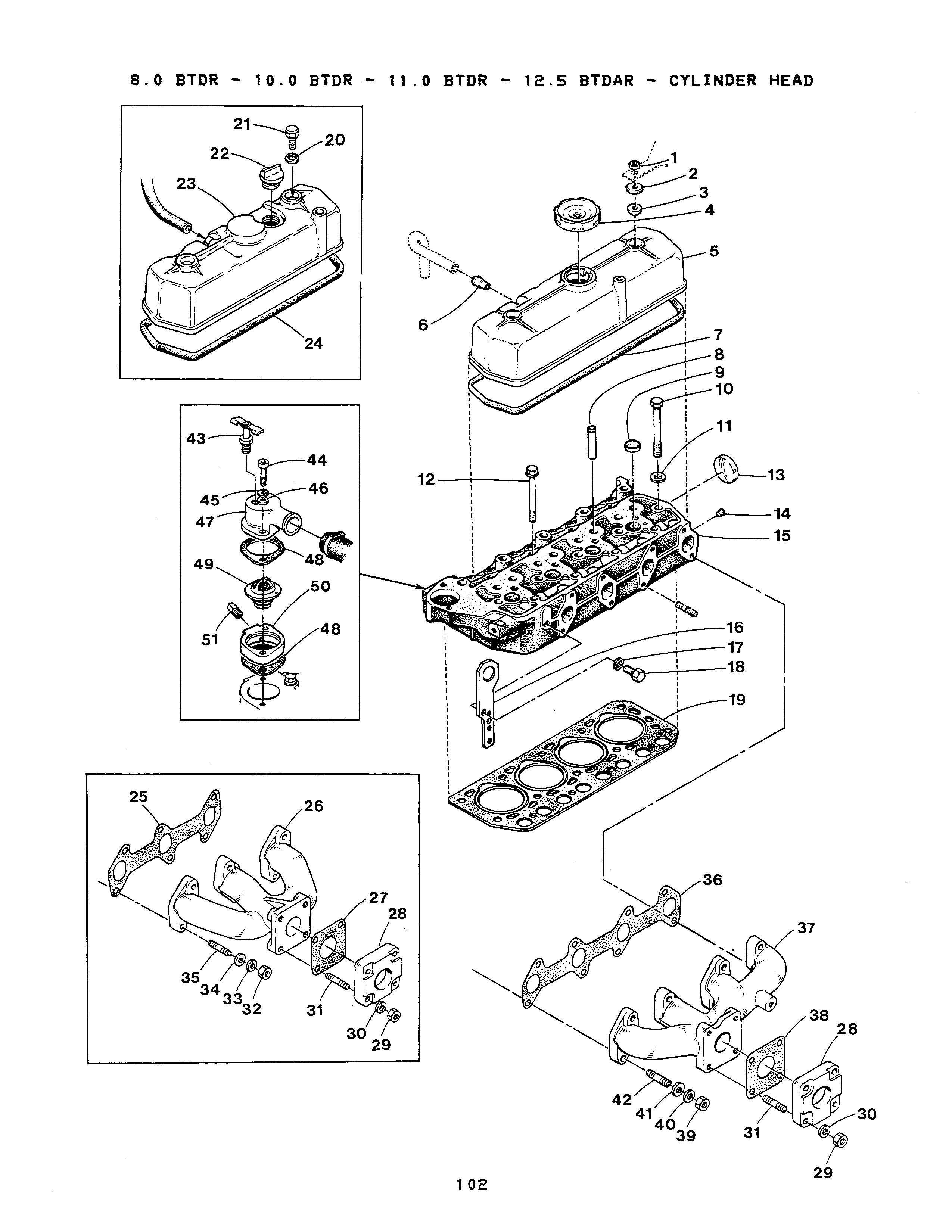

CYLINDER HEAD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

2

On Diagram

WASHER

Part #: 030517
$9.40
QTY:

Sold By: EA

3

On Diagram

SEAL

Part #: 030780
$125.70
QTY:

Sold By: EA

4

On Diagram

CAP

Part #: 030237
$77.40
QTY:

Sold By: EA

5

On Diagram

COVER

Part #: 030514
$375.00
QTY:

Sold By: EA

6

On Diagram

NIPPLE

Part #: 030219
$12.60
QTY:

Sold By: EA

7

On Diagram

GASKET

Part #: 030516
$36.90
QTY:

Sold By: EA

8-1

On Diagram

GUIDE

Part #: 030506
$96.40
QTY:

Sold By: EA

8-2

On Diagram

GUIDE

Part #: 030506
$96.40
QTY:

Sold By: EA

9-1

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

9-2

On Diagram

PLUG

Part #: 024373
$4.70
QTY:

Sold By: EA

10-1

On Diagram

BOLT

Part #: 030512
$75.80
QTY:

Sold By: EA

10-2

On Diagram

BOLT

Part #: 030512
$75.80
QTY:

Sold By: EA

11-1

On Diagram

WASHER

Part #: 030243
$6.20
QTY:

Sold By: EA

11-2

On Diagram

WASHER

Part #: 030243
$6.20
QTY:

Sold By: EA

12-1

On Diagram

BOLT

Part #: 030383
$22.50
QTY:

Sold By: EA

12-2

On Diagram

BOLT

Part #: 030383
$22.50
QTY:

Sold By: EA

13

On Diagram

PLUG

Part #: 030717
$22.10
QTY:

Sold By: EA

14

On Diagram

PLUG 1/8-28 BSPT DIN 906

Part #: 030711
$4.40
QTY:

Sold By: EA

15-1

On Diagram

HEAD

Part #: 039713

This part is no longer available.

$2,654.90
QTY:

Sold By: EA

15-2

On Diagram

HEAD

Part #: 039720

This part is no longer available.

$2,433.70
QTY:

Sold By: EA

15-3

On Diagram

HEAD

Part #: 039716

This part is no longer available.

$2,751.10
QTY:

Sold By: EA

15-4

On Diagram

HEAD

Part #: 038930
$919.00
QTY:

Sold By: EA

16

On Diagram

EYE

Part #: 030131
$32.30
QTY:

Sold By: EA

17

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

18

On Diagram

CAPSCREW M10x1.25x25 DIN 961

Part #: 024952
$2.20
QTY:

Sold By: EA

19-1

On Diagram

GASKET

Part #: 030509
$147.30
QTY:

Sold By: EA

19-2

On Diagram

GASKET

Part #: 037661
$226.90
QTY:

Sold By: EA

19-3

On Diagram

GASKET

Part #: 030507
$191.30
QTY:

Sold By: EA

19-4

On Diagram

GASKET

Part #: 037687

This part number is no longer available. Use head gasket part number 044853.

$206.10
QTY:

Sold By: EA

20

On Diagram

WASHER

Part #: 030289
$7.00
QTY:

Sold By: EA

21

On Diagram

CAPSCREW M 8x11 DIN 933

Part #: 034672
$17.90
QTY:

Sold By: EA

22-1

On Diagram

CAP

Part #: 033126
$32.20
QTY:

Sold By: EA

22-2

On Diagram

O-RING

Part #: 033123
$3.30
QTY:

Sold By: EA

23

On Diagram

COVER

Part #: 037671
$187.50
QTY:

Sold By: EA

24

On Diagram

GASKET

Part #: 030515
$36.30
QTY:

Sold By: EA

25

On Diagram

GASKET

Part #: 034246
$31.20
QTY:

Sold By: EA

26

On Diagram

MANIFOLD

Part #: 039411
$299.50
QTY:

Sold By: EA

27

On Diagram

GASKET

Part #: 039477
$15.70
QTY:

Sold By: EA

28

On Diagram

ADAPTER

Part #: 039508
$161.20
QTY:

Sold By: EA

29

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

30

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

31

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

32

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

33

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

34

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

35

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

36

On Diagram

GASKET

Part #: 034657
$29.40
QTY:

Sold By: EA

37

On Diagram

MANIFOLD

Part #: 039407
$1,407.70
QTY:

Sold By: EA

38

On Diagram

GASKET

Part #: 039487
$14.40
QTY:

Sold By: EA

39

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

40

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

41

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

42

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

43

On Diagram

PETCOCK

Part #: 011471
$12.90
QTY:

Sold By: EA

44

On Diagram

CAPSCREW M 8x45 DIN 912

Part #: 031259
$1.70
QTY:

Sold By: EA

45

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

46

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

47

On Diagram

HOUSING

Part #: 034416
$63.80
QTY:

Sold By: EA

48

On Diagram

GASKET

Part #: 034196
$2.50
QTY:

Sold By: EA

49

On Diagram

THERMOSTAT 180F

Part #: 024688
$15.60
QTY:

Sold By: EA

50

On Diagram

SPACER

Part #: 035430

This part is no longer available.

$99.50
QTY:

Sold By: EA

51

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$3.80
QTY:

Sold By: EA
