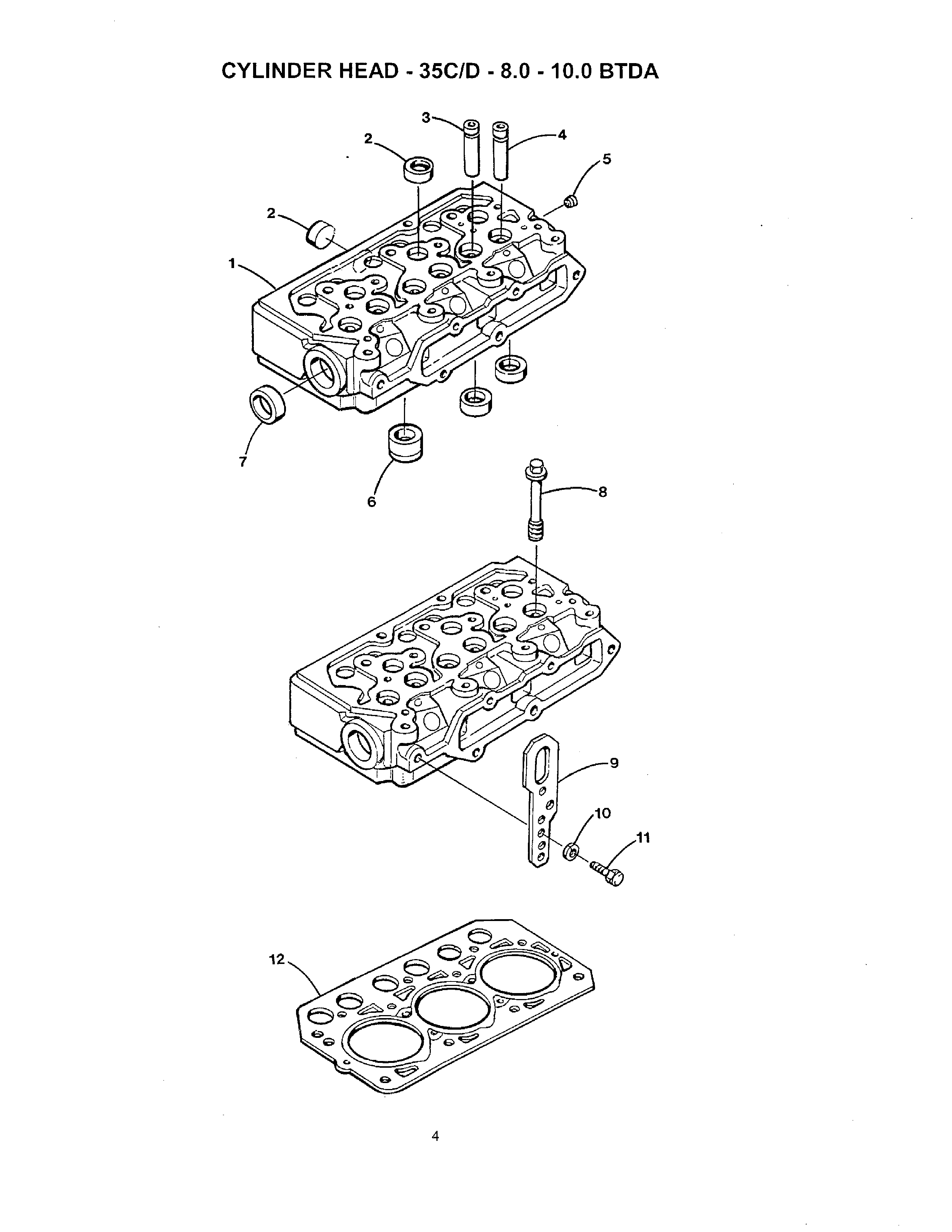

CYLINDER HEAD

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

HEAD

Part #: 048096

$2,606.70

QTY:

Sold By: EA

1-2

On Diagram

HEAD

Part #: 048095

$1,768.00

QTY:

Sold By: EA

2

On Diagram

PLUG

Part #: 024373

$4.70

QTY:

Sold By: EA

3

On Diagram

GUIDE

Part #: 045173

$14.70

QTY:

Sold By: EA

4-1

On Diagram

GUIDE

Part #: 045174

$17.70

QTY:

Sold By: EA

4-2

On Diagram

GUIDE

Part #: 048091

$17.70

QTY:

Sold By: EA

5

On Diagram

PLUG 1/8-28 BSPT DIN 906

Part #: 030711

$4.40

QTY:

Sold By: EA

6-1

On Diagram

INSERT

Part #: 045178

$3,614.10

QTY:

Sold By: EA

6-2

On Diagram

INSERT

Part #: 047127

$267.10

QTY:

Sold By: EA

7

On Diagram

PLUG

Part #: 024349

$8.50

QTY:

Sold By: EA

8

On Diagram

BOLT

Part #: 045175

$11.80

QTY:

Sold By: EA

9-1

On Diagram

EYE

Part #: 030131

$32.30

QTY:

Sold By: EA

9-2

On Diagram

EYE

Part #: 030131

$32.30

QTY:

Sold By: EA

10-1

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262

$0.40

QTY:

Sold By: EA

10-2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262

$0.40

QTY:

Sold By: EA

11-1

On Diagram

CAPSCREW M10x1.25x20 DIN 961

Part #: 024951

$1.70

QTY:

Sold By: EA

11-2

On Diagram

CAPSCREW M10x1.25x20 DIN 961

Part #: 024951

$1.70

QTY:

Sold By: EA

12

On Diagram

GASKET

Part #: 046914

$124.80

QTY:

Sold By: EA
