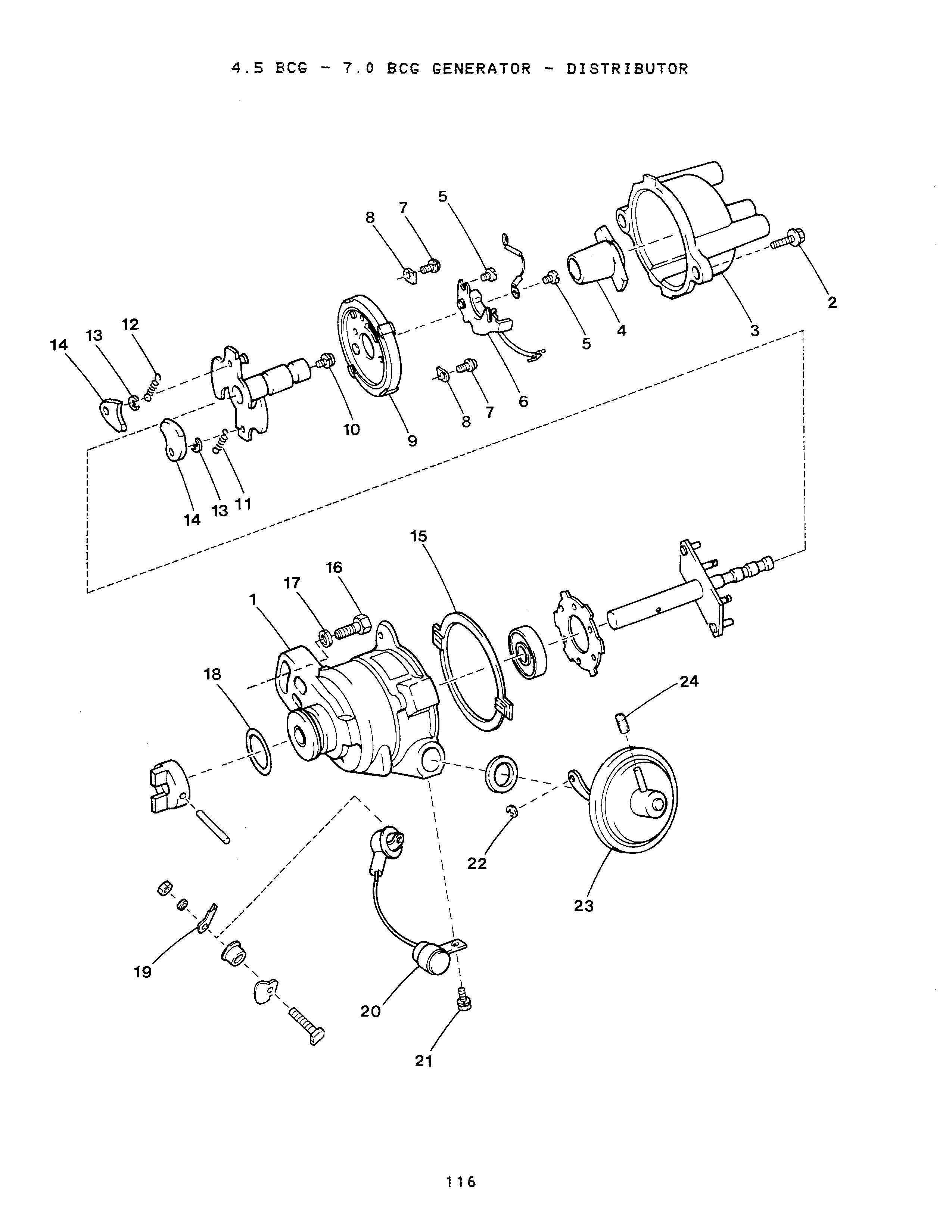

DISTRIBUTOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

DISTRIBUTOR

Part #: 037924

This part is no longer available.

$782.60
QTY:

Sold By: EA

1-2

On Diagram

DISTRIBUTR

Part #: 038561

This part is replaced with part number 037924

Price not found
QTY:

Sold By: EA

1-3

On Diagram

DISTRIBUTOR

Part #: 037924

This part is no longer available.

$782.60
QTY:

Sold By: EA

2

On Diagram

BOLT

Part #: 037972
$19.10
QTY:

Sold By: EA

3

On Diagram

CAP

Part #: 037925
$141.00
QTY:

Sold By: EA

4-1

On Diagram

ROTOR

Part #: 037926

This part is replaced with part number 042201

Price not found
QTY:

Sold By: EA

4-2

On Diagram

ROTOR

Part #: 038562

This part is replaced with part number 037926

Price not found
QTY:

Sold By: EA

5

On Diagram

SCREW M 4x 5 DIN 7985A

Part #: 035744
$4.10
QTY:

Sold By: EA

6

On Diagram

CONTACT SET

Part #: 037929
$68.20
QTY:

Sold By: EA

7

On Diagram

SCREW

Part #: 037969
$3.10
QTY:

Sold By: EA

8

On Diagram

WASHER

Part #: 037971
$3.60
QTY:

Sold By: EA

9

On Diagram

PLATE

Part #: 037927

This part is no longer available.

Price not found
QTY:

Sold By: EA

10

On Diagram

SCREW

Part #: 037970
$1.40
QTY:

Sold By: EA

11-1

On Diagram

SPRING

Part #: 037931
$8.30
QTY:

Sold By: EA

11-2

On Diagram

SPRING

Part #: 038564

This part is replaced with part number 037931

Price not found
QTY:

Sold By: EA

12-1

On Diagram

SPRING

Part #: 037932
$19.60
QTY:

Sold By: EA

12-2

On Diagram

SPRING

Part #: 038565

This part is replaced with part number 037932

Price not found
QTY:

Sold By: EA

13

On Diagram

RING

Part #: 035745
$3.00
QTY:

Sold By: EA

14-1

On Diagram

WEIGHT

Part #: 037930
$52.40
QTY:

Sold By: EA

14-2

On Diagram

WEIGHT

Part #: 038563

This part is replaced with part number 037930

Price not found
QTY:

Sold By: EA

15

On Diagram

COVER

Part #: 037928
$18.70
QTY:

Sold By: EA

16-1

On Diagram

CAPSCREW

Part #: 035781
$13.70
QTY:

Sold By: EA

16-2

On Diagram

CAPSCREW M 8x25 PIN SECURITY

Part #: 041569
$9.10
QTY:

Sold By: EA

17-2

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

17-3

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

18

On Diagram

O-RING

Part #: 037973
$50.80
QTY:

Sold By: EA

19

On Diagram

TERMINAL

Part #: 037974
$3.50
QTY:

Sold By: EA

20

On Diagram

CONDENSER

Part #: 037975

This part is no longer available. Use part number 035681.

$72.80
QTY:

Sold By: EA

21

On Diagram

SCREW

Part #: 035673

This part is no longer available.

$1.40
QTY:

Sold By: EA

22

On Diagram

RING

Part #: 035745
$3.00
QTY:

Sold By: EA

23

On Diagram

MODULE

Part #: 037933
$202.50
QTY:

Sold By: EA

24

On Diagram

CAP

Part #: 033885
$0.40
QTY:

Sold By: EA
