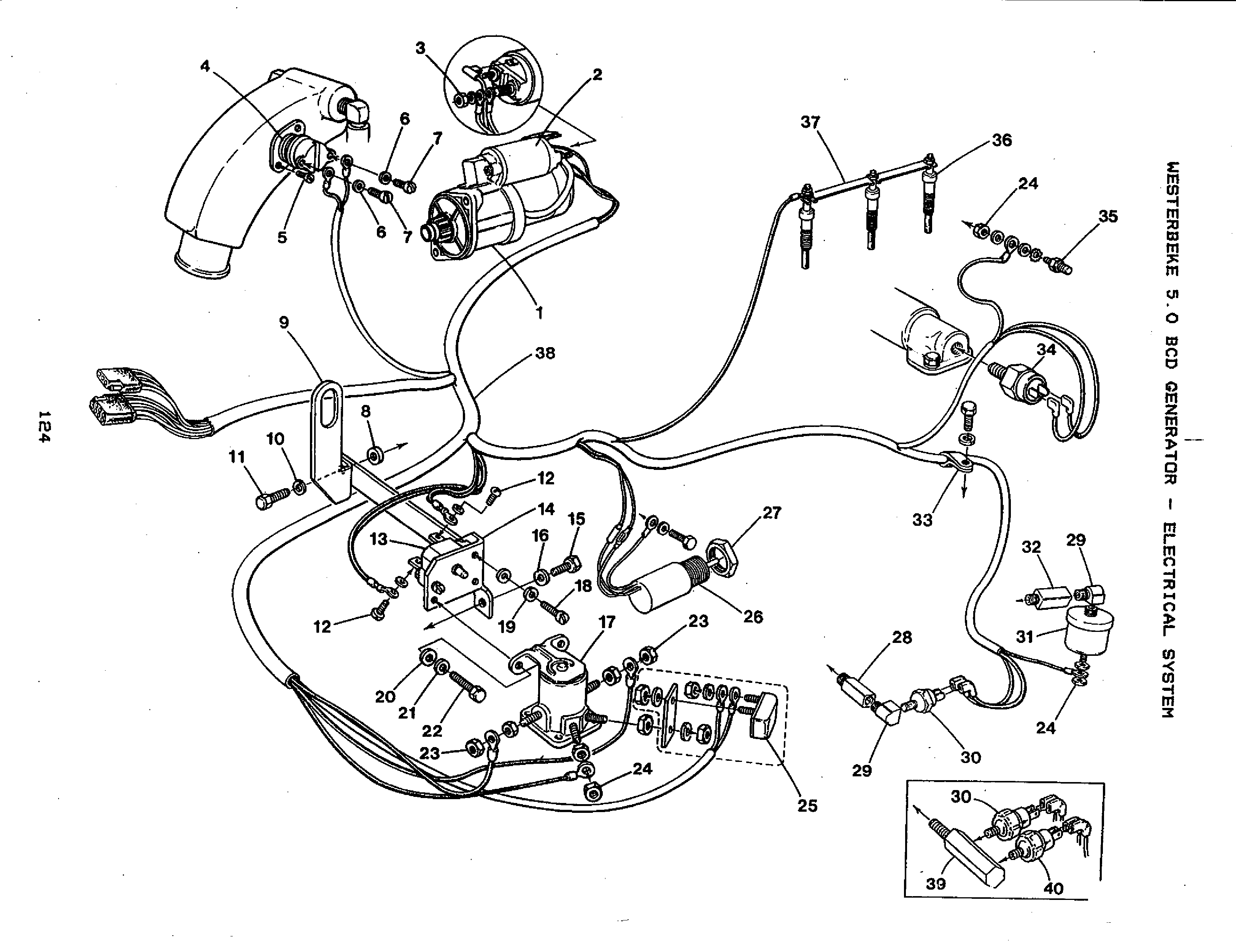

ELECTRICAL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

2

On Diagram

SOLENOID

Part #: 036218
$235.60
QTY:

Sold By: EA

3

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

4

On Diagram

SWITCH

Part #: 032923
$85.60
QTY:

Sold By: EA

5

On Diagram

SCREW 6-32 X 1/4 TAPPING

Part #: 035711
$0.40
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

7

On Diagram

SCREW 8-32 x 1/4 BRASS

Part #: 031911
$0.50
QTY:

Sold By: EA

8

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

9

On Diagram

EYE

Part #: 038087
$40.40
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

12

On Diagram

SCREW 8-32 X 1/4 SS

Part #: 031861
$0.30
QTY:

Sold By: EA

13

On Diagram

BREAKER

Part #: 043422
$71.70
QTY:

Sold By: EA

14

On Diagram

BRACKET

Part #: 038086
$98.80
QTY:

Sold By: EA

15

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

17

On Diagram

SOLENOID 12VDC

Part #: 024639
$50.00
QTY:

Sold By: EA

18

On Diagram

SCREW 8-32 X 7/8 SS

Part #: 031866
$0.50
QTY:

Sold By: EA

19

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

20

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

22

On Diagram

CAPSCREW 1/4NCx1/2

Part #: 031501
$0.30
QTY:

Sold By: EA

23

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

24

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

25

On Diagram

BREAKER

Part #: 036563
$33.00
QTY:

Sold By: EA

26

On Diagram

SOLENOID

Part #: 037100
$175.60
QTY:

Sold By: EA

27

On Diagram

NUT

Part #: 034669
$17.30
QTY:

Sold By: EA

28

On Diagram

ADAPTER 1/8 BSPT x 1/8 NPT

Part #: 037508
$25.80
QTY:

Sold By: EA

29

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340
$9.80
QTY:

Sold By: EA

30

On Diagram

SWITCH

Part #: 037323
$31.20
QTY:

Sold By: EA

31

On Diagram

SENDER

Part #: 024132
$148.50
QTY:

Sold By: EA

32

On Diagram

ADAPTER 1/8 BSPT TO 1/8 NPT

Part #: 024844
$32.30
QTY:

Sold By: EA

33

On Diagram

CLAMP

Part #: 038074
$1.30
QTY:

Sold By: EA

34

On Diagram

SWITCH

Part #: 039550
$39.10
QTY:

Sold By: EA

35

On Diagram

SENDER

Part #: 035109
$69.60
QTY:

Sold By: EA

36

On Diagram

GLOWPLUG 12VDC

Part #: 036961
$59.60
QTY:

Sold By: EA

37

On Diagram

STRAP

Part #: 037028
$14.30
QTY:

Sold By: EA

38

On Diagram

HARNESS

Part #: 038123
$112.50
QTY:

Sold By: EA

39

On Diagram

ADAPTER 1/8 BSPT TO 1/8 NPT'F'

Part #: 043812
$34.00
QTY:

Sold By: EA

40

On Diagram

SWITCH

Part #: 011552

Replaced By Part Number 056484

$31.20
QTY:

Sold By: EA
