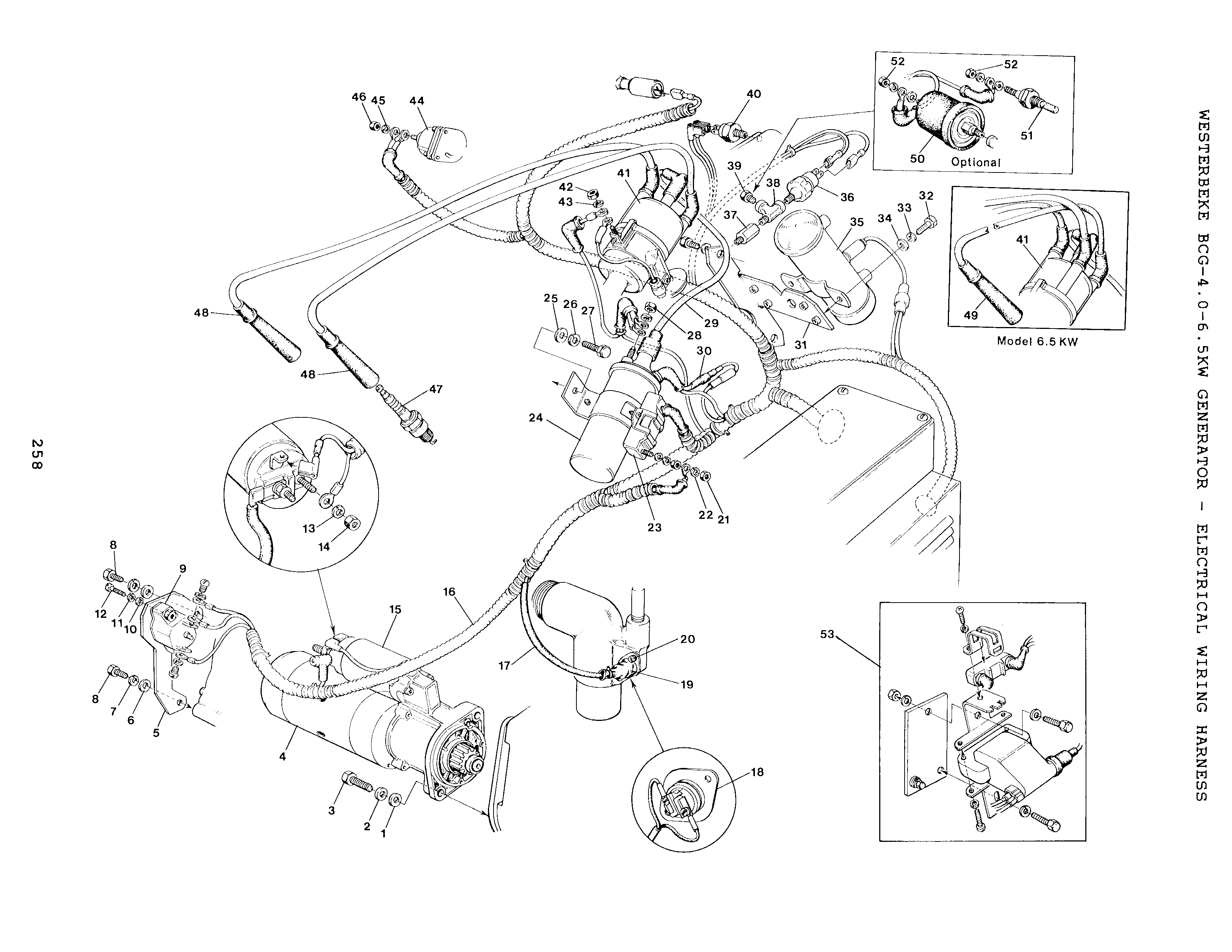

ELECTRICAL WIRING HARNESS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

4

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

5-1

On Diagram

BRACKET

Part #: 035185

This part is no longer available.

Price not found
QTY:

Sold By: EA

5-2

On Diagram

BRACKET

Part #: 035095
$65.60
QTY:

Sold By: EA

6

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

8-1

On Diagram

CAPSCREW M 8x55 JIS 6 W/LW-FW

Part #: 035805
$3.50
QTY:

Sold By: EA

8-2

On Diagram

CAPSCREW M10x1.25x20 DIN 961

Part #: 024951
$1.70
QTY:

Sold By: EA

9

On Diagram

BREAKER

Part #: 024683
$109.20
QTY:

Sold By: EA

10

On Diagram

WASHER

Part #: 031843
$0.20
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER 8 MED SS

Part #: 031844
$0.30
QTY:

Sold By: EA

12

On Diagram

SCREW 8-32 X 7/8 SS

Part #: 031866
$0.50
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

14

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

15

On Diagram

SOLENOID

Part #: 036218
$235.60
QTY:

Sold By: EA

16

On Diagram

HARNESS

Part #: 035696

This part is no longer available.

$169.20
QTY:

Sold By: EA

17

On Diagram

TUBING

Part #: 033213

ATTENTION - IMPORTANT: This tubing is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.40
QTY:

Sold By: IN

18

On Diagram

SWITCH

Part #: 032923
$85.60
QTY:

Sold By: EA

19

On Diagram

BOOT

Part #: 035754
$8.00
QTY:

Sold By: EA

20

On Diagram

SCREW 6-32 X 1/4 TAPPING

Part #: 035711
$0.40
QTY:

Sold By: EA

21

On Diagram

NUT M 5 DIN 934

Part #: 018241
$1.20
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER M 5 DIN 127

Part #: 031780
$0.20
QTY:

Sold By: EA

23-1

On Diagram

RESISTOR

Part #: 035665

This part is no longer available.

Price not found
QTY:

Sold By: EA

23-2

On Diagram

RESISTOR

Part #: 035665

This part is no longer available.

Price not found
QTY:

Sold By: EA

24-1

On Diagram

COIL

Part #: 035667

This part is no longer available.

Price not found
QTY:

Sold By: EA

24-2

On Diagram

COIL

Part #: 035667

This part is no longer available.

Price not found
QTY:

Sold By: EA

25-1

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

25-2

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

25-3

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

26-1

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

26-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

26-3

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

27-1

On Diagram

CAPSCREW 5/16NCx1/2

Part #: 031551
$0.40
QTY:

Sold By: EA

27-2

On Diagram

CAPSCREW M 6x60 DIN 931

Part #: 033351
$0.80
QTY:

Sold By: EA

27-3

On Diagram

CAPSCREW 5/16NCx3/4

Part #: 031553
$0.40
QTY:

Sold By: EA

27-4

On Diagram

NUT 5/16-18 NC

Part #: 031756
$0.20
QTY:

Sold By: EA

27-5

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

28

On Diagram

NUT M 5 DIN 934

Part #: 018241
$1.20
QTY:

Sold By: EA

29-1

On Diagram

WIRE

Part #: 035832
$35.40
QTY:

Sold By: EA

29-2

On Diagram

WIRE

Part #: 035831

This part is no longer available. Use part number 035832.

$26.70
QTY:

Sold By: EA

30

On Diagram

DIODE

Part #: 035671
$67.90
QTY:

Sold By: EA

31

On Diagram

BRACKET

Part #: 035288

This part is no longer available.

Price not found
QTY:

Sold By: each

32

On Diagram

CAPSCREW 1/4NCx3/4

Part #: 031503
$0.40
QTY:

Sold By: EA

33

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

34

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

35

On Diagram

PUMP

Part #: 033630
$489.90
QTY:

Sold By: EA

36

On Diagram

SWITCH

Part #: 033935

This part is replaced with part number 037323

Price not found
QTY:

Sold By: EA

37

On Diagram

ADAPTER 1/8 BSPT TO 1/8 NPT

Part #: 024844
$32.30
QTY:

Sold By: EA

38

On Diagram

TEE

Part #: 035145
$22.00
QTY:

Sold By: EA

39

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

40

On Diagram

SWITCH

Part #: 030096

This part is replaced with part number 039550

Price not found
QTY:

Sold By: EA

41-1

On Diagram

DISTRIBUTOR

Part #: 035451
$461.30
QTY:

Sold By: EA

41-2

On Diagram

DISTRIBUTOR

Part #: 035447
$437.70
QTY:

Sold By: EA

41-3

On Diagram

DISTRIBUTOR

Part #: 036178
$647.50
QTY:

Sold By: EA

42

On Diagram

NUT M 4 DIN 934

Part #: 031929
$0.30
QTY:

Sold By: EA

43

On Diagram

LOCKWASHER M 4 DIN 6797A

Part #: 031917
$0.20
QTY:

Sold By: EA

45

On Diagram

LOCKWASHER M 5 DIN 127

Part #: 031780
$0.20
QTY:

Sold By: EA

46

On Diagram

NUT M 5 DIN 934

Part #: 018241
$1.20
QTY:

Sold By: EA

47-1

On Diagram

SPARKPLUG

Part #: 035666
$11.90
QTY:

Sold By: EA

47-2

On Diagram

SPARKPLUG

Part #: 033805
$8.90
QTY:

Sold By: EA

48-1

On Diagram

WIRE

Part #: 035668

This part is replaced with part number 035669

Price not found
QTY:

Sold By: EA

48-2

On Diagram

WIRE

Part #: 035669
$37.10
QTY:

Sold By: EA

49

On Diagram

WIRE

Part #: 035670

This part is no longer available. Use part number 035669.

$37.10
QTY:

Sold By: EA

50

On Diagram

SENDER

Part #: 024132
$148.50
QTY:

Sold By: EA

51

On Diagram

SENDER

Part #: 035109
$72.30
QTY:

Sold By: EA

52

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

53

On Diagram

COIL

Part #: 036162
$567.10
QTY:

Sold By: EA

54

On Diagram

DIAGRAM

Part #: 035439
Price not found
QTY:

Sold By: EA
