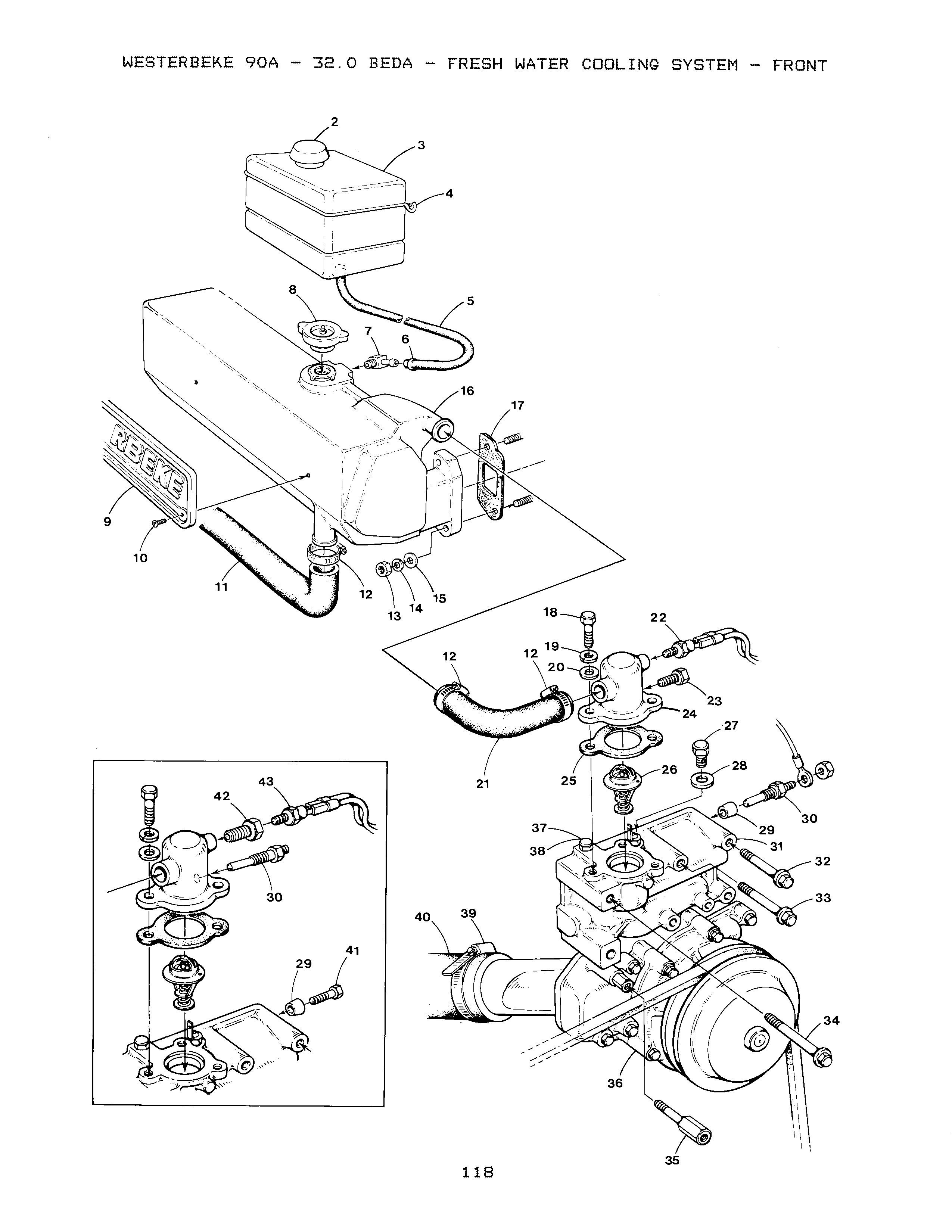

FRESH WATER COOLING SYSTEM - FRONT

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

TANK KIT

Part #: 024977
$68.60
QTY:

Sold By: KT

2

On Diagram

CAP

Part #: 024858
$0.50
QTY:

Sold By: EA

3

On Diagram

TANK

Part #: 024704

This tank DOES NOT include CAP part number 024858. Please order CAP 024858 separately.

$28.10
QTY:

Sold By: EA

4

On Diagram

STRAP

Part #: 024786
$13.20
QTY:

Sold By: EA

5

On Diagram

TUBING

Part #: 024637

This part is no longer available. Use part number 056526. ATTENTION - IMPORTANT: This tubing is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.40
QTY:

Sold By: IN

6

On Diagram

CLAMP

Part #: 024906
$2.00
QTY:

Sold By: EA

7

On Diagram

ELBOW 1/8NPT x 5/16 HOSE

Part #: 024907
$24.80
QTY:

Sold By: EA

8

On Diagram

CAP

Part #: 024306
$10.80
QTY:

Sold By: EA

9

On Diagram

NAMEPLATE

Part #: 035411

Please contact Westerbeke to obtain this part. Serial numbers of your engine or genset required.

Price not found
QTY:

Sold By: EA

10

On Diagram

SCREW 8-32 X 1/4 SS OVAL

Part #: 031935
$0.50
QTY:

Sold By: EA

11

On Diagram

HOSE

Part #: 040163
$57.90
QTY:

Sold By: EA

12

On Diagram

CLAMP

Part #: 038193
$3.50
QTY:

Sold By: EA

13

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

14

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

15

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

16

On Diagram

MANIFOLD

Part #: 037305
$761.10
QTY:

Sold By: EA

17

On Diagram

GASKET

Part #: 037745
$10.70
QTY:

Sold By: EA

18

On Diagram

CAPSCREW M 6x20 DIN 933

Part #: 018804
$0.70
QTY:

Sold By: EA

19

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

20

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

21

On Diagram

HOSE

Part #: 038233
$34.20
QTY:

Sold By: EA

22

On Diagram

SWITCH

Part #: 039550
$52.50
QTY:

Sold By: EA

23-1

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

23-2

On Diagram

SWITCH

Part #: 039317

This part is no longer available.

Price not found
QTY:

Sold By: EA

24

On Diagram

HOUSING

Part #: 039652

This part is no longer available.

$90.80
QTY:

Sold By: EA

25

On Diagram

GASKET

Part #: 039651
$3.70
QTY:

Sold By: EA

26

On Diagram

THERMOSTAT 180F WITH BYPASS

Part #: 024690
$21.40
QTY:

Sold By: EA

27

On Diagram

PLUG M16x1.5 DIN 910

Part #: 022205
$11.10
QTY:

Sold By: EA

28

On Diagram

WASHER

Part #: 034178
$22.10
QTY:

Sold By: EA

29

On Diagram

BUSHING

Part #: 024672
$23.60
QTY:

Sold By: EA

30

On Diagram

SENDER

Part #: 035109
$72.30
QTY:

Sold By: EA

31

On Diagram

HOUSING

Part #: 041198

This part is no longer available.

$185.90
QTY:

Sold By: EA

32

On Diagram

CAPSCREW

Part #: 041432

This part is no longer available.

$1.00
QTY:

Sold By: EA

33

On Diagram

CAPSCREW M 8x70 JIS-FLANGE

Part #: 041427
$3.60
QTY:

Sold By: EA

34

On Diagram

CAPSCREW M 8x90 JIS-FLANGE

Part #: 041428

This part is no longer available.

$5.30
QTY:

Sold By: EA

35

On Diagram

STANDOFF

Part #: 040026
$81.00
QTY:

Sold By: EA

37

On Diagram

PLUG M 8x0.75

Part #: 034567
$18.20
QTY:

Sold By: EA

38

On Diagram

WASHER

Part #: 030289

This part is no longer available. Use part number 057991.

$7.00
QTY:

Sold By: EA

39

On Diagram

CLAMP

Part #: 021122
$2.50
QTY:

Sold By: EA

40

On Diagram

HOSE

Part #: 040162
$54.40
QTY:

Sold By: EA

41

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

42

On Diagram

BUSHING

Part #: 037453
$21.20
QTY:

Sold By: EA

43

On Diagram

SWITCH

Part #: 030125

This part is no longer available. Use temperature switch kit part number 056519.

Price not found
QTY:

Sold By: EA
