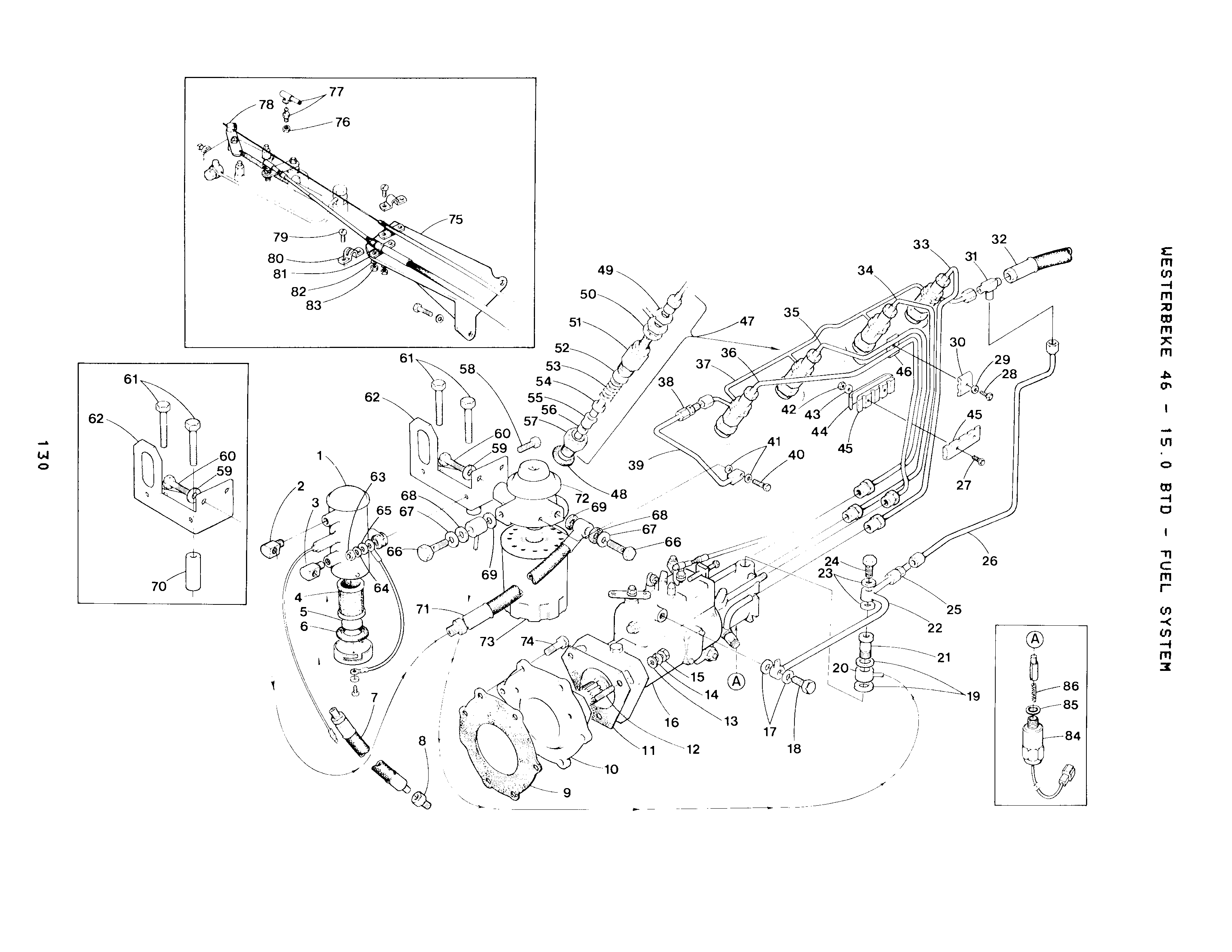

FUEL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PUMP

Part #: 024831

This part is replaced with part number 039275

Price not found
QTY:

Sold By: EA

2

On Diagram

ELBOW

Part #: 022513
$15.40
QTY:

Sold By: EA

3

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340
$9.80
QTY:

Sold By: EA

4

On Diagram

ELEMENT

Part #: 030548
$30.80
QTY:

Sold By: EA

5

On Diagram

MAGNET

Part #: 033792
$9.60
QTY:

Sold By: EA

6

On Diagram

GASKET

Part #: 033484

This part is replaced with part number 030548

Price not found
QTY:

Sold By: EA

7

On Diagram

HOSE

Part #: 030025
$115.70
QTY:

Sold By: EA

8

On Diagram

CONNECTOR

Part #: 015289
$10.90
QTY:

Sold By: EA

9-1

On Diagram

GASKET

Part #: 034274
$4.80
QTY:

Sold By: EA

9-2

On Diagram

O-RING

Part #: 039121
$17.60
QTY:

Sold By: EA

10-1

On Diagram

ADAPTER

Part #: 034278
$201.10
QTY:

Sold By: EA

10-2

On Diagram

ADAPTER

Part #: 036168
$444.80
QTY:

Sold By: EA

10-3

On Diagram

ADAPTER

Part #: 039120

This part is no longer available.

$166.30
QTY:

Sold By: EA

11

On Diagram

GASKET

Part #: 034275
$4.00
QTY:

Sold By: EA

12

On Diagram

STUD M 8x25 DIN 939

Part #: 015830
$3.50
QTY:

Sold By: EA

13

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

14

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

15

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

16-1

On Diagram

PUMP

Part #: 034378
$2,667.70
QTY:

Sold By: EA

16-2

On Diagram

PUMP

Part #: 036169

This part is no longer available.

$2,667.70
QTY:

Sold By: EA

16-3

On Diagram

PUMP

Part #: 037760

This part is no longer available.

$3,223.50
QTY:

Sold By: EA

17

On Diagram

WASHER

Part #: 034448

This part is replaced with part number 011944

Price not found
QTY:

Sold By: EA

18

On Diagram

BOLT

Part #: 034450

This part is no longer available.

$42.40
QTY:

Sold By: EA

19

On Diagram

WASHER

Part #: 030291
$9.90
QTY:

Sold By: EA

20

On Diagram

LINE

Part #: 034483
$182.50
QTY:

Sold By: EA

21

On Diagram

VALVE

Part #: 036173

This part is no longer available.

$214.70
QTY:

Sold By: EA

22

On Diagram

LINE

Part #: 034184

This part is no longer available.

$114.60
QTY:

Sold By: EA

23

On Diagram

WASHER

Part #: 034448

This part is replaced with part number 011944

Price not found
QTY:

Sold By: EA

25-1

On Diagram

UNION 3/16OD COMPRESSION

Part #: 024600
$8.70
QTY:

Sold By: EA

25-2

On Diagram

FERRULE 3/16OD TUBE

Part #: 013343
$1.30
QTY:

Sold By: EA

25-3

On Diagram

NUT

Part #: 013344
$1.70
QTY:

Sold By: EA

26

On Diagram

LINE

Part #: 033959
$49.30
QTY:

Sold By: EA

27

On Diagram

CAPSCREW M 8x25 DIN 933

Part #: 013630
$0.90
QTY:

Sold By: EA

28

On Diagram

CAPSCREW M 6x25 DIN 933

Part #: 020628
$0.50
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

30

On Diagram

CLAMP

Part #: 030315
$13.00
QTY:

Sold By: EA

31-1

On Diagram

TEE 3/16 COMPRESSION BRASS

Part #: 019291

This part is no longer available.

$9.70
QTY:

Sold By: EA

31-2

On Diagram

FERRULE 3/16OD TUBE

Part #: 013343
$1.30
QTY:

Sold By: EA

31-3

On Diagram

NUT

Part #: 013344
$1.70
QTY:

Sold By: EA

32

On Diagram

HOSE

Part #: 034857
$209.00
QTY:

Sold By: EA

33-1

On Diagram

LINE

Part #: 034280
$385.50
QTY:

Sold By: EA

33-2

On Diagram

LINE

Part #: 038837
$385.50
QTY:

Sold By: EA

34-1

On Diagram

LINE

Part #: 034279
$385.50
QTY:

Sold By: EA

34-2

On Diagram

LINE

Part #: 038836
$385.50
QTY:

Sold By: EA

35-1

On Diagram

LINE

Part #: 034277
$385.50
QTY:

Sold By: EA

35-2

On Diagram

LINE

Part #: 038835
$385.50
QTY:

Sold By: EA

36-1

On Diagram

LINE

Part #: 034276
$385.50
QTY:

Sold By: EA

36-2

On Diagram

LINE

Part #: 038834

.

$99.40
QTY:

Sold By: EA

37-1

On Diagram

LINE

Part #: 033961
$338.60
QTY:

Sold By: EA

37-2

On Diagram

LINE

Part #: 038838
$711.70
QTY:

Sold By: EA

38-1

On Diagram

UNION 3/16OD COMPRESSION

Part #: 024600
$8.70
QTY:

Sold By: EA

38-2

On Diagram

FERRULE 3/16OD TUBE

Part #: 013343
$1.30
QTY:

Sold By: EA

38-3

On Diagram

NUT

Part #: 013344
$1.70
QTY:

Sold By: EA

39

On Diagram

LINE

Part #: 034496
$60.30
QTY:

Sold By: EA

40

On Diagram

BOLT

Part #: 034493
$102.30
QTY:

Sold By: EA

41

On Diagram

WASHER

Part #: 032869
$4.40
QTY:

Sold By: EA

42

On Diagram

NUT M 8 DIN 934

Part #: 018242
$0.30
QTY:

Sold By: EA

43

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

44

On Diagram

CLAMP

Part #: 034388
$19.90
QTY:

Sold By: EA

45

On Diagram

ISOLATOR

Part #: 034389
$38.40
QTY:

Sold By: EA

46

On Diagram

CLAMP

Part #: 030316
$7.40
QTY:

Sold By: EA

47-1

On Diagram

INJECTOR TO S/N 159664

Part #: 034376
$498.60
QTY:

Sold By: EA

47-2

On Diagram

INJECTOR FROM S/N 159665

Part #: 038842
$623.20
QTY:

Sold By: EA

48-1

On Diagram

WASHER

Part #: 034281
$10.80
QTY:

Sold By: EA

48-2

On Diagram

WASHER

Part #: 038841

This part is no longer available. Use part number 036923.

$3.20
QTY:

Sold By: EA

49-1

On Diagram

NUT

Part #: 034251
$7.40
QTY:

Sold By: EA

49-2

On Diagram

NUT

Part #: 038843
$8.70
QTY:

Sold By: EA

50-1

On Diagram

WASHER

Part #: 034250
$13.70
QTY:

Sold By: EA

50-2

On Diagram

WASHER

Part #: 038825
$3.40
QTY:

Sold By: EA

56-1

On Diagram

NOZZLE

Part #: 034377
$138.70
QTY:

Sold By: EA

56-2

On Diagram

NOZZLE

Part #: 038845
$117.10
QTY:

Sold By: EA

58

On Diagram

CAPSCREW M 6x30 DIN 933

Part #: 013590
$0.70
QTY:

Sold By: EA

59

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

60

On Diagram

CAPSCREW M10x1.25x25 DIN 961

Part #: 024952
$2.20
QTY:

Sold By: EA

61

On Diagram

BOLT

Part #: 033637
$44.70
QTY:

Sold By: EA

62

On Diagram

BRACKET

Part #: 034026
$374.10
QTY:

Sold By: EA

63

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

64

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

65

On Diagram

WASHER M 6 DIN 125

Part #: 031784

This washer fits M-25XPB, M-35B, & M-40B engines manufactured before March 1998.

$0.20
QTY:

Sold By: EA

66

On Diagram

BOLT

Part #: 030139
$17.90
QTY:

Sold By: EA

67

On Diagram

WASHER

Part #: 024972
$1.10
QTY:

Sold By: EA

68

On Diagram

WASHER

Part #: 030291
$9.90
QTY:

Sold By: EA

69

On Diagram

WASHER

Part #: 030290
$5.90
QTY:

Sold By: EA

70

On Diagram

SPACER

Part #: 034189
$39.20
QTY:

Sold By: EA

71

On Diagram

HOSE

Part #: 034489
$145.30
QTY:

Sold By: EA

72

On Diagram

FILTER

Part #: 032696
$177.60
QTY:

Sold By: EA

73

On Diagram

FILTER

Part #: 024363
$37.70
QTY:

Sold By: EA

74-1

On Diagram

CAPSCREW M 8x20 WITH LW & SEAL

Part #: 034256

This part is no longer available.

$5.00
QTY:

Sold By: EA

74-2

On Diagram

CAPSCREW M 8x30 WITH LW & SEAL

Part #: 034257

This part is no longer available.

$5.50
QTY:

Sold By: EA

75

On Diagram

BRACKET

Part #: 034662

This part is no longer available.

Price not found
QTY:

Sold By: EA

76

On Diagram

NUT 1/4-28 NF

Part #: 031754
$0.20
QTY:

Sold By: EA

77

On Diagram

BALLJOINT

Part #: 033482
$15.00
QTY:

Sold By: EA

78-1

On Diagram

PIVOT

Part #: 019370
$20.00
QTY:

Sold By: EA

78-2

On Diagram

PIN

Part #: 011796
$0.30
QTY:

Sold By: EA

79

On Diagram

SCREW 10-32 X 5/8 SS

Part #: 031873
$0.50
QTY:

Sold By: EA

80

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

81

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA

82

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

83

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

84

On Diagram

SOLENOID

Part #: 036172
$356.30
QTY:

Sold By: EA

85

On Diagram

O-RING

Part #: 036171

This part is no longer available.

$9.60
QTY:

Sold By: EA

86

On Diagram

SPRING

Part #: 036170

This part is no longer available.

Price not found
QTY:

Sold By: EA
