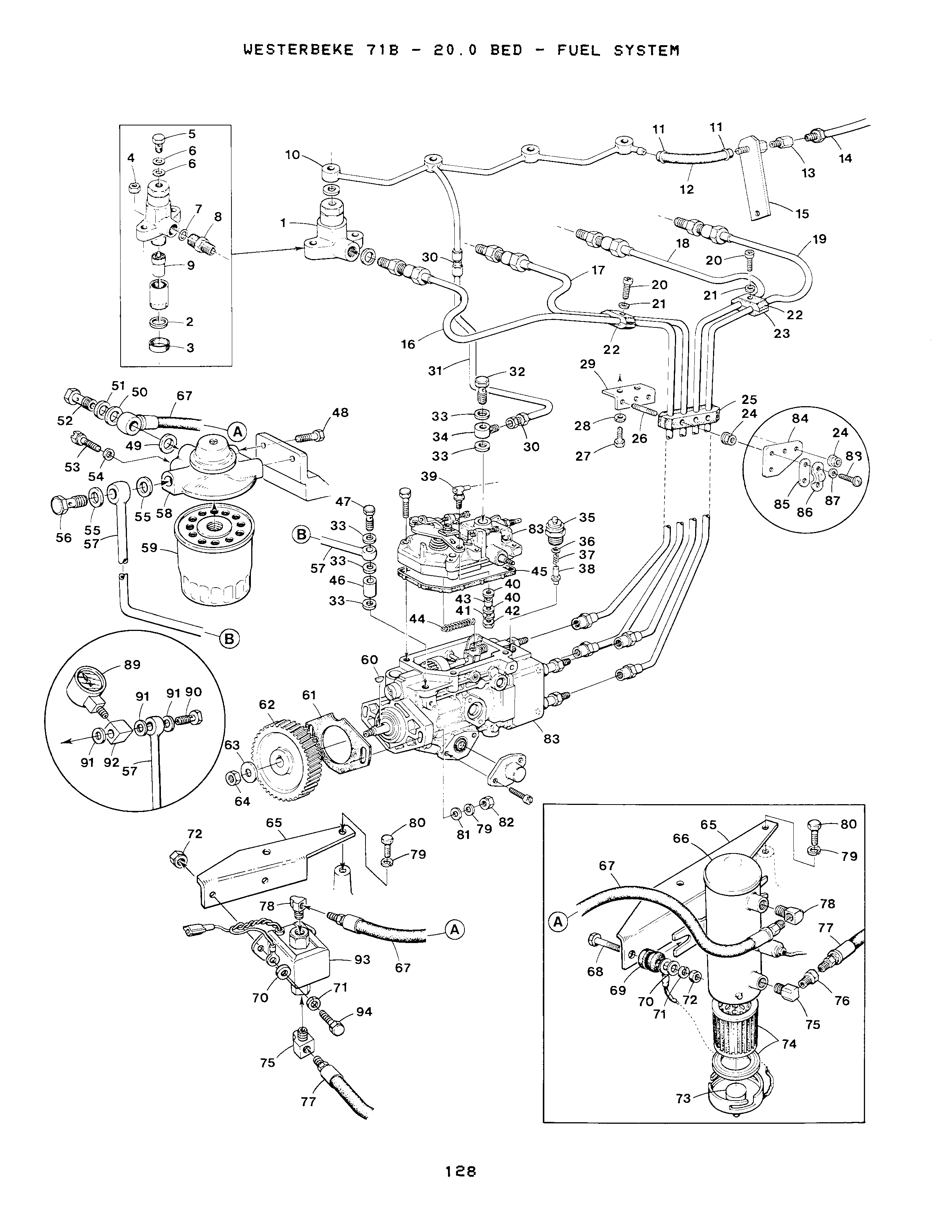

FUEL SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

INJECTOR

Part #: 024563
$550.80
QTY:

Sold By: EA

2

On Diagram

WASHER

Part #: 024454
$5.60
QTY:

Sold By: EA

3

On Diagram

SEAL

Part #: 024527

This part is no longer available.

$5.60
QTY:

Sold By: EA

4

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

5

On Diagram

BOLT

Part #: 024500
$15.00
QTY:

Sold By: EA

6

On Diagram

WASHER

Part #: 011943

This part is replaced with part number 030289

Price not found
QTY:

Sold By: EA

7

On Diagram

WASHER

Part #: 024499

This part is replaced with part number 011943

$3.30
QTY:

Sold By: EA

8

On Diagram

CONNECTOR

Part #: 024505
$14.50
QTY:

Sold By: EA

9

On Diagram

NOZZLE

Part #: 024565

This part is no longer available.

$176.70
QTY:

Sold By: EA

10

On Diagram

NUT

Part #: 024526

This part is no longer available.

Price not found
QTY:

Sold By: EA

11

On Diagram

CLAMP

Part #: 024906
$1.90
QTY:

Sold By: EA

12

On Diagram

HOSE

Part #: 036869

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.60
QTY:

Sold By: IN

13

On Diagram

CONNECTOR

Part #: 013346
$4.70
QTY:

Sold By: EA

14

On Diagram

HOSE

Part #: 024857
Price not found
QTY:

Sold By: each

15

On Diagram

CONNECTOR ASSY

Part #: 039158
$47.80
QTY:

Sold By: EA

16

On Diagram

LINE

Part #: 024529
$90.30
QTY:

Sold By: EA

17

On Diagram

LINE

Part #: 024530

This part is no longer available.

$90.30
QTY:

Sold By: EA

18

On Diagram

LINE

Part #: 024531
$89.90
QTY:

Sold By: EA

19

On Diagram

LINE

Part #: 024532

This part is no longer available.

Price not found
QTY:

Sold By: EA

20

On Diagram

SCREW M 5x25 DIN 84A PHILLIPS

Part #: 038914
$1.40
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER M 5 DIN 127

Part #: 031780
$0.20
QTY:

Sold By: EA

22

On Diagram

CLAMP

Part #: 038910

This part is no longer available.

$10.30
QTY:

Sold By: EA

23

On Diagram

CLAMP

Part #: 038911

This part is no longer available.

$11.30
QTY:

Sold By: EA

24

On Diagram

NUT M 5 DIN 934

Part #: 018241
$1.20
QTY:

Sold By: EA

25

On Diagram

CLAMP

Part #: 038912
$21.50
QTY:

Sold By: EA

26

On Diagram

STUD

Part #: 038909
$4.40
QTY:

Sold By: EA

27

On Diagram

CAPSCREW 1/4NFx5/8

Part #: 031527
$0.50
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

29

On Diagram

BRACKET

Part #: 024459
$15.60
QTY:

Sold By: EA

30-1

On Diagram

UNION 3/16OD COMPRESSION

Part #: 024600
$8.20
QTY:

Sold By: EA

30-2

On Diagram

NUT

Part #: 013344
$1.60
QTY:

Sold By: EA

30-3

On Diagram

FERRULE 3/16OD TUBE

Part #: 013343
$1.30
QTY:

Sold By: EA

31

On Diagram

LINE

Part #: 032117
$36.30
QTY:

Sold By: EA

32

On Diagram

BOLT

Part #: 024501
$80.90
QTY:

Sold By: EA

33

On Diagram

WASHER

Part #: 024498
$4.40
QTY:

Sold By: EA

34

On Diagram

BANJO

Part #: 024502

This part is no longer available.

Price not found
QTY:

Sold By: EA

35-1

On Diagram

SOLENOID

Part #: 024338
$589.00
QTY:

Sold By: EA

35-2

On Diagram

SOLENOID

Part #: 031285
$368.30
QTY:

Sold By: EA

35-3

On Diagram

SOLENOID

Part #: 034913
$638.60
QTY:

Sold By: EA

35-4

On Diagram

SOLENOID

Part #: 034992
$600.00
QTY:

Sold By: EA

36

On Diagram

O-RING

Part #: 024339
$12.30
QTY:

Sold By: EA

37

On Diagram

SPRING

Part #: 032131

This part is no longer available.

Price not found
QTY:

Sold By: EA

38

On Diagram

PLUNGER

Part #: 032114

This part is no longer available.

Price not found
QTY:

Sold By: EA

39

On Diagram

BALLJOINT

Part #: 019364
$13.30
QTY:

Sold By: EA

40

On Diagram

WASHER

Part #: 031848
$0.40
QTY:

Sold By: EA

41

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

42

On Diagram

NUT 10-32 SS

Part #: 031847
$0.20
QTY:

Sold By: EA

43

On Diagram

SPACER

Part #: 024673
$4.60
QTY:

Sold By: EA

44-1

On Diagram

SPRING

Part #: 024537

This part is no longer available.

Price not found
QTY:

Sold By: EA

44-2

On Diagram

SPRING

Part #: 024571
$18.10
QTY:

Sold By: EA

44-3

On Diagram

SPRING

Part #: 024537

This part is no longer available.

Price not found
QTY:

Sold By: EA

45

On Diagram

GASKET

Part #: 024542
$18.60
QTY:

Sold By: EA

46

On Diagram

SPACER

Part #: 024504
$16.80
QTY:

Sold By: EA

47

On Diagram

BOLT

Part #: 024503

This part is no longer available.

$32.50
QTY:

Sold By: EA

48

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630
$0.50
QTY:

Sold By: EA

49

On Diagram

WASHER

Part #: 030290
$5.90
QTY:

Sold By: EA

50

On Diagram

WASHER

Part #: 030291
$9.40
QTY:

Sold By: EA

51

On Diagram

WASHER

Part #: 024972
$1.10
QTY:

Sold By: EA

52

On Diagram

BOLT

Part #: 030139
$17.90
QTY:

Sold By: EA

53

On Diagram

SCREW

Part #: 032868

This part is no longer available.

$13.90
QTY:

Sold By: EA

54

On Diagram

WASHER

Part #: 032869
$4.40
QTY:

Sold By: EA

55

On Diagram

WASHER

Part #: 024498
$4.40
QTY:

Sold By: EA

56

On Diagram

BOLT

Part #: 024506
$6.80
QTY:

Sold By: EA

57

On Diagram

LINE

Part #: 024464

This part is no longer available.

Price not found
QTY:

Sold By: EA

58

On Diagram

FILTER

Part #: 024549

This part is no longer available.

Price not found
QTY:

Sold By: EA

59

On Diagram

FILTER

Part #: 024363
$15.90
QTY:

Sold By: EA

60

On Diagram

KEY

Part #: 024515

This part is replaced with part number 032904

Price not found
QTY:

Sold By: EA

61

On Diagram

GASKET

Part #: 024461
$14.10
QTY:

Sold By: EA

62

On Diagram

GEAR

Part #: 024533

This part is no longer available.

Price not found
QTY:

Sold By: EA

63

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

64

On Diagram

NUT M12 X 1.75 DIN 934

Part #: 031791
$8.10
QTY:

Sold By: EA

65

On Diagram

BRACKET

Part #: 033066

This part is no longer available.

Price not found
QTY:

Sold By: EA

66-1

On Diagram

PUMP

Part #: 024831

This part is replaced with part number 039275

Price not found
QTY:

Sold By: EA

66-2

On Diagram

PUMP

Part #: 033721
$716.90
QTY:

Sold By: EA

67

On Diagram

HOSE

Part #: 036372
$102.60
QTY:

Sold By: EA

68

On Diagram

CAPSCREW 1/4NCx1-1/4

Part #: 031506
$0.50
QTY:

Sold By: EA

69-1

On Diagram

GROMMET

Part #: 039414
$10.40
QTY:

Sold By: EA

69-2

On Diagram

SPACER

Part #: 039415
$10.40
QTY:

Sold By: EA

70

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

71

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

72

On Diagram

NUT 1/4-20 NC

Part #: 031750
$0.40
QTY:

Sold By: EA

73

On Diagram

MAGNET

Part #: 033792
$9.60
QTY:

Sold By: EA

74

On Diagram

ELEMENT

Part #: 030548
$30.80
QTY:

Sold By: EA

75

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340
$9.80
QTY:

Sold By: EA

76

On Diagram

CONNECTOR

Part #: 015289
$3.20
QTY:

Sold By: EA

77

On Diagram

HOSE

Part #: 030025
$80.50
QTY:

Sold By: EA

78

On Diagram

ELBOW

Part #: 022513
$14.50
QTY:

Sold By: EA

79

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

80

On Diagram

CAPSCREW 5/16NFx3/4

Part #: 031578
$0.50
QTY:

Sold By: EA

81

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

82

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

83-1

On Diagram

PUMP

Part #: 024569

This part is no longer available.

Price not found
QTY:

Sold By: EA

83-2

On Diagram

PUMP

Part #: 031286
$3,209.70
QTY:

Sold By: EA

83-3

On Diagram

PUMP

Part #: 024569

This part is no longer available.

Price not found
QTY:

Sold By: EA

84

On Diagram

BRACKET

Part #: 038593
$20.00
QTY:

Sold By: EA

85

On Diagram

SHIM

Part #: 013870
$3.20
QTY:

Sold By: EA

86

On Diagram

CLAMP

Part #: 013325
$4.00
QTY:

Sold By: EA

87

On Diagram

LOCKWASHER 10 MED SS

Part #: 031849
$0.20
QTY:

Sold By: EA

88

On Diagram

SCREW 10-32 X 1/2 SS

Part #: 031872
$0.40
QTY:

Sold By: EA

89-1

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$3.80
QTY:

Sold By: EA

89-2

On Diagram

METER

Part #: 035827
$82.30
QTY:

Sold By: EA

90

On Diagram

BOLT

Part #: 035950
$47.80
QTY:

Sold By: EA

91

On Diagram

WASHER

Part #: 030290
$5.90
QTY:

Sold By: EA

92

On Diagram

BANJO

Part #: 035949
$48.20
QTY:

Sold By: EA

93

On Diagram

PUMP

Part #: 039275
$258.00
QTY:

Sold By: EA

94

On Diagram

CAPSCREW 1/4NCx5/8

Part #: 031502
$2.20
QTY:

Sold By: EA
