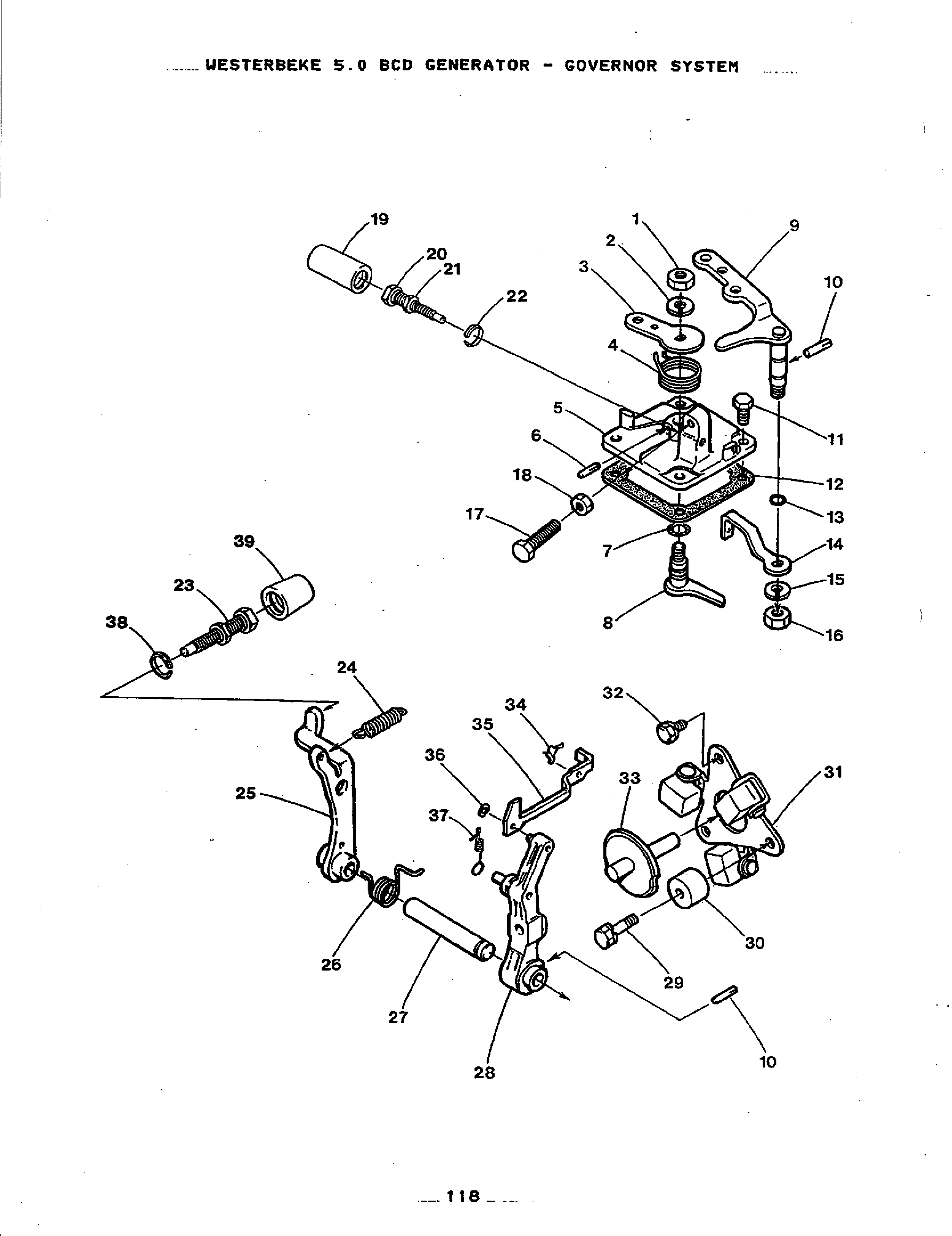

GOVERNOR SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NUT M 8 DIN 936 JAM

Part #: 031802
$1.30
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

3

On Diagram

LEVER

Part #: 043988
$19.00
QTY:

Sold By: EA

4

On Diagram

SPRING

Part #: 043986
$9.80
QTY:

Sold By: EA

5

On Diagram

COVER

Part #: 043982
$155.10
QTY:

Sold By: EA

6

On Diagram

PIN

Part #: 043985
$2.30
QTY:

Sold By: EA

7

On Diagram

O-RING

Part #: 030277
$2.70
QTY:

Sold By: EA

8

On Diagram

LEVER

Part #: 043987
$76.50
QTY:

Sold By: EA

9

On Diagram

LEVER

Part #: 037090
$54.50
QTY:

Sold By: EA

10

On Diagram

PIN

Part #: 036942
$2.50
QTY:

Sold By: EA

11

On Diagram

CAPSCREW M 6x12 DIN 933

Part #: 031825
$0.60
QTY:

Sold By: EA

12

On Diagram

GASKET

Part #: 037024
$5.90
QTY:

Sold By: EA

13

On Diagram

O-RING

Part #: 030277
$2.70
QTY:

Sold By: EA

14

On Diagram

LEVER

Part #: 036989
$12.80
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

16

On Diagram

NUT M 8 DIN 936 JAM

Part #: 031802
$1.30
QTY:

Sold By: EA

17

On Diagram

SCREW

Part #: 038680

This part is no longer available.

$4.20
QTY:

Sold By: EA

18

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

19

On Diagram

COVER

Part #: 043983
$81.90
QTY:

Sold By: EA

20

On Diagram

SCREW

Part #: 043978
$29.90
QTY:

Sold By: EA

22

On Diagram

RING

Part #: 043984
$25.10
QTY:

Sold By: EA

23

On Diagram

SCREW SET

Part #: 043977
$13.20
QTY:

Sold By: EA

24-1

On Diagram

SPRING

Part #: 038458
$225.50
QTY:

Sold By: EA

24-2

On Diagram

NUT

Part #: 037109
$44.60
QTY:

Sold By: EA

25

On Diagram

LEVER

Part #: 037079
$63.90
QTY:

Sold By: EA

26

On Diagram

SPRING

Part #: 037092
$6.20
QTY:

Sold By: EA

27

On Diagram

SHAFT

Part #: 037080
$26.40
QTY:

Sold By: EA

28

On Diagram

LEVER

Part #: 037078
$98.90
QTY:

Sold By: EA

29-1

On Diagram

CAPSCREW M 6x25 DIN 933

Part #: 020628
$0.50
QTY:

Sold By: EA

29-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

30

On Diagram

STOPPER

Part #: 033200
Price not found
QTY:

Sold By: EA

31-1

On Diagram

WEIGHT ASSEMBLY

Part #: 038455
$462.10
QTY:

Sold By: EA

31-2

On Diagram

WEIGHT ASSEMBLY

Part #: 043979
$113.00
QTY:

Sold By: EA

32-1

On Diagram

CAPSCREW M 6x10 DIN 933

Part #: 015816
$0.50
QTY:

Sold By: EA

32-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

33-1

On Diagram

SHAFT

Part #: 038457

This part is no longer available.

$457.60
QTY:

Sold By: EA

33-2

On Diagram

SHAFT

Part #: 036941
$244.00
QTY:

Sold By: EA

34

On Diagram

CLIP

Part #: 037022

This part is no longer available. Use part number 056148.

$7.40
QTY:

Sold By: EA

35

On Diagram

ROD

Part #: 037021

This part is no longer available. Use part number 056147.

$60.90
QTY:

Sold By: EA

36

On Diagram

RING

Part #: 036939
$1.50
QTY:

Sold By: EA

37

On Diagram

SPRING

Part #: 043989
$11.60
QTY:

Sold By: EA

38

On Diagram

RING

Part #: 043980
$22.50
QTY:

Sold By: EA

39

On Diagram

COVER

Part #: 043981
$34.60
QTY:

Sold By: EA
