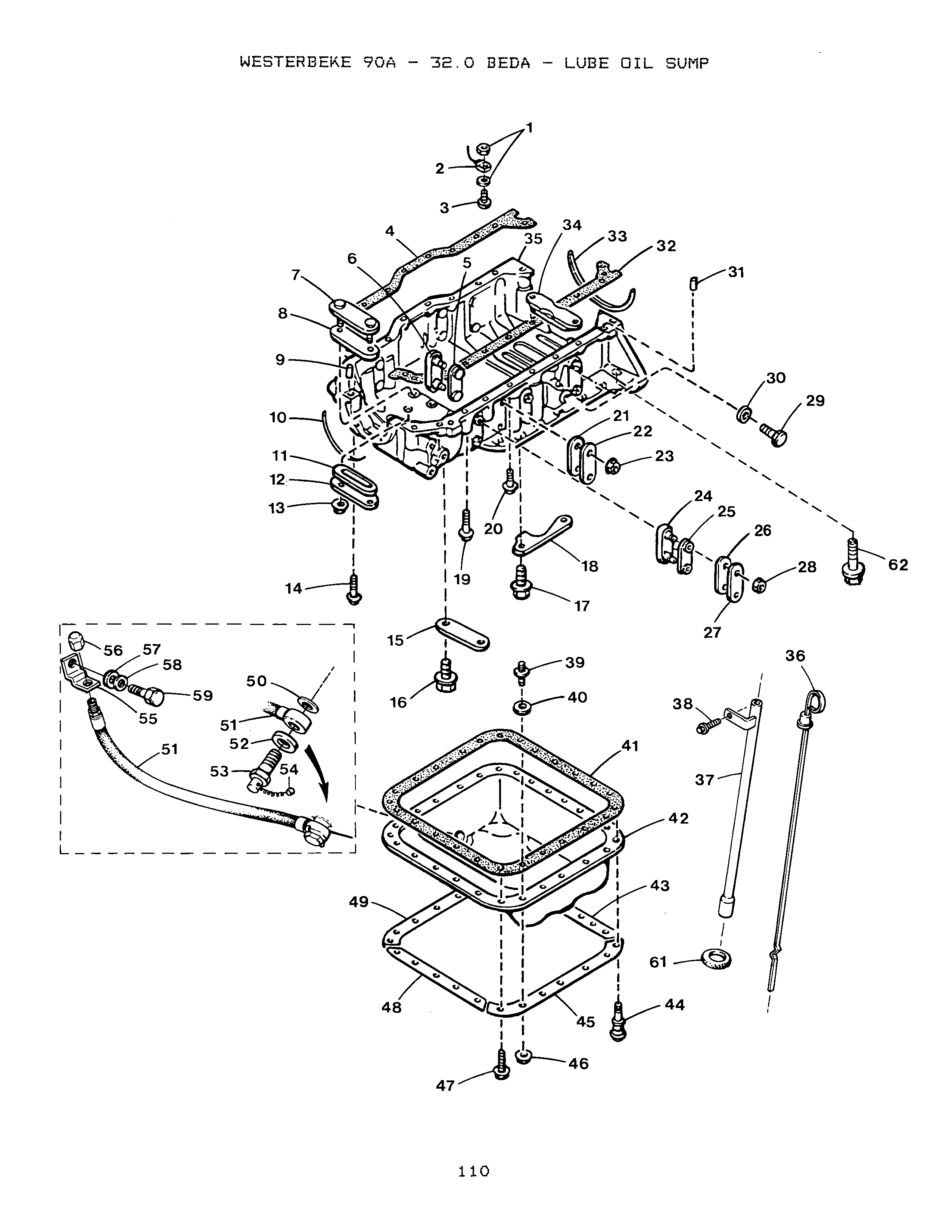

LUBE OIL SUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

WASHER

Part #: 032654
$3.40
QTY:

Sold By: EA

2

On Diagram

JET

Part #: 040293
$51.20
QTY:

Sold By: EA

3

On Diagram

VALVE

Part #: 032655
$43.60
QTY:

Sold By: EA

4

On Diagram

GASKET

Part #: 041440
$51.70
QTY:

Sold By: EA

5

On Diagram

SEAL

Part #: 040263
$25.30
QTY:

Sold By: EA

6

On Diagram

SEAL

Part #: 040261
$22.60
QTY:

Sold By: EA

7

On Diagram

PLATE

Part #: 040257

This part is no longer available.

Price not found
QTY:

Sold By: EA

8

On Diagram

SEAL

Part #: 040259
$36.50
QTY:

Sold By: EA

9

On Diagram

DOWEL

Part #: 041418

This part is no longer available.

$1.00
QTY:

Sold By: EA

10

On Diagram

GASKET

Part #: 041441
$18.10
QTY:

Sold By: EA

11

On Diagram

SEAL

Part #: 040260
$14.10
QTY:

Sold By: EA

12

On Diagram

PLATE

Part #: 040258

This part is no longer available.

$5.70
QTY:

Sold By: EA

13

On Diagram

NUT M 6 JIS-FLANGE

Part #: 036211
$3.40
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M 8x130 JIS-FLANGE

Part #: 041434
$6.00
QTY:

Sold By: EA

15

On Diagram

BRACKET

Part #: 040358

This part is no longer available.

$17.90
QTY:

Sold By: EA

16

On Diagram

CAPSCREW M 8x20 JIS-FLANGE

Part #: 033654
$3.60
QTY:

Sold By: EA

17

On Diagram

CAPSCREW M 8x110 JIS-FLANGE

Part #: 041433
$4.50
QTY:

Sold By: EA

18

On Diagram

BRACKET

Part #: 040357

This part is no longer available.

$19.80
QTY:

Sold By: EA

19

On Diagram

CAPSCREW M 8x50 JIS-FLANGE

Part #: 033647
$5.10
QTY:

Sold By: EA

20

On Diagram

CAPSCREW M 8x25 JIS-FLANGE

Part #: 033642
$4.40
QTY:

Sold By: EA

21

On Diagram

SEAL

Part #: 040264
$10.10
QTY:

Sold By: EA

22

On Diagram

PLATE

Part #: 040262

This part is no longer available.

$5.70
QTY:

Sold By: EA

23

On Diagram

NUT M 6 JIS-FLANGE

Part #: 036211
$3.40
QTY:

Sold By: EA

24

On Diagram

PLATE

Part #: 040266

This part is no longer available.

$30.20
QTY:

Sold By: EA

25

On Diagram

SEAL

Part #: 040268
$53.90
QTY:

Sold By: EA

26

On Diagram

SEAL

Part #: 040269
$12.90
QTY:

Sold By: EA

27

On Diagram

PLATE

Part #: 040267

This part is no longer available.

$12.00
QTY:

Sold By: EA

28

On Diagram

NUT M 6 JIS-FLANGE

Part #: 036211
$3.40
QTY:

Sold By: EA

29

On Diagram

PLUG

Part #: 032905

This part is no longer available.

$5.30
QTY:

Sold By: EA

30

On Diagram

WASHER

Part #: 024498
$4.40
QTY:

Sold By: EA

31

On Diagram

DOWEL

Part #: 033656
$5.30
QTY:

Sold By: EA

32

On Diagram

GASKET

Part #: 041439
$51.70
QTY:

Sold By: EA

33

On Diagram

GASKET

Part #: 041442
$31.50
QTY:

Sold By: EA

34

On Diagram

SEAL

Part #: 040265
$30.30
QTY:

Sold By: EA

35-1

On Diagram

BLOCK

Part #: 040256

This part is no longer available.

Price not found
QTY:

Sold By: EA

35-2

On Diagram

BLOCK

Part #: 042101

This part is no longer available.

$1,094.30
QTY:

Sold By: EA

36

On Diagram

DIPSTICK 32.0 BEDA

Part #: 040042
$51.70
QTY:

Sold By: EA

37

On Diagram

TUBE

Part #: 040041

This part is no longer available.

$117.00
QTY:

Sold By: EA

38-1

On Diagram

CAPSCREW M 6x16 DIN 933

Part #: 017012
$0.50
QTY:

Sold By: EA

38-2

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

38-3

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

39-1

On Diagram

STUD

Part #: 040271
$6.80
QTY:

Sold By: EA

39-2

On Diagram

STUD

Part #: 042102
$4.30
QTY:

Sold By: EA

40

On Diagram

O-RING

Part #: 040381
$5.40
QTY:

Sold By: EA

41-1

On Diagram

GASKET

Part #: 040276
$121.70
QTY:

Sold By: EA

41-2

On Diagram

GASKET

Part #: 040276
$121.70
QTY:

Sold By: EA

42

On Diagram

SUMP

Part #: 040270

This part is no longer available.

$461.00
QTY:

Sold By: EA

43

On Diagram

STIFFENER

Part #: 040273

This part is no longer available.

$13.80
QTY:

Sold By: EA

44-1

On Diagram

BOLT

Part #: 040278

This part is no longer available.

$8.70
QTY:

Sold By: EA

44-2

On Diagram

BOLT

Part #: 042104

This part is no longer available.

$7.90
QTY:

Sold By: EA

45

On Diagram

STIFFENER

Part #: 040274

This part is no longer available.

$28.20
QTY:

Sold By: EA

46

On Diagram

NUT M 8 JIS-FLANGE

Part #: 033668

This part is no longer available.

$3.00
QTY:

Sold By: EA

47-1

On Diagram

BOLT

Part #: 040277
$4.30
QTY:

Sold By: EA

47-2

On Diagram

BOLT

Part #: 042103
$3.90
QTY:

Sold By: EA

48

On Diagram

STIFFENER

Part #: 040272

This part is no longer available.

$13.80
QTY:

Sold By: EA

49

On Diagram

STIFFENER

Part #: 040275

This part is no longer available.

$28.20
QTY:

Sold By: EA

50

On Diagram

WASHER

Part #: 030291
$9.40
QTY:

Sold By: EA

51

On Diagram

HOSE

Part #: 030848
$101.10
QTY:

Sold By: EA

52

On Diagram

WASHER

Part #: 036493
$1.50
QTY:

Sold By: EA

53

On Diagram

BOLT

Part #: 036821
$31.20
QTY:

Sold By: EA

54

On Diagram

SEAL

Part #: 037393
$1.30
QTY:

Sold By: EA

55

On Diagram

BRACKET

Part #: 024922
$8.90
QTY:

Sold By: EA

56

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905
$4.50
QTY:

Sold By: EA

57

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

58

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

59

On Diagram

CAPSCREW M10x1.25x30 JIS

Part #: 031083
$3.50
QTY:

Sold By: EA

60

On Diagram

PLUG 1/8 NPT SOCKET

Part #: 024523
$5.80
QTY:

Sold By: EA

61

On Diagram

O-RING

Part #: 040382
$6.00
QTY:

Sold By: EA

63

On Diagram

SEAL SET 32.0 BEDA TO U1050

Part #: 041448
$341.50
QTY:

Sold By: ST
