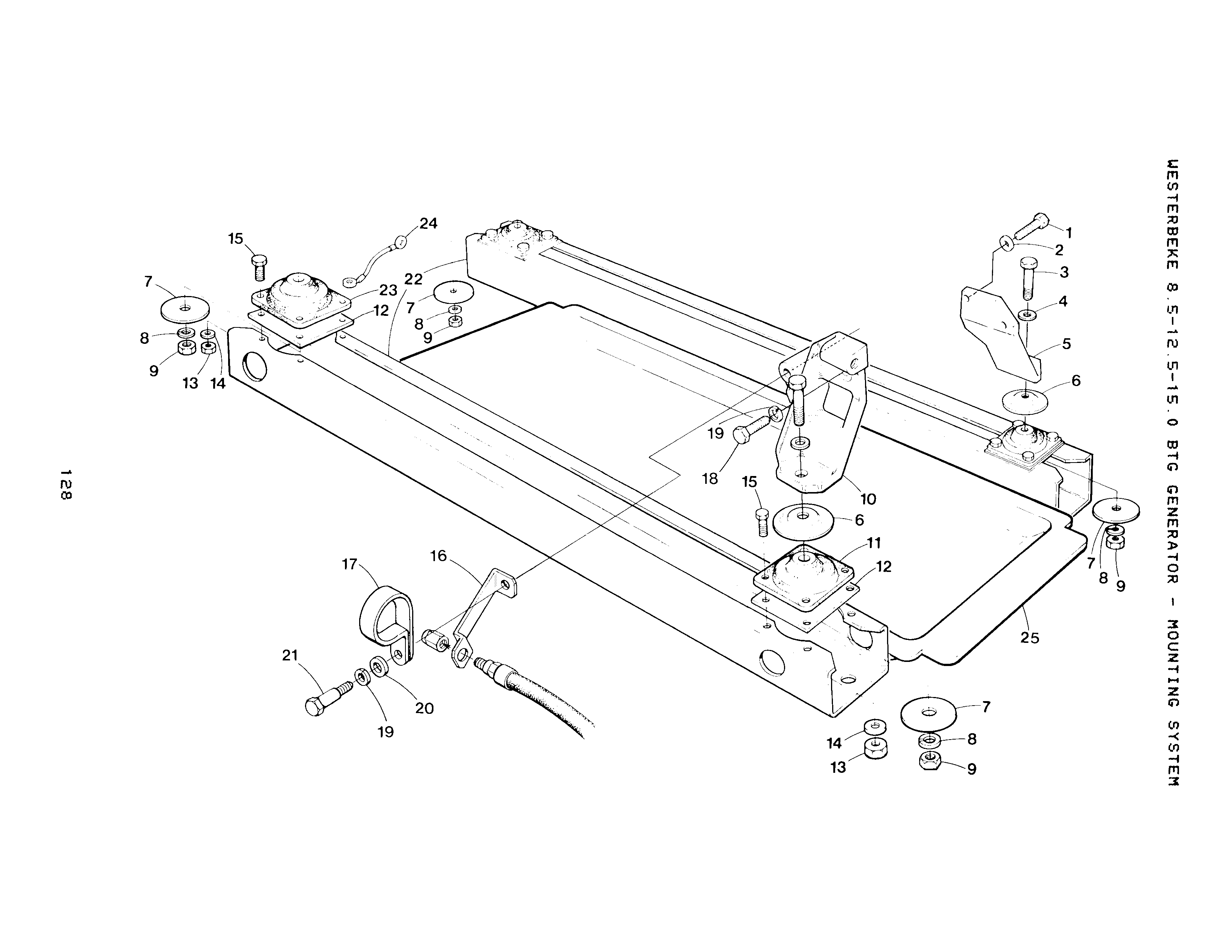

MOUNTING SYSTEM

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CAPSCREW M10x1.25x25 DIN 961

Part #: 024952

$2.20

QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262

$0.40

QTY:

Sold By: EA

3

On Diagram

CAPSCREW 1/2NCx2-3/4

Part #: 031712

$1.70

QTY:

Sold By: EA

4

On Diagram

WASHER

Part #: 031777

$0.80

QTY:

Sold By: EA

5

On Diagram

MOUNT

Part #: 033314

$45.00

QTY:

Sold By: EA

6

On Diagram

SHIELD

Part #: 033530

$6.30

QTY:

Sold By: EA

7

On Diagram

WASHER

Part #: 024674

$2.20

QTY:

Sold By: EA

8

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776

$0.20

QTY:

Sold By: EA

9

On Diagram

NUT 1/2-13 NC

Part #: 031774

$0.40

QTY:

Sold By: EA

10

On Diagram

MOUNT

Part #: 033426

This part is no longer available.

$162.20

QTY:

Sold By: EA

11

On Diagram

ISOLATOR

Part #: 021529

$54.50

QTY:

Sold By: EA

12

On Diagram

PLATE

Part #: 033574

$11.60

QTY:

Sold By: EA

13

On Diagram

NUT 5/16-18 NC

Part #: 031756

$0.20

QTY:

Sold By: EA

14

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758

$0.20

QTY:

Sold By: EA

15

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555

$0.40

QTY:

Sold By: EA

16

On Diagram

BRACKET

Part #: 037198

$13.30

QTY:

Sold By: EA

17

On Diagram

CLAMP

Part #: 035134

$6.90

QTY:

Sold By: EA

18

On Diagram

CAPSCREW M10x1.25x45 DIN 960

Part #: 024955

$4.60

QTY:

Sold By: EA

19

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262

$0.40

QTY:

Sold By: EA

20

On Diagram

WASHER M10 DIN 125

Part #: 031789

$1.30

QTY:

Sold By: EA

21

On Diagram

CAPSCREW M10x1.25x50 DIN 960

Part #: 024956

$3.20

QTY:

Sold By: EA

22

On Diagram

RAIL

Part #: 036120

$218.20

QTY:

Sold By: EA

23

On Diagram

ISOLATOR

Part #: 021529

$54.50

QTY:

Sold By: EA

24

On Diagram

STRAP

Part #: 034593

$16.50

QTY:

Sold By: EA

25

On Diagram

DRIPTRAY

Part #: 037378

$122.10

QTY:

Sold By: EA
