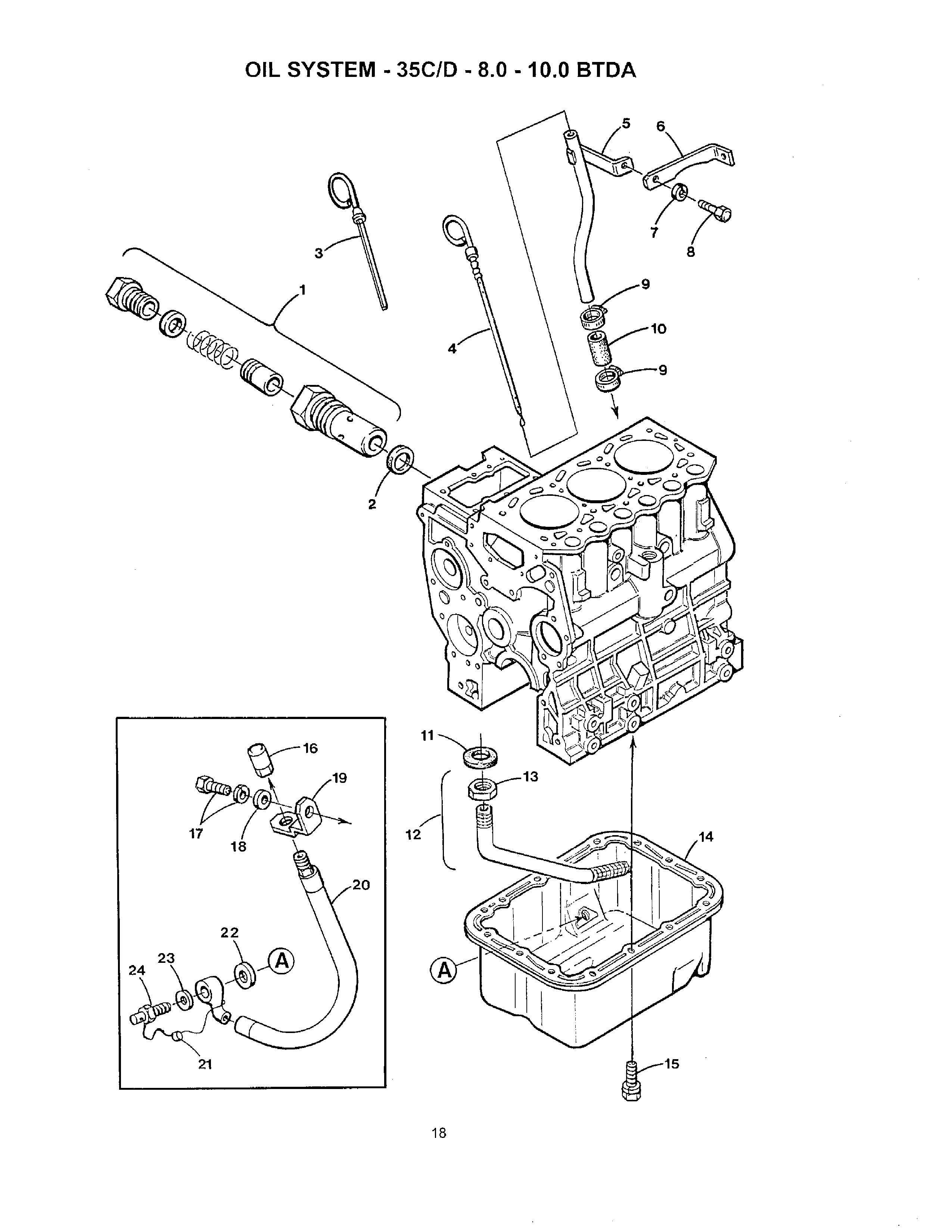

OIL SUMP - DIPSTICK - RELIEF VALVE

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

VALVE

Part #: 045225
$138.20
QTY:

Sold By: EA

2

On Diagram

GASKET

Part #: 046908
$9.80
QTY:

Sold By: EA

3

On Diagram

DIPSTICK

Part #: 045230
$26.00
QTY:

Sold By: EA

4-1

On Diagram
$130.00
QTY:

Sold By: KT

4-2

On Diagram

DIPSTICK

Part #: 044066
$47.10
QTY:

Sold By: EA

5-1

On Diagram

TUBE

Part #: 044255
Price not found
QTY:

Sold By: each

5-2

On Diagram

TUBE

Part #: 043762
$376.00
QTY:

Sold By: EA

6

On Diagram

BRACKET

Part #: 044074
$197.50
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

8

On Diagram
$2.20
QTY:

Sold By: EA

9

On Diagram

CLAMP

Part #: 024906
$2.00
QTY:

Sold By: EA

10

On Diagram

HOSE

Part #: 036045

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

Price not found
QTY:

Sold By: IN

11

On Diagram

WASHER

Part #: 033280
$3.50
QTY:

Sold By: EA

12

On Diagram

STRAINER

Part #: 048094
$68.70
QTY:

Sold By: EA

13

On Diagram

NUT M16 JAM SELF-LOCKING

Part #: 040966
$3.10
QTY:

Sold By: EA

14

On Diagram

SUMP

Part #: 048101
$825.70
QTY:

Sold By: EA

15

On Diagram
$12.60
QTY:

Sold By: EA

16

On Diagram

CAP 1/4 NPT BRASS

Part #: 024905
$5.40
QTY:

Sold By: EA

17

On Diagram
$12.60
QTY:

Sold By: EA

18

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

19

On Diagram

BRACKET

Part #: 024922
$11.20
QTY:

Sold By: EA

20

On Diagram

HOSE

Part #: 043904
$99.60
QTY:

Sold By: EA

21

On Diagram

SEAL

Part #: 037393
$1.30
QTY:

Sold By: EA

22

On Diagram

WASHER

Part #: 030291
$9.90
QTY:

Sold By: EA

23

On Diagram

WASHER

Part #: 036493
$1.50
QTY:

Sold By: EA

24

On Diagram

BOLT

Part #: 036821
$31.20
QTY:

Sold By: EA
