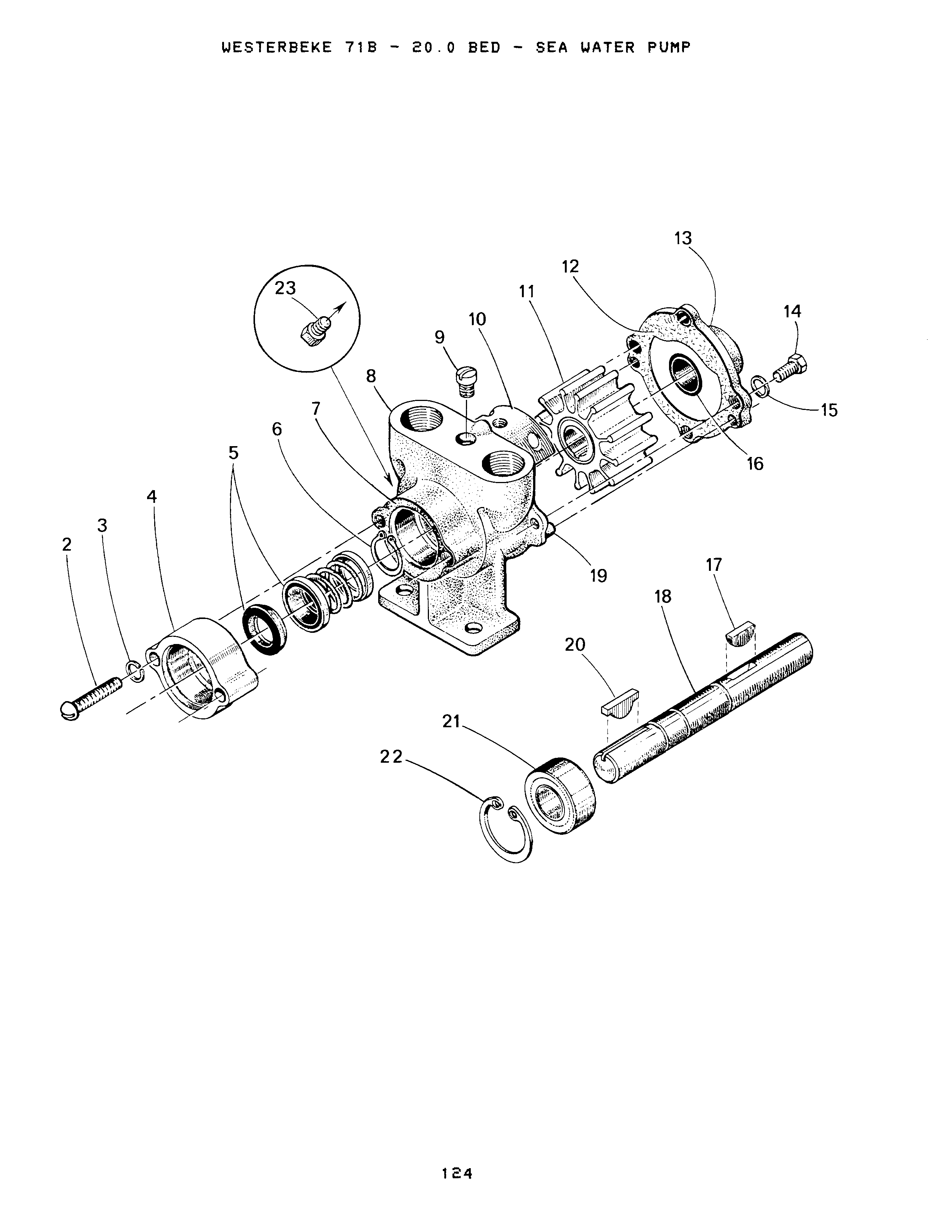

SEA WATER PUMP

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

PUMP

Part #: 038445

$1,517.90

QTY:

Sold By: EA

2

On Diagram

SCREW

Part #: 018147

$3.50

QTY:

Sold By: EA

3

On Diagram

LOCKWASHER 1/4 LIGHT

Part #: 032183

$2.60

QTY:

Sold By: EA

4

On Diagram

HOUSING

Part #: 018180

$157.10

QTY:

Sold By: EA

5

On Diagram

SEAL ASSEMBLY INCL SEAT

Part #: 014774

$109.20

QTY:

Sold By: EA

6

On Diagram

RING

Part #: 018145

$8.20

QTY:

Sold By: EA

7

On Diagram

GASKET

Part #: 018154

$8.90

QTY:

Sold By: EA

8

On Diagram

HOUSING

Part #: 039867

$257.20

QTY:

Sold By: EA

9

On Diagram

SCREW

Part #: 018151

$7.50

QTY:

Sold By: EA

10

On Diagram

CAM

Part #: 018152

$161.50

QTY:

Sold By: EA

11

On Diagram

IMPELLER KIT 38445

Part #: 011907

$52.50

QTY:

Sold By: KT

12

On Diagram

GASKET

Part #: 011419

$6.60

QTY:

Sold By: EA

13

On Diagram

COVER

Part #: 018153

$359.90

QTY:

Sold By: EA

14

On Diagram

CAPSCREW

Part #: 018143

$2.60

QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 1/4 LIGHT

Part #: 032183

$2.60

QTY:

Sold By: EA

16

On Diagram

BUSHING

Part #: 018149

$67.20

QTY:

Sold By: EA

17

On Diagram

KEY

Part #: 018148

$22.30

QTY:

Sold By: EA

18

On Diagram

SHAFT

Part #: 018164

$301.60

QTY:

Sold By: EA

19

On Diagram

DOWEL

Part #: 018142

$7.70

QTY:

Sold By: EA

20

On Diagram

KEY

Part #: 022392

$4.20

QTY:

Sold By: EA

21

On Diagram

BEARING

Part #: 018144

$49.20

QTY:

Sold By: EA

22

On Diagram

RING

Part #: 018146

$6.30

QTY:

Sold By: EA

23

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369

$4.50

QTY:

Sold By: EA

24

On Diagram

KIT

Part #: 033329

$418.30

QTY:

Sold By: KT
