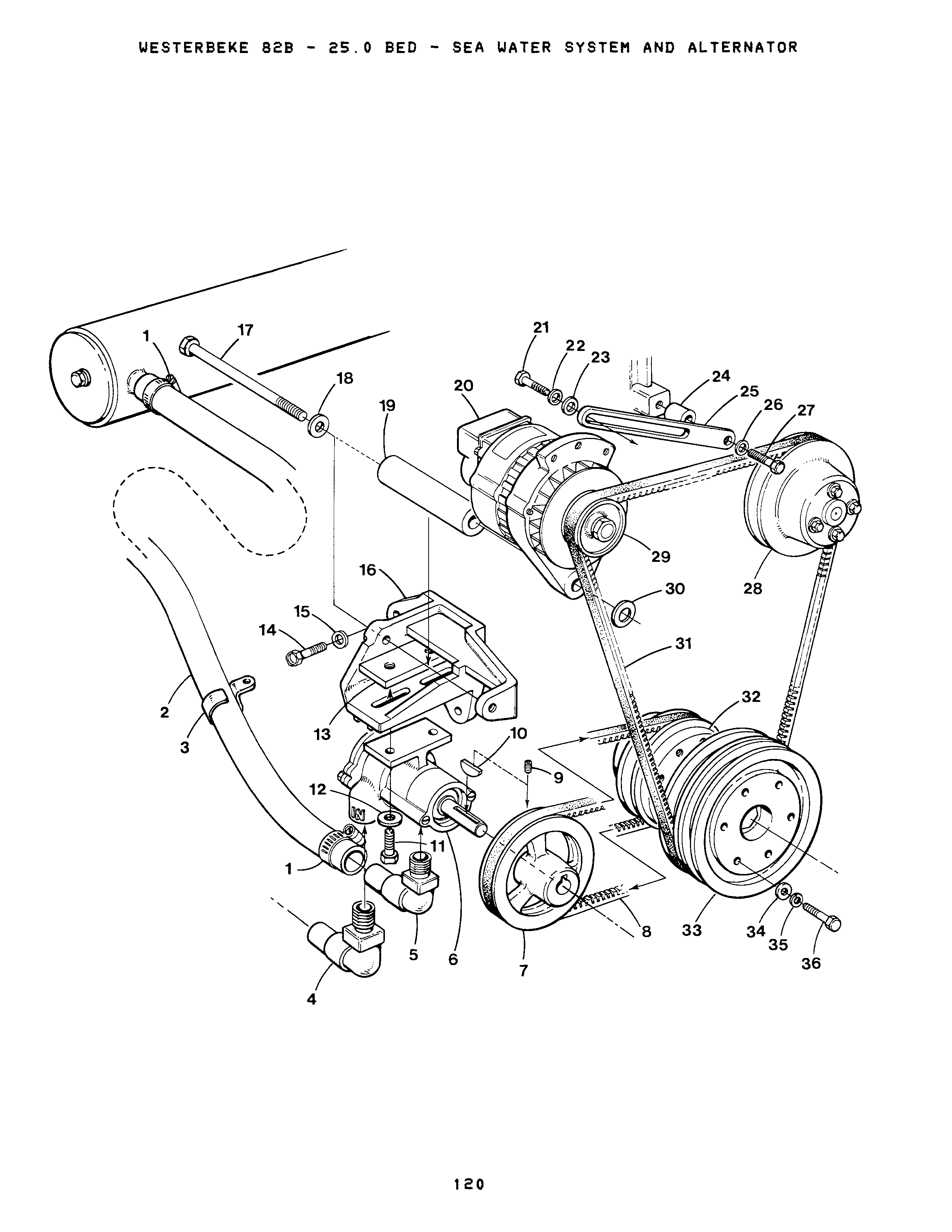

SEA WATER SYSTEM AND ALTERNATOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

2

On Diagram

HOSE 1 IN WIRE INSERTED

Part #: 011779

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$1.70
QTY:

Sold By: IN

3

On Diagram

CLAMP

Part #: 013741
$6.90
QTY:

Sold By: EA

4

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

5-1

On Diagram

NIPPLE 3/4 NPT x 1 HOSE

Part #: 036622
$134.80
QTY:

Sold By: EA

5-2

On Diagram

ELBOW 3/4NPT x 1 HOSE

Part #: 036614
$27.30
QTY:

Sold By: EA

6

On Diagram

PUMP

Part #: 038445
$1,517.90
QTY:

Sold By: EA

7-1

On Diagram

PULLEY

Part #: 011371
$192.10
QTY:

Sold By: EA

7-2

On Diagram

PULLEY

Part #: 038865
$87.10
QTY:

Sold By: EA

8-1

On Diagram

BELT

Part #: 013810
$36.30
QTY:

Sold By: EA

8-2

On Diagram

BELT

Part #: 031152
$16.80
QTY:

Sold By: EA

9

On Diagram

SETSCREW 5/16NCx3/8 SOCKET

Part #: 011357
$2.80
QTY:

Sold By: EA

10

On Diagram

KEY

Part #: 022392
$4.20
QTY:

Sold By: EA

11

On Diagram

CAPSCREW 3/8NFx1-1/4

Part #: 031631
$0.70
QTY:

Sold By: EA

12-1

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

12-2

On Diagram

WASHER

Part #: 031765
$0.30
QTY:

Sold By: EA

13

On Diagram

PLATE

Part #: 038435
$42.80
QTY:

Sold By: EA

14

On Diagram

CAPSCREW M10x1.25x30 JIS

Part #: 031083
$3.50
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

16-1

On Diagram

BRACKET

Part #: 038512
$309.70
QTY:

Sold By: EA

16-2

On Diagram

BRACKET

Part #: 038944
$571.90
QTY:

Sold By: EA

17-1

On Diagram

CAPSCREW 1/2NCx5-1/4

Part #: 031722
$4.30
QTY:

Sold By: EA

17-2

On Diagram

CAPSCREW 3/8NCx5-1/4

Part #: 031622
$4.30
QTY:

Sold By: EA

18-1

On Diagram

LOCKWASHER 1/2 MED

Part #: 031776
$0.20
QTY:

Sold By: EA

18-2

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

19-1

On Diagram

SPACER

Part #: 038111
$48.10
QTY:

Sold By: EA

19-2

On Diagram

SPACER

Part #: 030737
$33.80
QTY:

Sold By: EA

19-3

On Diagram

SPACER

Part #: 023413
$4.20
QTY:

Sold By: EA

20-1

On Diagram

ALTERNATOR 12VDC

Part #: 039790
$505.00
QTY:

Sold By: EA

20-2

On Diagram

ALTERNATOR

Part #: 038792

This part is no longer available.

Price not found
QTY:

Sold By: EA

20-3

On Diagram

REGULATOR

Part #: 038891

This part is replaced with part number 052635

Price not found
QTY:

Sold By: EA

20-4

On Diagram

ALTERNATOR 12VDC 160A

Part #: 038793
$1,454.50
QTY:

Sold By: EA

20-5

On Diagram

ALTERNATOR 12VDC 190A

Part #: 038794
$1,527.40
QTY:

Sold By: EA

20-6

On Diagram

REGULATOR

Part #: 038892

This part is replaced with part number 052635

Price not found
QTY:

Sold By: EA

21

On Diagram

CAPSCREW 5/16NCx1

Part #: 031555
$0.40
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

23

On Diagram

WASHER

Part #: 033381
$0.90
QTY:

Sold By: EA

24

On Diagram

SPACER

Part #: 021885
$5.20
QTY:

Sold By: EA

25

On Diagram

STRAP

Part #: 033064
$62.40
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

27

On Diagram

CAPSCREW M 8x70 DIN 931

Part #: 018812
$3.30
QTY:

Sold By: EA

28-1

On Diagram

PULLEY

Part #: 031037

This part is no longer available.

$60.30
QTY:

Sold By: EA

28-2

On Diagram

PULLEY

Part #: 031110

This part is no longer available.

$334.10
QTY:

Sold By: EA

29-1

On Diagram

PULLEY

Part #: 039354
$72.30
QTY:

Sold By: EA

29-2

On Diagram

PULLEY

Part #: 038440
$444.20
QTY:

Sold By: EA

30

On Diagram

SPACER

Part #: 030168
$33.90
QTY:

Sold By: EA

31-1

On Diagram

BELT

Part #: 039181
$35.00
QTY:

Sold By: EA

31-2

On Diagram

BELT

Part #: 036457
$39.50
QTY:

Sold By: EA

32

On Diagram

PULLEY

Part #: 038784
$435.70
QTY:

Sold By: EA

33

On Diagram

PULLEY

Part #: 038786
$408.00
QTY:

Sold By: EA

34

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

35

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

36

On Diagram

CAPSCREW M 8x30 DIN 933

Part #: 013619
$0.60
QTY:

Sold By: EA
