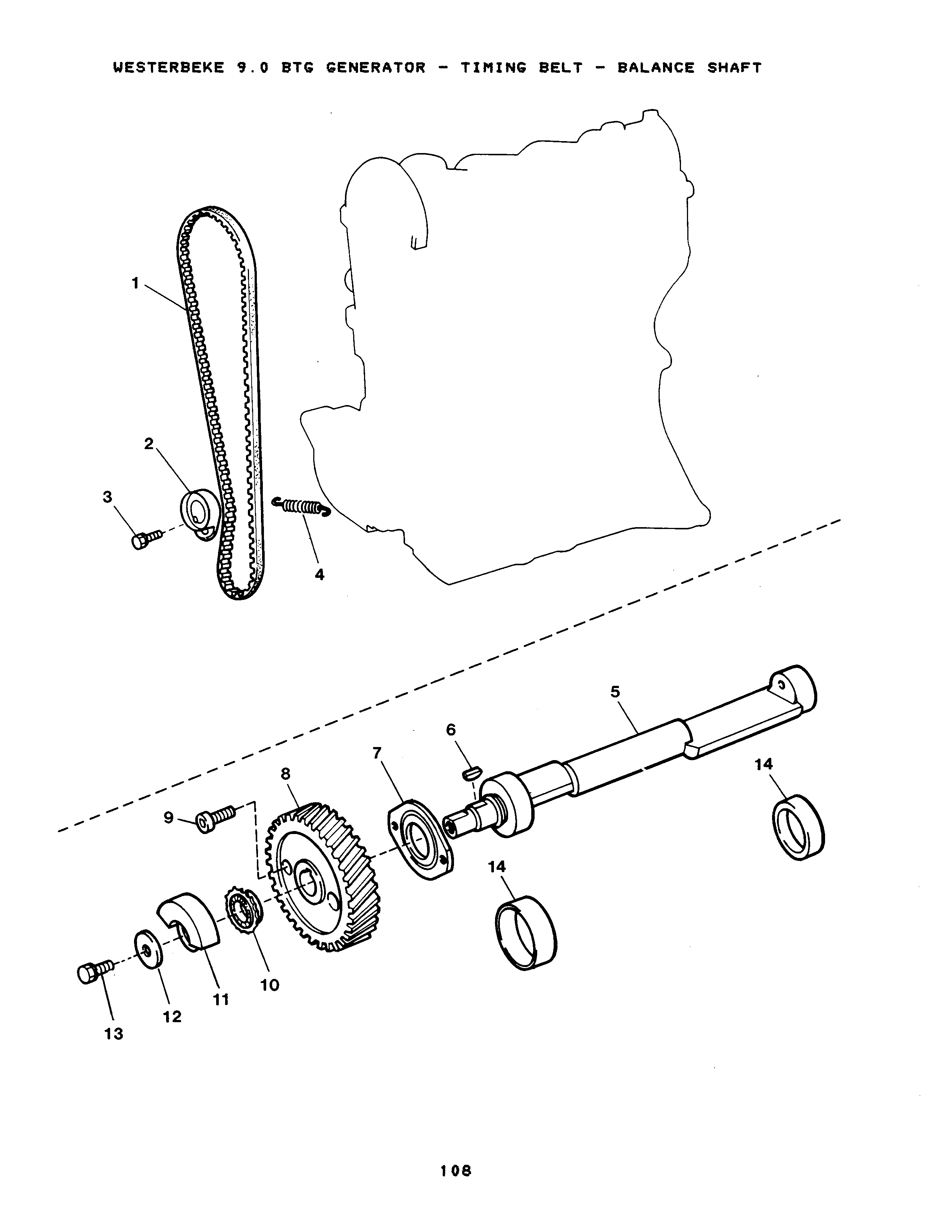

TIMING BELT - BALANCE SHAFT

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

BELT

Part #: 035578

$195.30

QTY:

Sold By: EA

2

On Diagram

TENSIONER

Part #: 035574

$223.30

QTY:

Sold By: EA

3

On Diagram

BOLT

Part #: 035783

$4.00

QTY:

Sold By: EA

4

On Diagram

SPRING

Part #: 035658

This part is no longer available.

$37.70

QTY:

Sold By: EA

5

On Diagram

SHAFT

Part #: 035546

This part is no longer available.

$462.70

QTY:

Sold By: EA

6

On Diagram

KEY

Part #: 035632

$5.20

QTY:

Sold By: EA

7

On Diagram

PLATE

Part #: 035550

$47.50

QTY:

Sold By: EA

8

On Diagram

GEAR

Part #: 035548

$387.50

QTY:

Sold By: EA

9

On Diagram

CAPSCREW M 8x35 DIN 912

Part #: 031925

$1.40

QTY:

Sold By: EA

10

On Diagram

SPROCKET

Part #: 035551

This part is no longer available.

$81.00

QTY:

Sold By: EA

11

On Diagram

WEIGHT

Part #: 035544

This part is no longer available.

$75.20

QTY:

Sold By: EA

12

On Diagram

WASHER

Part #: 035626

$4.00

QTY:

Sold By: EA

13

On Diagram

CAPSCREW M10x1.25x20 JIS-FLNGE

Part #: 033651

$7.00

QTY:

Sold By: EA

14-1

On Diagram

BEARING SET

Part #: 035507

$113.00

QTY:

Sold By: ST

14-2

On Diagram

BEARING SET

Part #: 035509

This part is no longer available.

$113.00

QTY:

Sold By: ST
