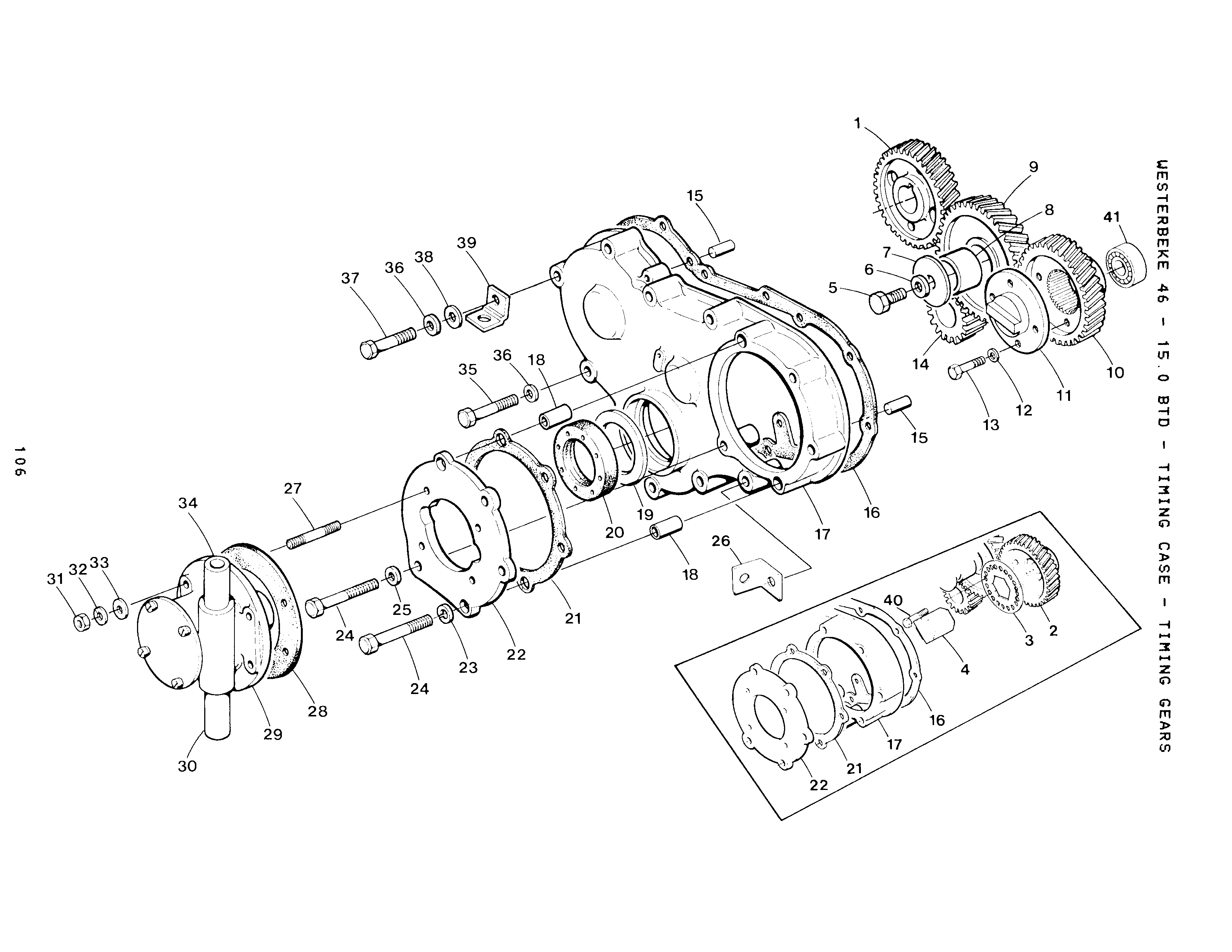

TIMING CASE - TIMING GEARS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

GEAR

Part #: 034355

This part is no longer available.

$562.90
QTY:

Sold By: EA

2

On Diagram

GEAR

Part #: 034358
$565.80
QTY:

Sold By: EA

3

On Diagram

PLATE

Part #: 034003

This part is no longer available.

Price not found
QTY:

Sold By: EA

4

On Diagram

TANG

Part #: 034000
$214.00
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x1.25x20 DIN 961

Part #: 024951
$1.70
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

7

On Diagram

PLATE

Part #: 034269
$26.80
QTY:

Sold By: EA

8-1

On Diagram

BUSHING

Part #: 034357
$28.50
QTY:

Sold By: EA

8-2

On Diagram

BUSHING

Part #: 037757
$28.50
QTY:

Sold By: EA

9

On Diagram

GEAR

Part #: 034356
$846.50
QTY:

Sold By: EA

10

On Diagram

GEAR

Part #: 036167
$850.80
QTY:

Sold By: EA

11

On Diagram

COUPLING

Part #: 036166
$859.40
QTY:

Sold By: EA

12

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

13

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

14

On Diagram

GEAR

Part #: 034354
$561.40
QTY:

Sold By: EA

15

On Diagram

DOWEL

Part #: 034316

This part is no longer available.

$24.20
QTY:

Sold By: EA

16

On Diagram

GASKET

Part #: 034325
$52.40
QTY:

Sold By: EA

17

On Diagram

CASE

Part #: 034326

This part is no longer available.

$755.90
QTY:

Sold By: EA

18

On Diagram

DOWEL

Part #: 035330

This part is no longer available.

Price not found
QTY:

Sold By: EA

19

On Diagram

PLATE

Part #: 034323
$39.80
QTY:

Sold By: EA

20

On Diagram

SEAL

Part #: 034324
$49.30
QTY:

Sold By: EA

21

On Diagram

GASKET

Part #: 034001
$11.60
QTY:

Sold By: EA

22

On Diagram

ADAPTER

Part #: 035266

This part is no longer available.

$238.70
QTY:

Sold By: EA

23

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

24

On Diagram

CAPSCREW M 8x60 DIN 931

Part #: 031225
$1.70
QTY:

Sold By: EA

25

On Diagram

WASHER

Part #: 030289

This part is no longer available. Use part number 057991.

$7.00
QTY:

Sold By: EA

26

On Diagram

BRACKET

Part #: 035328
$17.30
QTY:

Sold By: EA

27

On Diagram

STUD

Part #: 034007
$48.10
QTY:

Sold By: EA

28

On Diagram

GASKET

Part #: 011143
$16.00
QTY:

Sold By: EA

29

On Diagram

PUMP

Part #: 016423
$1,507.90
QTY:

Sold By: EA

30

On Diagram

NIPPLE 1/2 NPT x 1 HOSE

Part #: 036618
$26.20
QTY:

Sold By: EA

31

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

32

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

33

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

34

On Diagram

NIPPLE 1/2 NPT x 7/8 HOSE

Part #: 032230
$204.40
QTY:

Sold By: EA

35

On Diagram

CAPSCREW M 8x50 DIN 931

Part #: 024949
$1.50
QTY:

Sold By: EA

36

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

37

On Diagram

CAPSCREW M 8x45 DIN 931

Part #: 024948
$1.20
QTY:

Sold By: EA

38

On Diagram

WASHER M 8 DIN 125

Part #: 031787

This washer fits M-25XPB, M-35B, & M-40B engines manufactured March 1998 and after

$0.30
QTY:

Sold By: EA

39

On Diagram

BRACKET

Part #: 024922
$11.20
QTY:

Sold By: EA

40

On Diagram

SCREW

Part #: 034004

This part is no longer available.

$15.60
QTY:

Sold By: EA

41

On Diagram

BEARING

Part #: 036165
$112.30
QTY:

Sold By: EA
