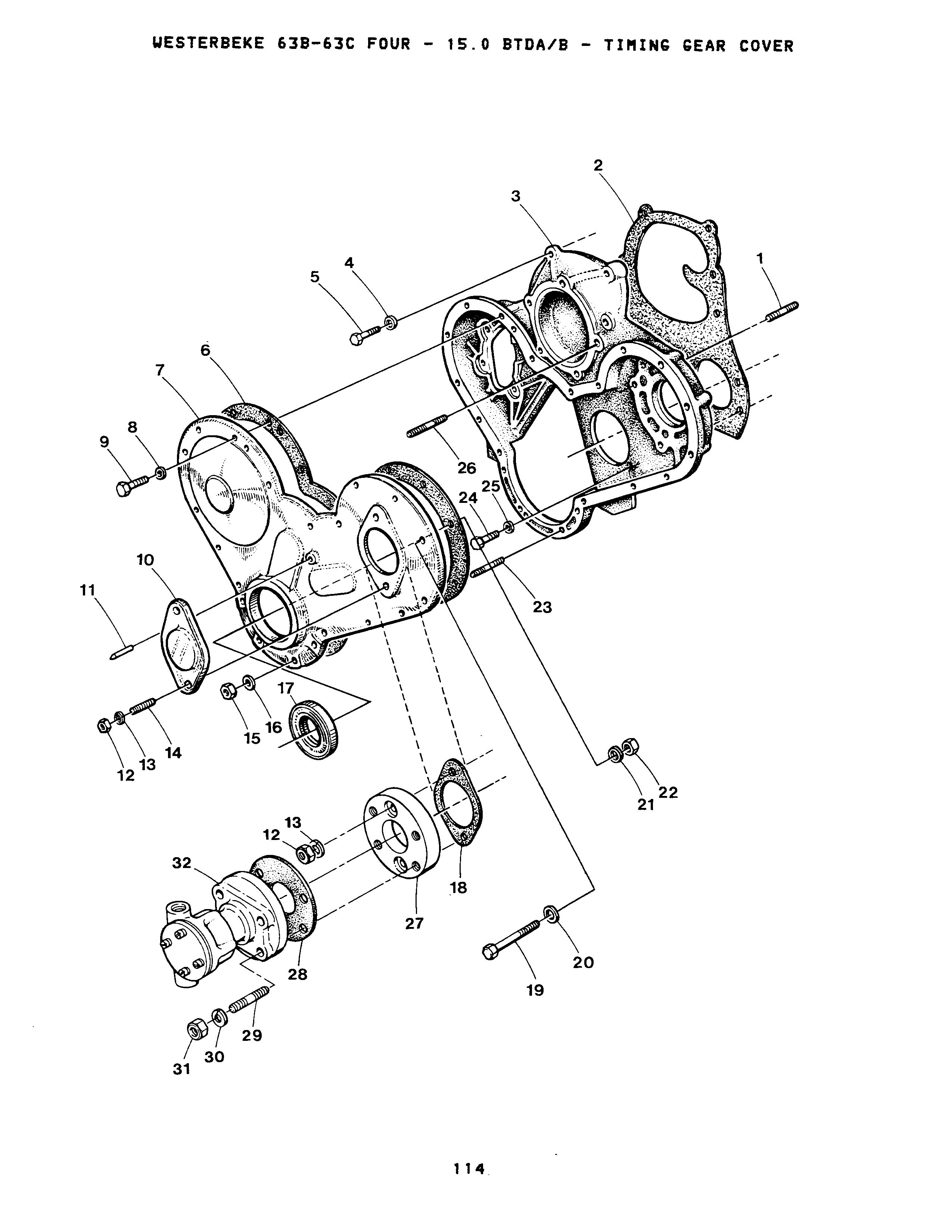

TIMING GEAR COVER

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

STUD

Part #: 032379

This part is no longer available.

$3.70
QTY:

Sold By: EA

2

On Diagram

GASKET

Part #: 030993

This part is no longer available.

$12.80
QTY:

Sold By: EA

3-1

On Diagram

CASE

Part #: 030992

This part is no longer available.

Price not found
QTY:

Sold By: EA

3-2

On Diagram

CASE

Part #: 043182

This part is no longer available.

Price not found
QTY:

Sold By: EA

4

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

6

On Diagram

GASKET

Part #: 030995
$65.00
QTY:

Sold By: EA

7-1

On Diagram

COVER

Part #: 030994

This part is replaced with part number 043163

Price not found
QTY:

Sold By: EA

7-2

On Diagram

COVER

Part #: 043163
$93.10
QTY:

Sold By: EA

8

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

9

On Diagram

CAPSCREW 5/16NFx2-1/4

Part #: 031585
$0.60
QTY:

Sold By: EA

10

On Diagram

COVER

Part #: 024398
$7.90
QTY:

Sold By: EA

11-1

On Diagram

POINTER

Part #: 030965

This part is no longer available.

$4.20
QTY:

Sold By: EA

11-2

On Diagram

POINTER

Part #: 043164
$0.90
QTY:

Sold By: EA

12

On Diagram

NUT 5/16-24 NF JAM

Part #: 031761
$0.30
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

14

On Diagram

STUD

Part #: 032381
$4.30
QTY:

Sold By: EA

15

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

17

On Diagram

SEAL

Part #: 031056
$24.70
QTY:

Sold By: EA

18

On Diagram

GASKET

Part #: 024399
$6.50
QTY:

Sold By: EA

19

On Diagram

CAPSCREW 5/16NFx3

Part #: 031588
$1.50
QTY:

Sold By: EA

20

On Diagram

WASHER

Part #: 031759
$0.20
QTY:

Sold By: EA

21

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

22

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

23

On Diagram

STUD

Part #: 032379

This part is no longer available.

$3.70
QTY:

Sold By: EA

24

On Diagram

CAPSCREW 5/16NFx7/8

Part #: 031579
$0.50
QTY:

Sold By: EA

25

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

26

On Diagram

STUD

Part #: 032383

This part is no longer available.

Price not found
QTY:

Sold By: EA

27

On Diagram

SPACER

Part #: 030106

This part is no longer available.

$170.70
QTY:

Sold By: EA

28

On Diagram

GASKET

Part #: 011143
$16.00
QTY:

Sold By: EA

29

On Diagram

STUD

Part #: 011263
$4.00
QTY:

Sold By: EA

30

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

31

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

32

On Diagram

PUMP

Part #: 016423
$1,507.90
QTY:

Sold By: EA
