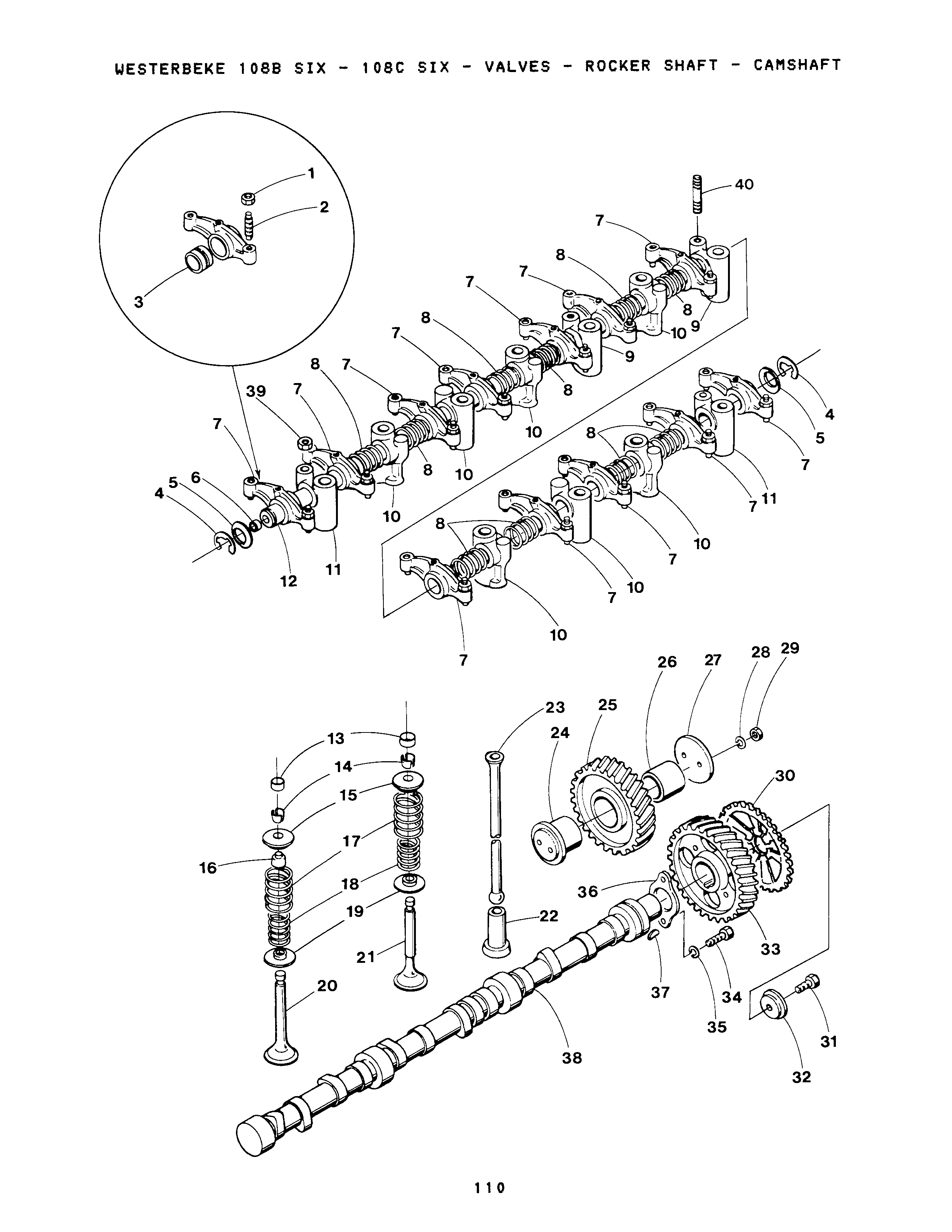

VALVES - ROCKER SHAFT - CAMSHAFT

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

NUT 5/16-24 NF JAM

Part #: 031761
$0.30
QTY:

Sold By: EA

2

On Diagram

SCREW

Part #: 024432
$7.30
QTY:

Sold By: EA

3

On Diagram

BUSHING

Part #: 024431
$10.00
QTY:

Sold By: EA

4

On Diagram

CIRCLIP

Part #: 033658
$2.20
QTY:

Sold By: EA

5

On Diagram

WASHER

Part #: 024437
$1.70
QTY:

Sold By: EA

6

On Diagram

PLUG

Part #: 033659
$4.70
QTY:

Sold By: EA

7-1

On Diagram

ROCKER

Part #: 032772

This part is replaced with part number 040709

Price not found
QTY:

Sold By: EA

7-2

On Diagram

ROCKER 108C

Part #: 040709

This part is no longer available.

$317.00
QTY:

Sold By: EA

8

On Diagram

SPRING

Part #: 024436
$1.70
QTY:

Sold By: EA

9

On Diagram

BRACKET

Part #: 033664
$37.30
QTY:

Sold By: EA

10

On Diagram

BRACKET

Part #: 024435
$38.50
QTY:

Sold By: EA

11

On Diagram

BRACKET

Part #: 024434
$42.30
QTY:

Sold By: EA

12

On Diagram

SHAFT

Part #: 032902

This part is no longer available.

$277.20
QTY:

Sold By: EA

13

On Diagram

CAP

Part #: 024351

This part is no longer available.

$6.00
QTY:

Sold By: EA

14-1

On Diagram

COTTER

Part #: 024429

This part is no longer available.

$10.90
QTY:

Sold By: EA

14-2

On Diagram

COTTER

Part #: 040708

This part is no longer available.

$6.70
QTY:

Sold By: EA

15-1

On Diagram

SEAT

Part #: 024424
$9.10
QTY:

Sold By: EA

15-2

On Diagram

SEAT

Part #: 040705
$5.50
QTY:

Sold By: EA

16-1

On Diagram

SEAL

Part #: 032805
$23.10
QTY:

Sold By: EA

16-2

On Diagram

SEAL

Part #: 040655
$10.60
QTY:

Sold By: EA

17

On Diagram

SPRING

Part #: 024425

This part is no longer available.

$24.90
QTY:

Sold By: EA

18

On Diagram

SPRING

Part #: 024426

This part is no longer available.

$16.20
QTY:

Sold By: EA

19-1

On Diagram

SEAT

Part #: 024427

This part is no longer available.

$5.00
QTY:

Sold By: EA

19-2

On Diagram

SEAT

Part #: 040706
$5.50
QTY:

Sold By: EA

20-1

On Diagram

VALVE

Part #: 024423

This part is no longer available.

$83.00
QTY:

Sold By: EA

20-2

On Diagram

VALVE

Part #: 040704
$43.20
QTY:

Sold By: EA

21-1

On Diagram

VALVE

Part #: 024346

This part is no longer available.

$101.40
QTY:

Sold By: EA

21-2

On Diagram

VALVE

Part #: 040707
$52.60
QTY:

Sold By: EA

22

On Diagram

TAPPET

Part #: 030966
$73.50
QTY:

Sold By: EA

23-1

On Diagram

PUSHROD

Part #: 032683
$35.60
QTY:

Sold By: EA

23-2

On Diagram

PUSHROD

Part #: 024440

This part is no longer available.

$30.90
QTY:

Sold By: EA

24-1

On Diagram

HUB

Part #: 037208

This part is no longer available.

$94.50
QTY:

Sold By: EA

24-2

On Diagram

HUB

Part #: 040711
$45.90
QTY:

Sold By: EA

25

On Diagram

GEAR

Part #: 032773

This part is no longer available.

$145.00
QTY:

Sold By: EA

26

On Diagram

BUSHING

Part #: 032826
$84.50
QTY:

Sold By: EA

27

On Diagram

PLATE

Part #: 024443

This part is no longer available.

$10.60
QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

29

On Diagram

NUT 5/16-24 NF

Part #: 031760
$0.30
QTY:

Sold By: EA

30

On Diagram

GEAR

Part #: 032775

This part is no longer available.

$36.00
QTY:

Sold By: EA

31-1

On Diagram

CAPSCREW

Part #: 031731
Price not found
QTY:

Sold By: each

31-2

On Diagram

BOLT

Part #: 040714
$12.10
QTY:

Sold By: EA

32

On Diagram

PLATE

Part #: 031014
$24.50
QTY:

Sold By: EA

33

On Diagram

GEAR

Part #: 032774

This part is no longer available.

$211.70
QTY:

Sold By: EA

34

On Diagram

CAPSCREW 5/16NFx5/8

Part #: 031577
$0.50
QTY:

Sold By: EA

35

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758
$0.20
QTY:

Sold By: EA

36-1

On Diagram

PLATE

Part #: 024446

This part is no longer available.

$37.20
QTY:

Sold By: EA

36-2

On Diagram

PLATE

Part #: 040713
$18.10
QTY:

Sold By: EA

37

On Diagram

KEY

Part #: 024445
$8.90
QTY:

Sold By: EA

38-1

On Diagram

CAMSHAFT

Part #: 032866

This part is no longer available.

Price not found
QTY:

Sold By: EA

38-2

On Diagram

CAMSHAFT 108C

Part #: 040712
$665.40
QTY:

Sold By: EA

39-1

On Diagram

NUT

Part #: 032883
$7.90
QTY:

Sold By: EA

40

On Diagram

STUD

Part #: 040710
$7.30
QTY:

Sold By: EA
