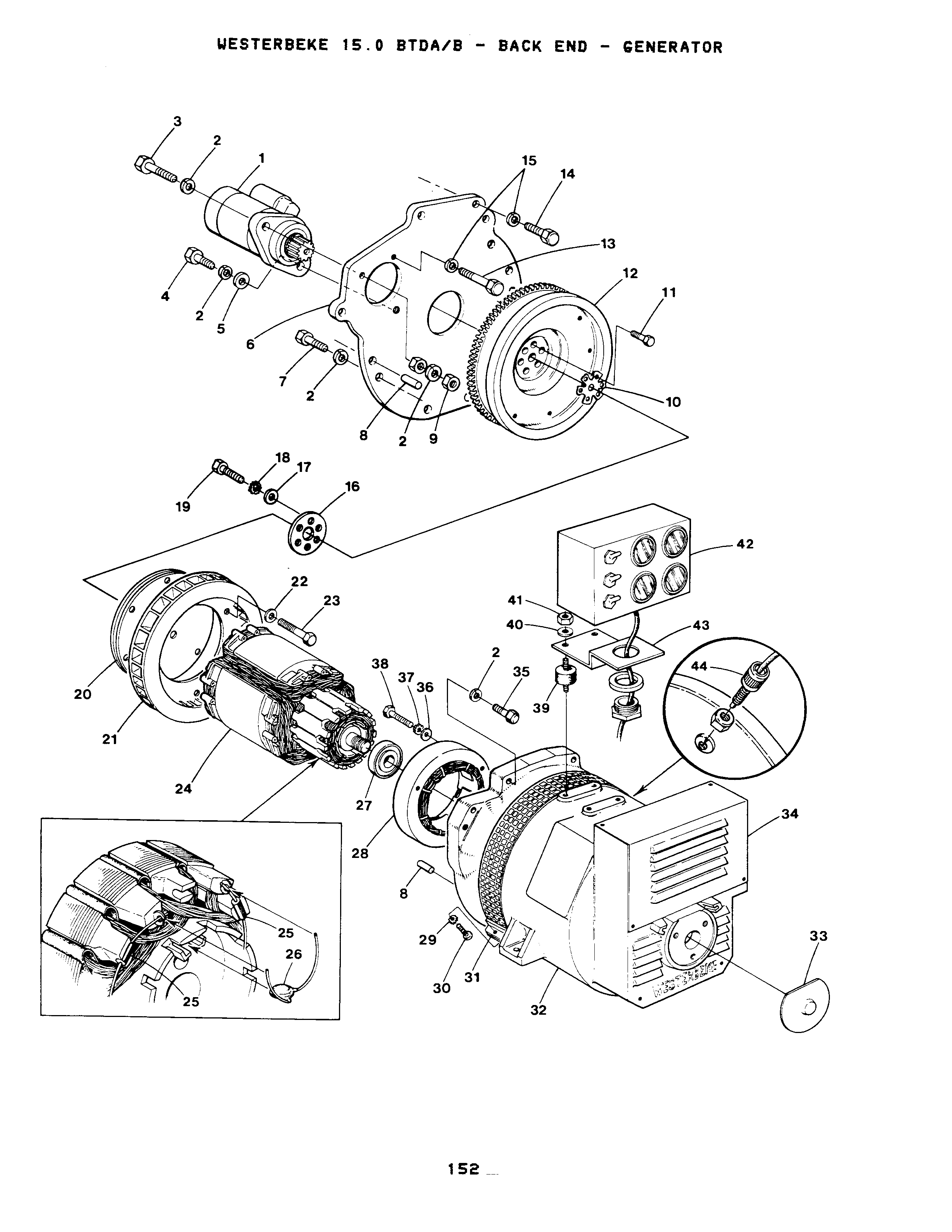

15.0 BTDA/B - BACK END - GENERATOR

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1-1

On Diagram

MOTOR

Part #: 030593
$1,892.70
QTY:

Sold By: EA

1-2

On Diagram

MOTOR

Part #: 042111
$2,695.40
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

CAPSCREW M10x60 DIN 912 FULLY

Part #: 034833
$3.00
QTY:

Sold By: EA

4

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

5

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

6

On Diagram

PLATE

Part #: 038006
$379.20
QTY:

Sold By: EA

7

On Diagram

CAPSCREW M10x35 DIN 933

Part #: 031926
$2.00
QTY:

Sold By: EA

8

On Diagram

DOWEL

Part #: 019039
$1.20
QTY:

Sold By: EA

9

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

10

On Diagram

TABWASHER

Part #: 031166
$67.60
QTY:

Sold By: EA

11

On Diagram

BOLT

Part #: 024411

This part is no longer available.

$7.30
QTY:

Sold By: EA

12-1

On Diagram

FLYWHEEL

Part #: 038008

This part is no longer available.

Price not found
QTY:

Sold By: EA

12-2

On Diagram

GEAR

Part #: 037735

This part is no longer available.

$188.50
QTY:

Sold By: EA

13

On Diagram

CAPSCREW 3/8NFx1-1/4

Part #: 031631
$0.70
QTY:

Sold By: EA

14

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630
$0.50
QTY:

Sold By: EA

15

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

16

On Diagram

PLATE

Part #: 035928
Price not found
QTY:

Sold By: EA

17

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

18

On Diagram

LOCKWASHER M10 DIN 6797A

Part #: 031915
$0.50
QTY:

Sold By: EA

19

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

20

On Diagram

PLATE

Part #: 035927
$92.30
QTY:

Sold By: EA

21

On Diagram

FAN

Part #: 035929
$175.80
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER M 8 DIN 6797J

Part #: 031835
$0.40
QTY:

Sold By: EA

23

On Diagram

CAPSCREW M 8x20 DIN 933

Part #: 017196
$0.60
QTY:

Sold By: EA

24-1

On Diagram

ARMATURE BT 15KW 1PH

Part #: 037468
$3,414.90
QTY:

Sold By: EA

24-2

On Diagram

ARMATURE

Part #: 039342

This part is no longer available.

Price not found
QTY:

Sold By: EA

24-3

On Diagram

ARMATURE BT 15KW 3PH FR S/N500

Part #: 039908
$2,464.40
QTY:

Sold By: EA

25

On Diagram

VARISTOR

Part #: 035943
$52.80
QTY:

Sold By: EA

26

On Diagram

DIODE

Part #: 035931
$52.80
QTY:

Sold By: EA

27

On Diagram

BEARING

Part #: 037460
$115.10
QTY:

Sold By: EA

28-1

On Diagram

STATOR

Part #: 037467
$703.10
QTY:

Sold By: EA

28-2

On Diagram

STATOR

Part #: 039340

This part is no longer available.

$263.20
QTY:

Sold By: EA

28-3

On Diagram

STATOR

Part #: 039912
$515.30
QTY:

Sold By: EA

29

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

30

On Diagram

SCREW M 5 X 20 DIN 84A

Part #: 031920
$1.70
QTY:

Sold By: EA

31

On Diagram

GUARD

Part #: 035935
$105.50
QTY:

Sold By: EA

32-1

On Diagram

GENERATOR 15.0KW BT 1 Phase

Part #: 037430
$5,856.90
QTY:

Sold By: EA

32-2

On Diagram

STATOR ASSY INCL HOUSING BT15

Part #: 037469
$4,155.20
QTY:

Sold By: EA

32-3

On Diagram

STATOR BT-15KW

Part #: 037470

This part is no longer available.

$3,620.70
QTY:

Sold By: EA

32-4

On Diagram

GENERATOR 15KW BT 3 Phase FROM S/N 500

Part #: 039913
$5,933.40
QTY:

Sold By: EA

32-5

On Diagram

STATOR ASSY INCL HSG 15BDH

Part #: 039911
$3,855.00
QTY:

Sold By: EA

32-6

On Diagram

STATOR 15KW 3PH

Part #: 038466

This part is no longer available.

$1,491.80
QTY:

Sold By: EA

32-7

On Diagram

STATOR BT-15KW 3PH FR S/N 500

Part #: 039910
$1,533.30
QTY:

Sold By: EA

33

On Diagram

COVER

Part #: 036701
$60.50
QTY:

Sold By: EA

34

On Diagram

COVER

Part #: 037851
$90.40
QTY:

Sold By: EA

35

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

36

On Diagram

WASHER M 5 DIN 125

Part #: 031781
$0.30
QTY:

Sold By: EA

37

On Diagram

LOCKWASHER M 5 DIN 6797A

Part #: 031914
$0.20
QTY:

Sold By: EA

38

On Diagram

CAPSCREW M 5x35 DIN 912

Part #: 031919
$0.90
QTY:

Sold By: EA

39

On Diagram

ISOLATOR

Part #: 036652
$13.70
QTY:

Sold By: EA

40

On Diagram

LOCKWASHER M 6 DIN 127

Part #: 031783
$0.20
QTY:

Sold By: EA

41

On Diagram

NUT M 6 DIN 934

Part #: 015812
$1.10
QTY:

Sold By: EA

43

On Diagram

BRACKET

Part #: 036465
$18.40
QTY:

Sold By: EA

44

On Diagram

SENSOR

Part #: 039172
$93.70
QTY:

Sold By: EA
