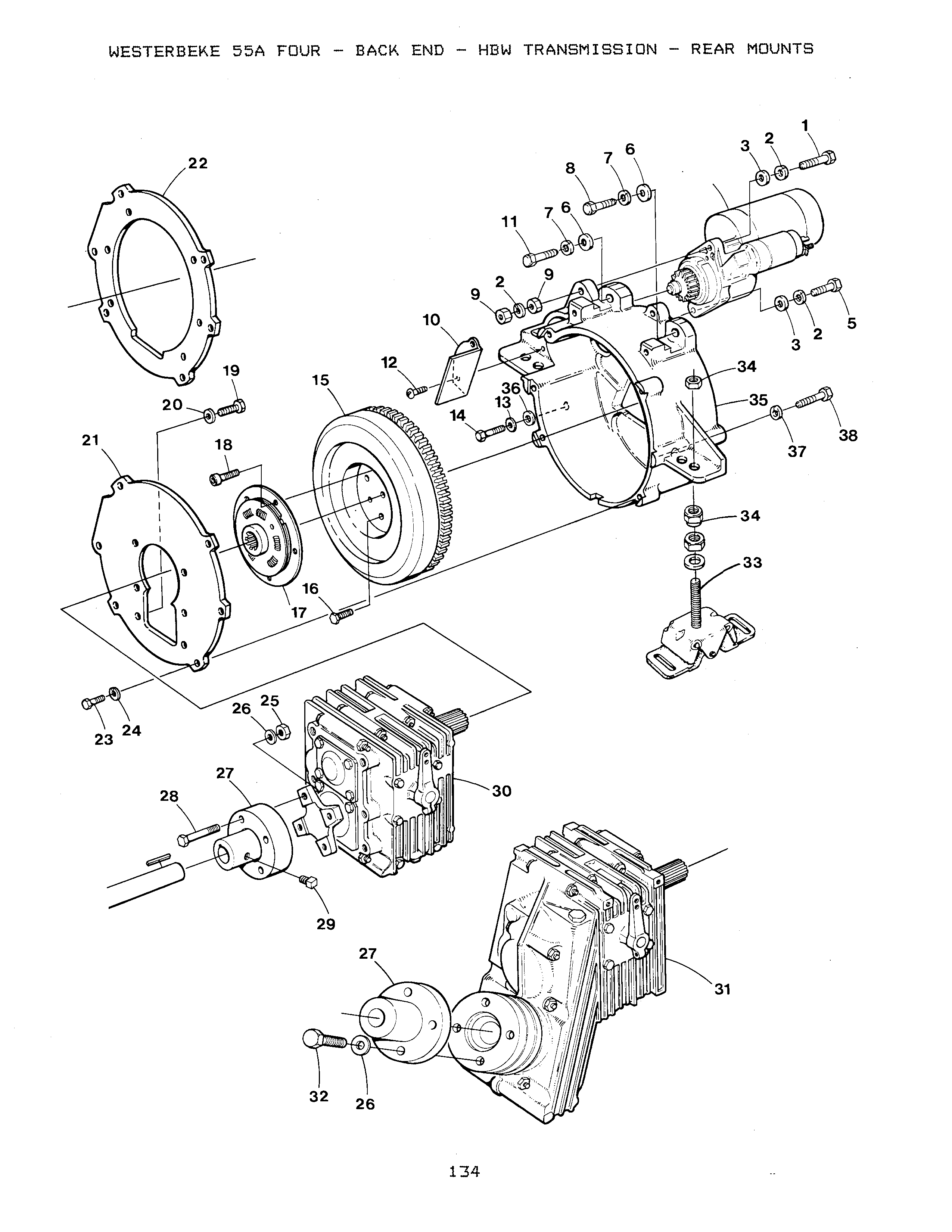

BACK END - HBW TRANSMISSION - REAR MOUNTS

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram
$3.00
QTY:

Sold By: EA

2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

3

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

4

On Diagram

MOTOR

Part #: 030593
$1,892.70
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

6

On Diagram

WASHER M14 DIN 125

Part #: 031798
$1.30
QTY:

Sold By: EA

7

On Diagram

LOCKWASHER M14 DIN 127

Part #: 031797
$0.50
QTY:

Sold By: EA

8

On Diagram
$5.50
QTY:

Sold By: EA

9

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

10

On Diagram

COVER

Part #: 039830
$15.40
QTY:

Sold By: EA

11

On Diagram
$5.20
QTY:

Sold By: EA

12

On Diagram
$2.20
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER M14 DIN 127

Part #: 031797
$0.50
QTY:

Sold By: EA

14

On Diagram
$5.50
QTY:

Sold By: EA

15-1

On Diagram

FLYWHEEL ASSEMBLY 55A

Part #: 039798

This part is no longer available.

$555.80
QTY:

Sold By: EA

15-2

On Diagram

GEAR

Part #: 030230
$172.60
QTY:

Sold By: EA

16

On Diagram

BOLT

Part #: 040082
$7.30
QTY:

Sold By: EA

17-1

On Diagram

DAMPER

Part #: 019398
$1,219.30
QTY:

Sold By: EA

17-2

On Diagram

DAMPER

Part #: 011618
$705.20
QTY:

Sold By: EA

18

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

19-1

On Diagram

CAPSCREW M 8x18 DIN 933

Part #: 020650
$0.70
QTY:

Sold By: EA

19-2

On Diagram

CAPSCREW M10x20 DIN 933

Part #: 018813
$1.10
QTY:

Sold By: EA

20-1

On Diagram

LOCKWASHER M 8 DIN 127

Part #: 031786
$0.20
QTY:

Sold By: EA

20-2

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

21-1

On Diagram

ADAPTER

Part #: 039762
$203.50
QTY:

Sold By: EA

21-2

On Diagram

ADAPTER

Part #: 040008
$227.10
QTY:

Sold By: EA

21-3

On Diagram

ADAPTER

Part #: 039763

This part is no longer available.

$301.80
QTY:

Sold By: EA

22

On Diagram

ADAPTER

Part #: 040407
$246.80
QTY:

Sold By: EA

23

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

24

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

25

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

27-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

27-2

On Diagram

COUPLING 0.875

Part #: 023707
$365.60
QTY:

Sold By: EA

27-3

On Diagram

COUPLING 1.000

Part #: 023708
$475.70
QTY:

Sold By: EA

27-4

On Diagram

COUPLING 1.125

Part #: 023709
$631.00
QTY:

Sold By: EA

27-5

On Diagram

COUPLING 1.250

Part #: 023710
$631.00
QTY:

Sold By: EA

27-6

On Diagram

COUPLING 1.375

Part #: 023711

This part is no longer available.

$338.70
QTY:

Sold By: EA

27-7

On Diagram

COUPLING 1.500

Part #: 023712
$631.00
QTY:

Sold By: EA

28

On Diagram
$2.10
QTY:

Sold By: EA

29

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

30-1

On Diagram

TRANSMISSION 1.9:1 ZF15M

Part #: 024631
$2,085.80
QTY:

Sold By: EA

30-2

On Diagram

TRANSMISSION 2.7:1 ZF25M

Part #: 032566
$2,645.80
QTY:

Sold By: EA

30-3

On Diagram

TRANSMISSION 2.6:1 ZF12M

Part #: 030049

This part is no longer available.

$2,022.90
QTY:

Sold By: EA

31-1

On Diagram

HBW GEAR

Part #: 031249

This part is no longer available.

Price not found
QTY:

Sold By: EA

31-2

On Diagram

TRANSMISSION 2:1 ZF15MIV

Part #: 030048
$3,516.00
QTY:

Sold By: EA

32

On Diagram

CAPSCREW M10x25 DIN 933

Part #: 013629
$1.40
QTY:

Sold By: EA

33

On Diagram

ISOLATOR

Part #: 040511
$431.00
QTY:

Sold By: EA

34

On Diagram

NUT M16 JAM SELF-LOCKING

Part #: 040966
$3.10
QTY:

Sold By: EA

35

On Diagram

HOUSING

Part #: 041727
$1,160.80
QTY:

Sold By: EA

36

On Diagram

WASHER M14 DIN 125

Part #: 031798
$1.30
QTY:

Sold By: EA

37

On Diagram

LOCKWASHER M14 DIN 127

Part #: 031797
$0.50
QTY:

Sold By: EA

38

On Diagram
$4.20
QTY:

Sold By: EA
