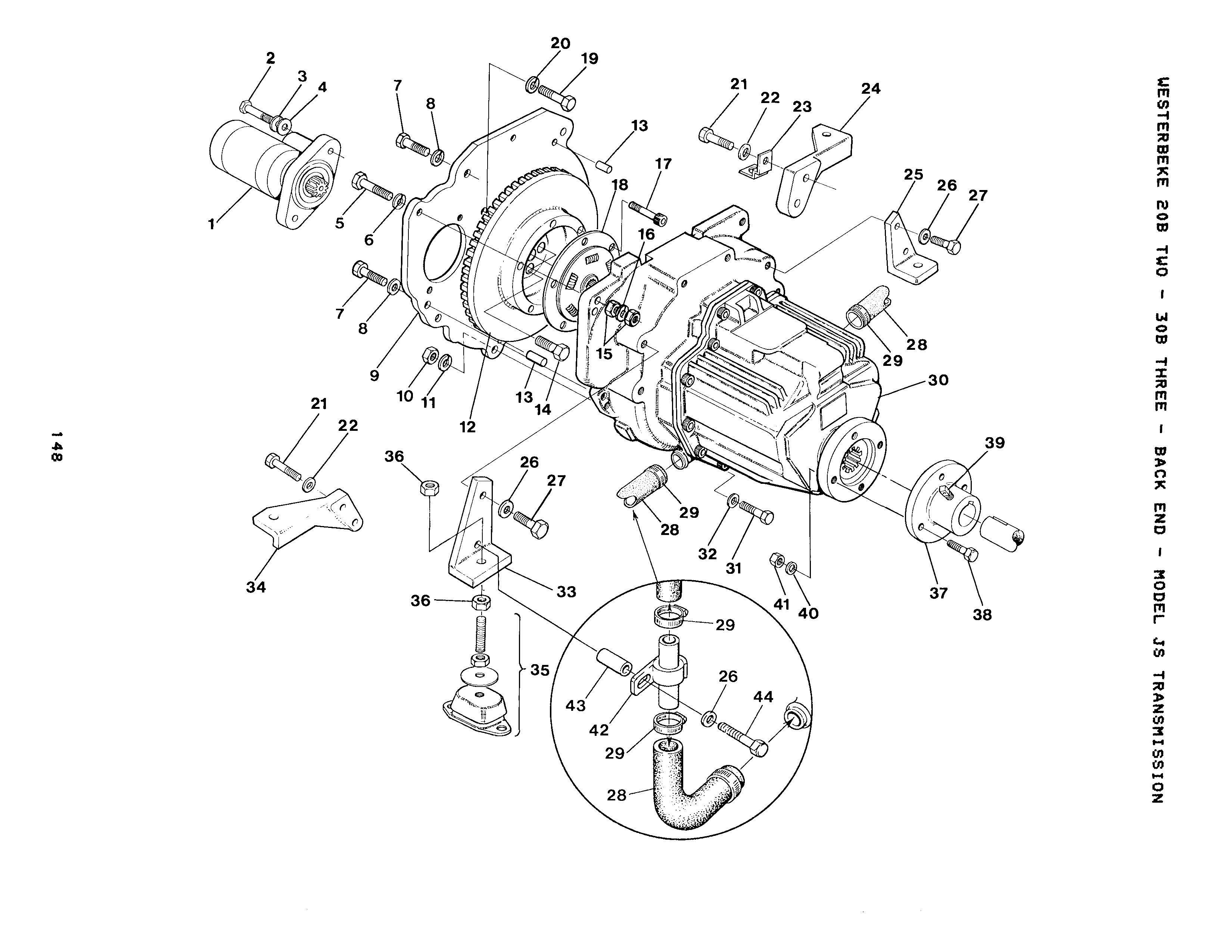

BACK END - JS TRANSMISSION

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

MOTOR

Part #: 034552
$835.20
QTY:

Sold By: EA

2

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

3

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

4

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

5

On Diagram

CAPSCREW M10x55 DIN 933

Part #: 013631
$2.30
QTY:

Sold By: EA

6

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

7

On Diagram

CAPSCREW M10x30 DIN 933

Part #: 034589
$1.30
QTY:

Sold By: EA

8

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

9

On Diagram

PLATE

Part #: 036051
$347.10
QTY:

Sold By: EA

10

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

11

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

12-1

On Diagram

FLYWHEEL ASSEMBLY

Part #: 036554
$420.60
QTY:

Sold By: EA

12-2

On Diagram

FLYWHEEL ASSEMBLY

Part #: 036554
$420.60
QTY:

Sold By: EA

12-3

On Diagram

FLYWHEEL ASSEMBLY

Part #: 039706
$373.50
QTY:

Sold By: EA

12-4

On Diagram

PIN

Part #: 039779
$2.00
QTY:

Sold By: EA

12-5

On Diagram

GEAR

Part #: 032996
$120.70
QTY:

Sold By: EA

13

On Diagram

DOWEL

Part #: 013919
$1.10
QTY:

Sold By: EA

14

On Diagram

BOLT

Part #: 036924
$7.80
QTY:

Sold By: EA

15

On Diagram

NUT M10 DIN 934

Part #: 015887
$0.60
QTY:

Sold By: EA

16

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

17

On Diagram

SCREW

Part #: 024778
$5.10
QTY:

Sold By: EA

18

On Diagram

DAMPER

Part #: 030940

This part is no longer available and is replaced with part number 056032.

Price not found
QTY:

Sold By: EA

19

On Diagram

CAPSCREW M10x1.25x25 DIN 961

Part #: 024952
$2.20
QTY:

Sold By: EA

20

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

21

On Diagram

CAPSCREW M10x1.25x35 DIN 961

Part #: 024953
$1.20
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

23

On Diagram

BRACKET

Part #: 024922
$11.20
QTY:

Sold By: EA

24

On Diagram

MOUNT

Part #: 036812

ATTN BENETEAU OWNERS! Do not use this mount! If your Westerbeke 30B Three engine is installed in a Beneteau, use FRONT RIGHT mount part number 044129

$300.40
QTY:

Sold By: EA

25

On Diagram

MOUNT

Part #: 036560

This part is replaced with part number 042032

Price not found
QTY:

Sold By: EA

26

On Diagram

LOCKWASHER M12 DIN 127

Part #: 031792
$0.40
QTY:

Sold By: EA

27

On Diagram

CAPSCREW M12x1.25x30 DIN 961

Part #: 031834
$3.00
QTY:

Sold By: EA

28

On Diagram

HOSE

Part #: 037154
$36.60
QTY:

Sold By: EA

29

On Diagram

CLAMP

Part #: 011405
$3.20
QTY:

Sold By: EA

30

On Diagram

GEAR

Part #: 035822

This part is no longer available.

Price not found
QTY:

Sold By: EA

31

On Diagram

CAPSCREW M10x45 DIN 931

Part #: 034470
$1.40
QTY:

Sold By: EA

32

On Diagram

WASHER M10 DIN 125

Part #: 031789
$1.30
QTY:

Sold By: EA

33

On Diagram

MOUNT

Part #: 036559

This part is replaced with part number 042030

Price not found
QTY:

Sold By: EA

34

On Diagram

MOUNT

Part #: 036810

ATTN BENETEAU OWNERS! Do not use this mount! If your Westerbeke 30B Three engine is installed in a Beneteau, use FRONT LEFT mount part number 044130

$309.80
QTY:

Sold By: EA

35-1

On Diagram

ISOLATOR ASSEMBLY

Part #: 040621

ATTENTION! There are several applications and variables for this isolator assembly. PLEASE contact us before ordering to make sure you receive the correct part(s).

$204.40
QTY:

Sold By: EA

35-2

On Diagram

ISOLATOR ASSEMBLY

Part #: 040621

ATTENTION! There are several applications and variables for this isolator assembly. PLEASE contact us before ordering to make sure you receive the correct part(s).

$204.40
QTY:

Sold By: EA

35-3

On Diagram

ISOLATOR ASSEMBLY

Part #: 303062

ATTENTION! There are several applications and variables for this isolator assembly. PLEASE contact us before ordering to make sure you receive the correct part(s).

$190.60
QTY:

Sold By: EA

36

On Diagram

NUT M12 DIN 985 LOCKING

Part #: 037353
$1.20
QTY:

Sold By: EA

37-1

On Diagram

COUPLING 0.750

Part #: 023706
$343.30
QTY:

Sold By: EA

37-2

On Diagram

COUPLING 0.875

Part #: 023707
$365.60
QTY:

Sold By: EA

37-3

On Diagram

COUPLING 1.000

Part #: 023708
$475.70
QTY:

Sold By: EA

37-4

On Diagram

COUPLING 1.125

Part #: 023709
$631.00
QTY:

Sold By: EA

37-5

On Diagram

COUPLING 1.250

Part #: 023710
$631.00
QTY:

Sold By: EA

37-6

On Diagram

COUPLING 1.375

Part #: 023711

This part is no longer available.

$338.70
QTY:

Sold By: EA

37-7

On Diagram

COUPLING 1.500

Part #: 023712
$631.00
QTY:

Sold By: EA

38

On Diagram

CAPSCREW M10x1.25x30 DIN 961

Part #: 031228
$2.10
QTY:

Sold By: EA

39

On Diagram

SCREW

Part #: 023652
$7.30
QTY:

Sold By: EA

40

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

41

On Diagram

NUT M10 X 1.25 DIN 934

Part #: 024950
$1.10
QTY:

Sold By: EA

42

On Diagram

CONNECTOR

Part #: 037504
$74.20
QTY:

Sold By: EA

43

On Diagram

SPACER

Part #: 034189
$39.20
QTY:

Sold By: EA

44

On Diagram

CAPSCREW M12x1.25x80 DIN 960

Part #: 037507
$5.30
QTY:

Sold By: EA
