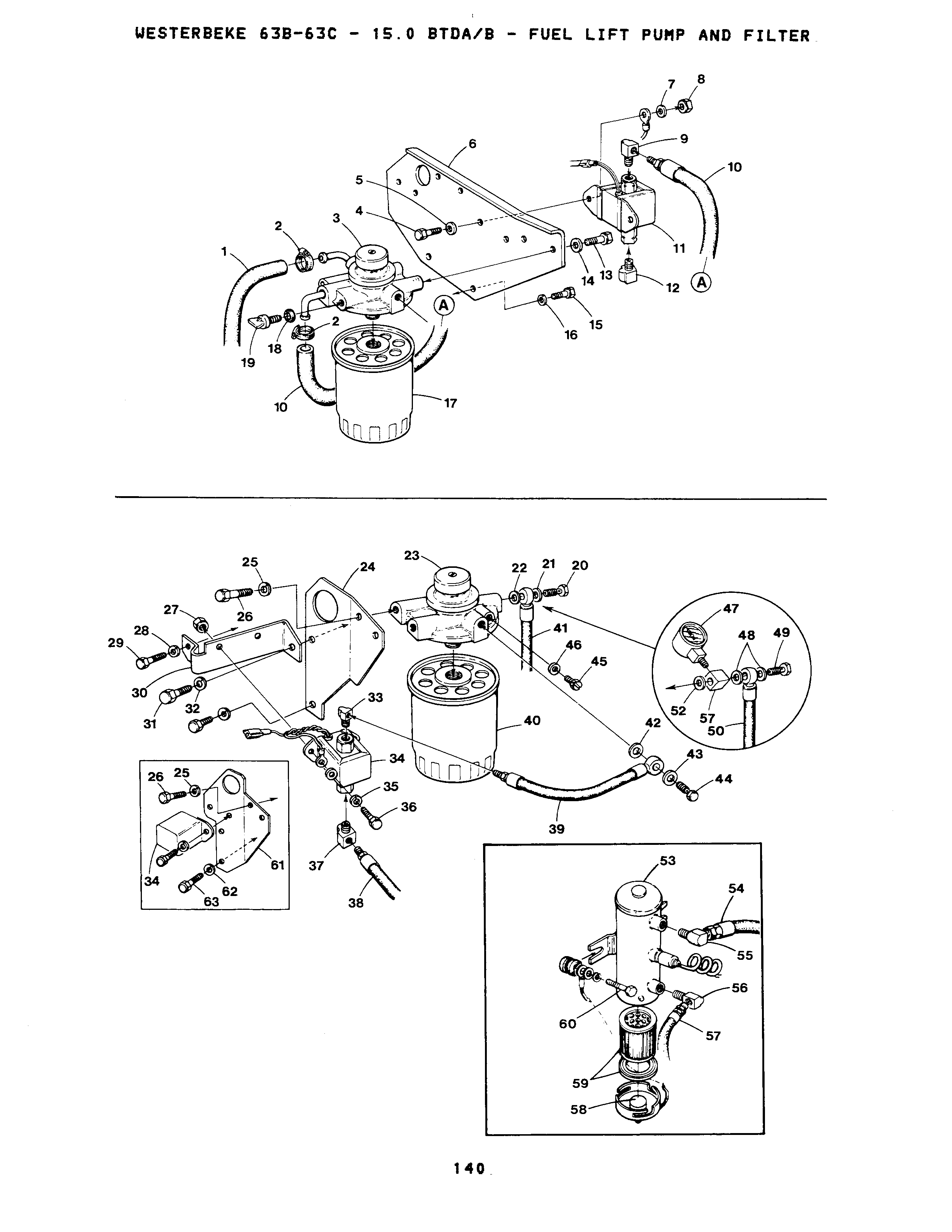

FUEL LIFT PUMP AND FILTER

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

HOSE

Part #: 040518

$81.20

QTY:

Sold By: EA

2

On Diagram

CLAMP

Part #: 024906

$2.00

QTY:

Sold By: EA

3

On Diagram

HOUSING

Part #: 043184

This part is no longer available.

$44.00

QTY:

Sold By: EA

4

On Diagram

CAPSCREW 1/4NCx5/8

Part #: 031502

$2.20

QTY:

Sold By: EA

5

On Diagram

WASHER

Part #: 031753

$0.20

QTY:

Sold By: EA

6-1

On Diagram

BRACKET

Part #: 039391

$46.00

QTY:

Sold By: EA

6-2

On Diagram

BRACKET

Part #: 039391

$46.00

QTY:

Sold By: EA

7

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752

$0.20

QTY:

Sold By: EA

8

On Diagram

NUT 1/4-20 NC

Part #: 031750

$0.40

QTY:

Sold By: EA

9

On Diagram

ELBOW

Part #: 022513

$15.40

QTY:

Sold By: EA

10

On Diagram

HOSE

Part #: 040517

$28.50

QTY:

Sold By: EA

11

On Diagram

PUMP

Part #: 039275

$258.00

QTY:

Sold By: EA

12

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340

$9.80

QTY:

Sold By: EA

13

On Diagram

CAPSCREW M10x1.25x25 D961 10.9

Part #: 036588

$20.40

QTY:

Sold By: EA

14

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262

$0.40

QTY:

Sold By: EA

15

On Diagram

CAPSCREW 5/16NFx3/4

Part #: 031578

$0.50

QTY:

Sold By: EA

16

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758

$0.20

QTY:

Sold By: EA

17

On Diagram

FILTER

Part #: 024363

$37.70

QTY:

Sold By: EA

18

On Diagram

O-RING

Part #: 043156

This part is no longer available.

$0.40

QTY:

Sold By: EA

19

On Diagram

SCREW

Part #: 043155

$1.90

QTY:

Sold By: EA

20

On Diagram

BOLT

Part #: 030139

$17.90

QTY:

Sold By: EA

21

On Diagram

WASHER

Part #: 030291

$9.90

QTY:

Sold By: EA

22

On Diagram

WASHER

Part #: 030290

$5.90

QTY:

Sold By: EA

23

On Diagram

FILTER

Part #: 024549

This part is no longer available.

Price not found

QTY:

Sold By: EA

24

On Diagram

BRACKET

Part #: 038614

$38.90

QTY:

Sold By: EA

25

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764

$0.30

QTY:

Sold By: EA

26

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630

$0.50

QTY:

Sold By: EA

27

On Diagram

NUT 1/4-20 NC

Part #: 031750

$0.40

QTY:

Sold By: EA

28

On Diagram

LOCKWASHER 5/16 MED

Part #: 031758

$0.20

QTY:

Sold By: EA

29

On Diagram

CAPSCREW 5/16NFx3-1/2

Part #: 031590

$1.20

QTY:

Sold By: EA

30

On Diagram

BRACKET

Part #: 033065

This part is no longer available.

Price not found

QTY:

Sold By: EA

31

On Diagram

CAPSCREW 3/8NFx1-1/2

Part #: 031632

$0.90

QTY:

Sold By: EA

32

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764

$0.30

QTY:

Sold By: EA

33

On Diagram

ELBOW

Part #: 022513

$15.40

QTY:

Sold By: EA

34

On Diagram

PUMP

Part #: 039275

$258.00

QTY:

Sold By: EA

35

On Diagram

WASHER

Part #: 031753

$0.20

QTY:

Sold By: EA

36

On Diagram

CAPSCREW 1/4NCx5/8

Part #: 031502

$2.20

QTY:

Sold By: EA

37

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340

$9.80

QTY:

Sold By: EA

38

On Diagram

HOSE

Part #: 030025

$115.70

QTY:

Sold By: EA

39-1

On Diagram

HOSE

Part #: 038606

$143.30

QTY:

Sold By: EA

39-2

On Diagram

HOSE

Part #: 034489

$145.30

QTY:

Sold By: EA

40

On Diagram

FILTER

Part #: 024363

$37.70

QTY:

Sold By: EA

41-1

On Diagram

HOSE

Part #: 038607

$119.00

QTY:

Sold By: EA

41-2

On Diagram

HOSE

Part #: 035027

$127.40

QTY:

Sold By: EA

42

On Diagram

WASHER

Part #: 030290

$5.90

QTY:

Sold By: EA

43

On Diagram

WASHER

Part #: 030291

$9.90

QTY:

Sold By: EA

44

On Diagram

BOLT

Part #: 030139

$17.90

QTY:

Sold By: EA

45

On Diagram

SCREW

Part #: 032868

This part is no longer available.

$13.90

QTY:

Sold By: EA

46

On Diagram

WASHER

Part #: 032869

$4.40

QTY:

Sold By: EA

47

On Diagram

METER

Part #: 035827

$82.30

QTY:

Sold By: EA

48

On Diagram

WASHER

Part #: 030291

$9.90

QTY:

Sold By: EA

49

On Diagram

BOLT

Part #: 035963

$39.80

QTY:

Sold By: EA

50

On Diagram

HOSE

Part #: 038607

$119.00

QTY:

Sold By: EA

51

On Diagram

BANJO

Part #: 035964

$44.10

QTY:

Sold By: EA

52

On Diagram

WASHER

Part #: 030290

$5.90

QTY:

Sold By: EA

53

On Diagram

PUMP

Part #: 033721

$716.90

QTY:

Sold By: EA

55

On Diagram

ELBOW

Part #: 022513

$15.40

QTY:

Sold By: EA

56

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340

$9.80

QTY:

Sold By: EA

57

On Diagram

HOSE

Part #: 030025

$115.70

QTY:

Sold By: EA

58

On Diagram

MAGNET

Part #: 033792

$9.60

QTY:

Sold By: EA

59

On Diagram

ELEMENT

Part #: 030548

$30.80

QTY:

Sold By: EA

60

On Diagram

CAPSCREW 1/4NCx1-1/4

Part #: 031506

$0.50

QTY:

Sold By: EA

61

On Diagram

BRACKET

Part #: 038795

This part is no longer available.

$40.50

QTY:

Sold By: EA

62

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764

$0.30

QTY:

Sold By: EA

63

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630

$0.50

QTY:

Sold By: EA
