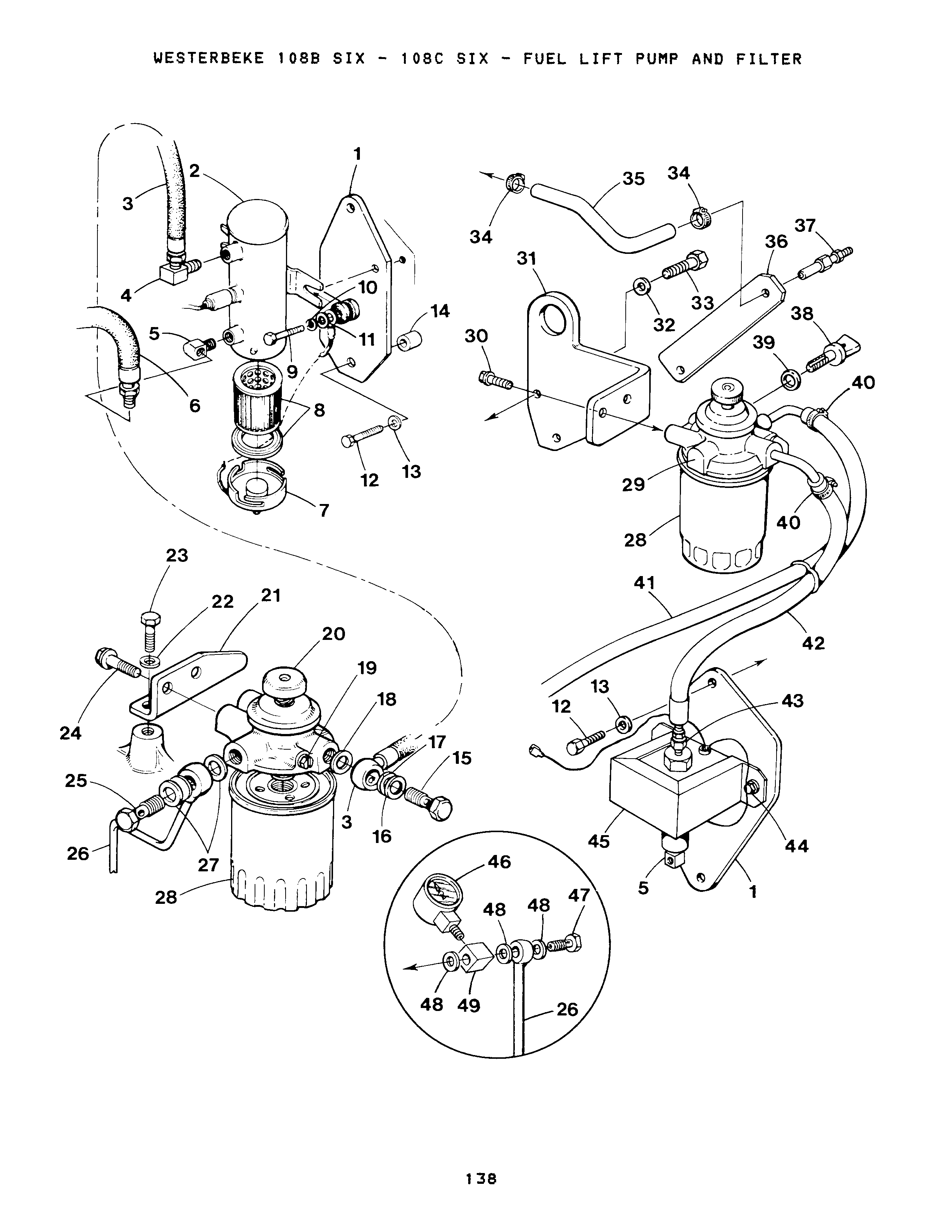

FUEL LIFT PUMP AND FILTER

Click the (+) and (-) buttons to zoom in and zoom out

Click on the name of any part to see details and important notes

Parts

1

On Diagram

BRACKET

Part #: 039077
$29.20
QTY:

Sold By: EA

2-1

On Diagram

PUMP

Part #: 024831

This part is replaced with part number 039275

Price not found
QTY:

Sold By: EA

2-2

On Diagram

PUMP

Part #: 033721
$716.90
QTY:

Sold By: EA

3

On Diagram

HOSE

Part #: 039094
$135.00
QTY:

Sold By: EA

4

On Diagram

ELBOW

Part #: 022513
$15.40
QTY:

Sold By: EA

5

On Diagram

ELBOW 1/8NPT STREET 90 BRASS

Part #: 013340
$9.80
QTY:

Sold By: EA

6

On Diagram

HOSE

Part #: 030025
$115.70
QTY:

Sold By: EA

7

On Diagram

MAGNET

Part #: 033792
$9.60
QTY:

Sold By: EA

8

On Diagram

ELEMENT

Part #: 030548
$30.80
QTY:

Sold By: EA

9

On Diagram

CAPSCREW 1/4NFx1

Part #: 031530
$0.50
QTY:

Sold By: EA

10

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

11

On Diagram

WASHER

Part #: 031753
$0.20
QTY:

Sold By: EA

12-1

On Diagram

CAPSCREW M10x40 DIN 933

Part #: 034590
$1.70
QTY:

Sold By: EA

12-2

On Diagram

CAPSCREW M10x55 DIN 933

Part #: 013631
$2.30
QTY:

Sold By: EA

13

On Diagram

LOCKWASHER M10 DIN 127

Part #: 019262
$0.40
QTY:

Sold By: EA

14

On Diagram

SPACER

Part #: 021722
$4.30
QTY:

Sold By: EA

15

On Diagram

BOLT

Part #: 030139
$17.90
QTY:

Sold By: EA

16

On Diagram

WASHER

Part #: 024972
$1.10
QTY:

Sold By: EA

17

On Diagram

WASHER

Part #: 030291
$9.90
QTY:

Sold By: EA

18

On Diagram

WASHER

Part #: 030290
$5.90
QTY:

Sold By: EA

19-1

On Diagram

SCREW

Part #: 032868

This part is no longer available.

$13.90
QTY:

Sold By: EA

19-2

On Diagram

WASHER

Part #: 032869
$4.40
QTY:

Sold By: EA

20

On Diagram

FILTER

Part #: 032696
$177.60
QTY:

Sold By: EA

21

On Diagram

BRACKET

Part #: 032785

This part is no longer available.

$15.80
QTY:

Sold By: EA

22

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

23

On Diagram

CAPSCREW

Part #: 031629
Price not found
QTY:

Sold By: EA

24

On Diagram

CAPSCREW M10x1.25x25 JIS-FLANG

Part #: 036215
$2.50
QTY:

Sold By: EA

25

On Diagram

BOLT

Part #: 024506
$6.80
QTY:

Sold By: EA

26

On Diagram

LINE

Part #: 032786
$55.00
QTY:

Sold By: EA

27

On Diagram

WASHER

Part #: 024498
$4.40
QTY:

Sold By: EA

28

On Diagram

FILTER

Part #: 024363
$37.70
QTY:

Sold By: EA

29

On Diagram

FILTER

Part #: 040722

This part is no longer available.

$58.50
QTY:

Sold By: EA

30

On Diagram

CAPSCREW M10x1.25x20 JIS-FLNGE

Part #: 033651
$7.00
QTY:

Sold By: EA

31

On Diagram

BRACKET

Part #: 040534
$91.80
QTY:

Sold By: EA

32

On Diagram

LOCKWASHER 3/8 MED

Part #: 031764
$0.30
QTY:

Sold By: EA

33

On Diagram

CAPSCREW 3/8NFx1

Part #: 031630
$0.50
QTY:

Sold By: EA

34

On Diagram

CLAMP

Part #: 040384
$3.50
QTY:

Sold By: EA

35

On Diagram

HOSE

Part #: 036869

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.60
QTY:

Sold By: IN

36

On Diagram

CONNECTOR ASSY

Part #: 039158
$48.30
QTY:

Sold By: EA

37

On Diagram

CONNECTOR

Part #: 013346
$4.70
QTY:

Sold By: EA

38

On Diagram

SCREW

Part #: 040734
$12.10
QTY:

Sold By: EA

39

On Diagram

WASHER

Part #: 040733
$6.10
QTY:

Sold By: EA

40

On Diagram

CLAMP

Part #: 024906
$2.00
QTY:

Sold By: EA

41

On Diagram

HOSE

Part #: 022927

ATTENTION - IMPORTANT: This hose is sold by the INCH. Please be sure to order the correct number of INCHES you require.

$0.80
QTY:

Sold By: IN

42

On Diagram

HOSE

Part #: 040538
$85.40
QTY:

Sold By: EA

43

On Diagram

CONNECTOR

Part #: 015289
$10.90
QTY:

Sold By: EA

44-1

On Diagram

CAPSCREW 1/4NFx1/2

Part #: 031526
$0.40
QTY:

Sold By: EA

44-2

On Diagram

LOCKWASHER 1/4 MED

Part #: 031752
$0.20
QTY:

Sold By: EA

45

On Diagram

PUMP

Part #: 039275
$258.00
QTY:

Sold By: EA

46-1

On Diagram

PLUG 1/8 NPT HEX HEAD BRASS

Part #: 019369
$4.50
QTY:

Sold By: EA

46-2

On Diagram

METER

Part #: 035827
$82.30
QTY:

Sold By: EA

47

On Diagram

BOLT

Part #: 035950
$47.80
QTY:

Sold By: EA

48

On Diagram

WASHER

Part #: 030290
$5.90
QTY:

Sold By: EA

49

On Diagram

BANJO

Part #: 035949
$48.20
QTY:

Sold By: EA
